LJA36400CU43X - Schneider Electric 400A 3-pole, 600 Vac, I-Line, Micrologic 5.xA LSI with ammeter

SKU: LJA36400CU43X-New
Condition: New
Price:
$9,954.96
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

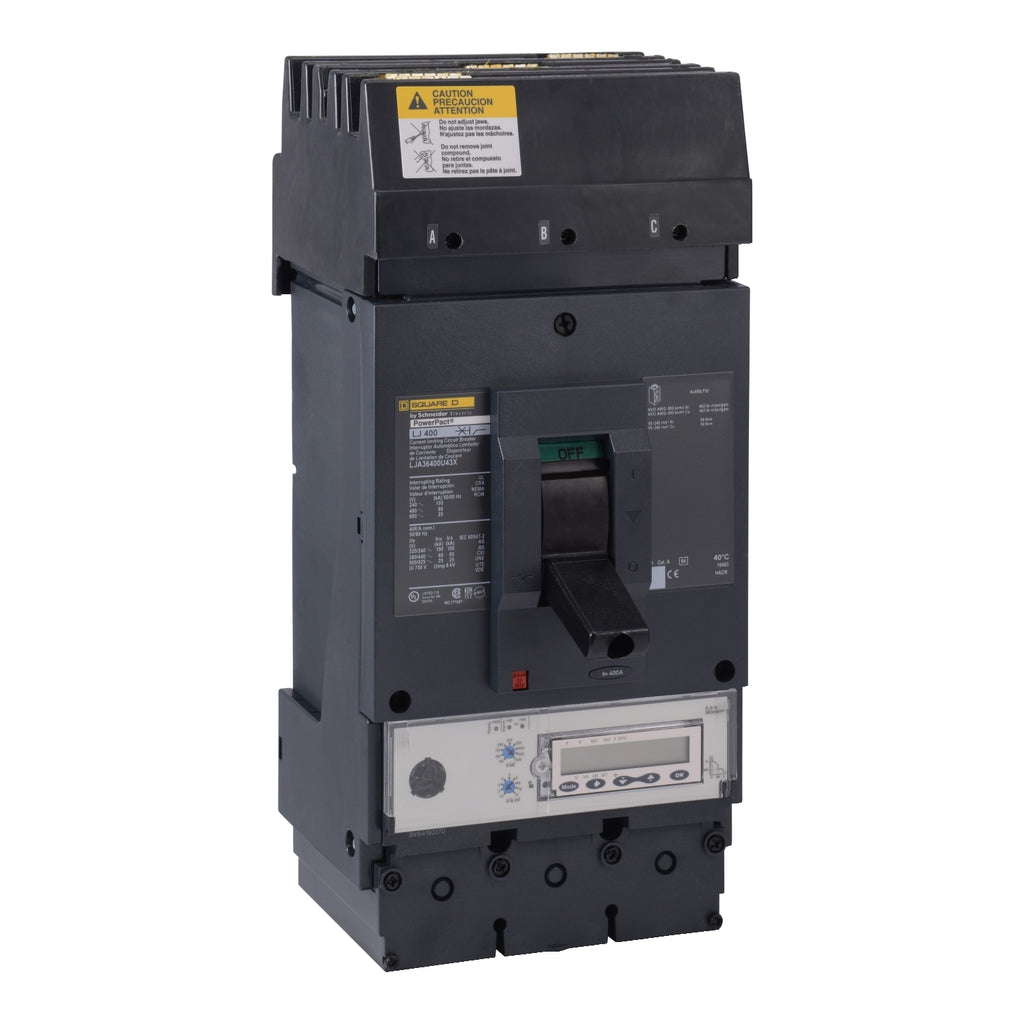

LJA36400CU43X - Square D I-Line Style Plug-In 600V 400A 3 pole circuit breaker 65kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
LJA36400CU43X - Square D I-Line Style Plug-In 600V 400A 3 pole circuit breaker 65kA@480V - Essential Electric Supply

Description

LJA36400CU43X


LJA36400CU43X is a PowerPact L-Frame 400A 3-pole molded case circuit breaker for 600 Vac I-Line applications, providing electronic protection with Micrologic 5.xA LSI with ammeter. This LJA catalog variant features I-Line plug-on line terminations and load-side lugs for straightforward panelboard integration. Suffix decoding is included below to document the exact trip unit and factory options for this configured breaker.
  • Frame: PowerPact L-Frame
  • Poles: 3-pole
  • Amperage: 400 A
  • Voltage: 600 Vac
  • Construction: I-Line line side, load lugs standard
  • Trip unit: Micrologic 5.xA LSI with ammeter
Suffix meanings in this catalog number
  • 100% rated continuous current (code C)
  • I-Line plug-on line side; mechanical lugs on load side
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Terminal lug AL600LS52K3


Specifications

  • Part Number: LJA36400CU43X
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : LJA
  • Voltage : 600
  • Amperage : 400
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LSI - Long-Time, Short-Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : L Frame
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • Breaker Type : 100% rated
  • Protection : Solid State

Product Data

  • UPC : 785901955108
  • GTIN : 00785901955108
  • Country of Origin : United States
  • Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
  • Weight : 17
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
