KLDR005.TXP - Littelfuse 5A 600VAC/300VDC Time Delay Class CC Cartridge Fuse

KLDR005.TXP

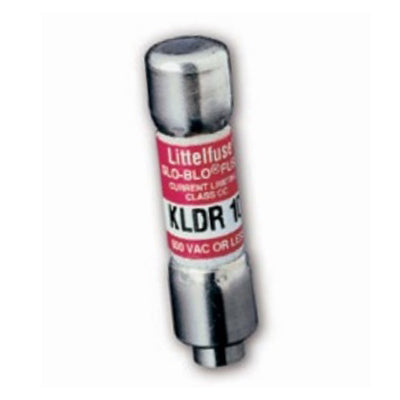

KLDR005.TXP is a Littelfuse 5 ampere, 600 VAC/300 VDC time delay Class CC cartridge fuse designed for industrial and power applications.

This fuse features a time-delay blow characteristic allowing temporary current surges without blowing, making it ideal for transformer and solenoid protection. It has a compact size of 10.3mm x 38.1mm (0.41" x 1.5"), requires a fuse holder for mounting, and offers a high interrupting rating of 200,000 A at 600 VAC and 20,000 A at 300 VDC. The fuse body is made of melamine with nickel-plated bronze end caps, and it complies with UL 248-4 standards and RoHS requirements.

• Amperage: 5A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Size: 10.3mm x 38.1mm (0.41" x 1.5")
• Blow Characteristic: Time Delay
• Interrupt Rating: 200,000 A at 600 VAC, 20,000 A at 300 VDC
• Fuse Type: Class CC Cartridge
• Mounting Type: Requires Holder
• Material: Melamine Body, Nickel-plated Bronze Caps
• Certifications: UL 248-4, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLDR005.TXP
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 5
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 07945879263
• GTIN : 00079458792638
• Country of Origin : Mexico
• Weight : 5.19
