Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
LHL364001037

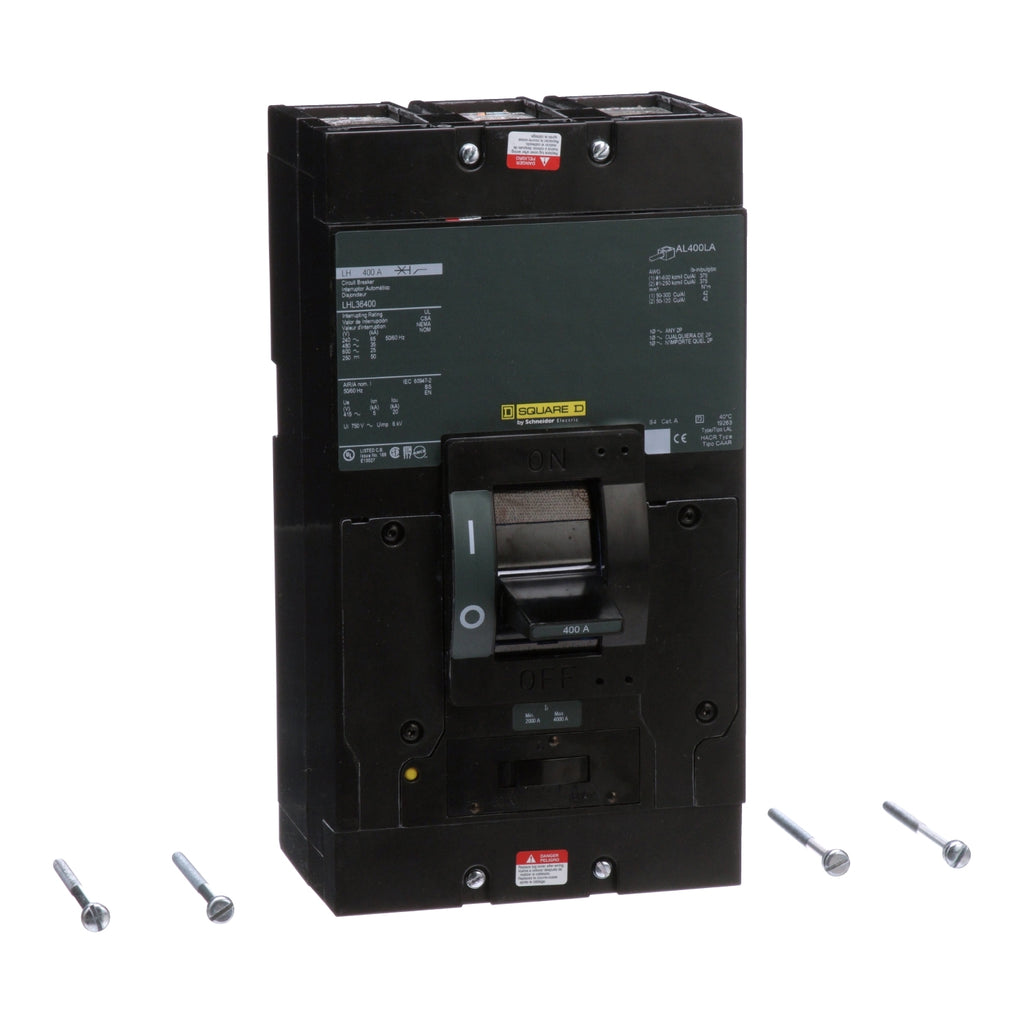

LHL364001037 is a 400 amp, 600 volt, 3-pole I-Line molded case circuit breaker by Square D with thermal magnetic trip protection.This circuit breaker features a 25kA interrupting rating at 600VAC, plug-on installation for I-Line panelboards and switchboards, and a 6 inch mounting height. It provides reliable overload and short circuit protection with thermal sensing for overload and magnetic sensing for short circuit in each pole. The breaker supports wire sizes from 1 AWG to 600 KCMIL copper or aluminum.
- Key Specifications
- Amperage: 400A
- Voltage Rating: 600VAC
- Poles: 3
- Interrupt Rating: 25kA at 600VAC
- Mounting Type: Plug-on I-Line
- Frame Type: L
- Trip Unit: Thermal Magnetic
- Mounting Height: 6 inch
- Wire Size Range: 1 AWG to 600 KCMIL
- Brand: Square D
- Series: I-Line
- Part Number: LHL364001037
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LHL Series
- Type : LHL
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Dimensions : Depth 42.13 in (107 cm) Width 31.50 in (80 cm) Height 78.39 in (199.1 cm)
- Weight : 20
Additional Information
complete with 277/480Vac shunt trip
