Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
LHL3630026DC

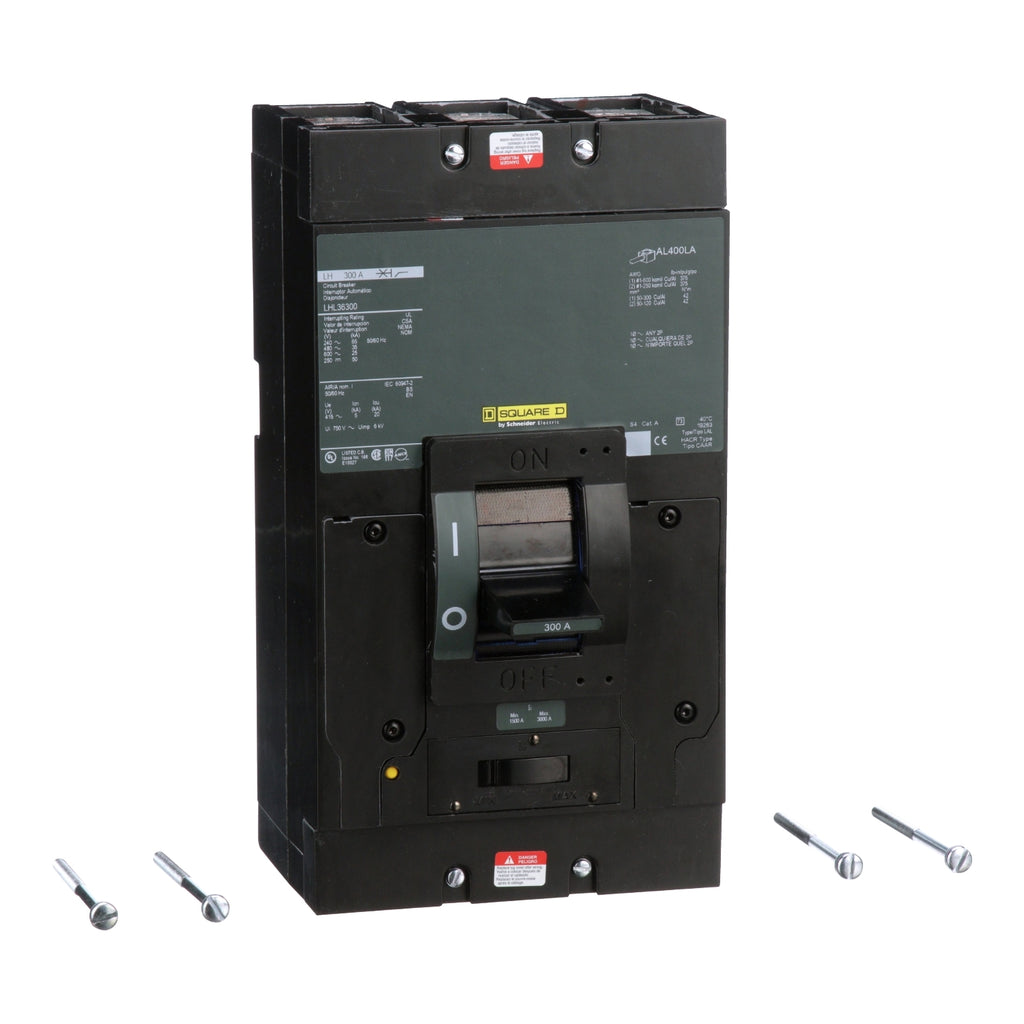

LHL3630026DC is a 3-pole, 300 amp, 600 volt thermal magnetic molded case circuit breaker from Square D designed for reliable circuit protection in industrial applications.This circuit breaker features a 3-pole configuration with a 300A frame current rating and is rated for 600V AC operation. It has a thermal magnetic trip unit providing both overload and short circuit protection. The breaker supports a 20kA interrupting rating at 500V DC and is suitable for feed-thru mounting. It meets UL, CSA, and CE certifications, ensuring compliance with industry safety standards.
- Amperage: 300A
- Voltage Rating: 600V AC
- Poles: 3
- Trip Unit: Thermal Magnetic
- Interrupting Rating: 20kA at 500V DC
- Mounting Type: Feed-Thru
- Frame: LH Series
- Certifications: UL, CSA, CE
- Manual toggle operation
- Designed for industrial circuit protection
Specifications
- Part Number: LHL3630026DC
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : LHL Series
- Type : LHL
- Voltage : 600
- Amperage : 300
- Phase : 3
- Poles : 3
- AIC rating : 20kA@500VDC
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Dimensions : Depth 17.75 in (450.85 mm) Width 36.62 in (930.15 mm) Height 69.13 in (1755.90 mm)
- Weight : 20
