LHF36250 - Square D 250 Amp 600 Volt 3 Pole Thermal Magnetic Molded Case Circuit Breaker Bolt-On

LHF36250

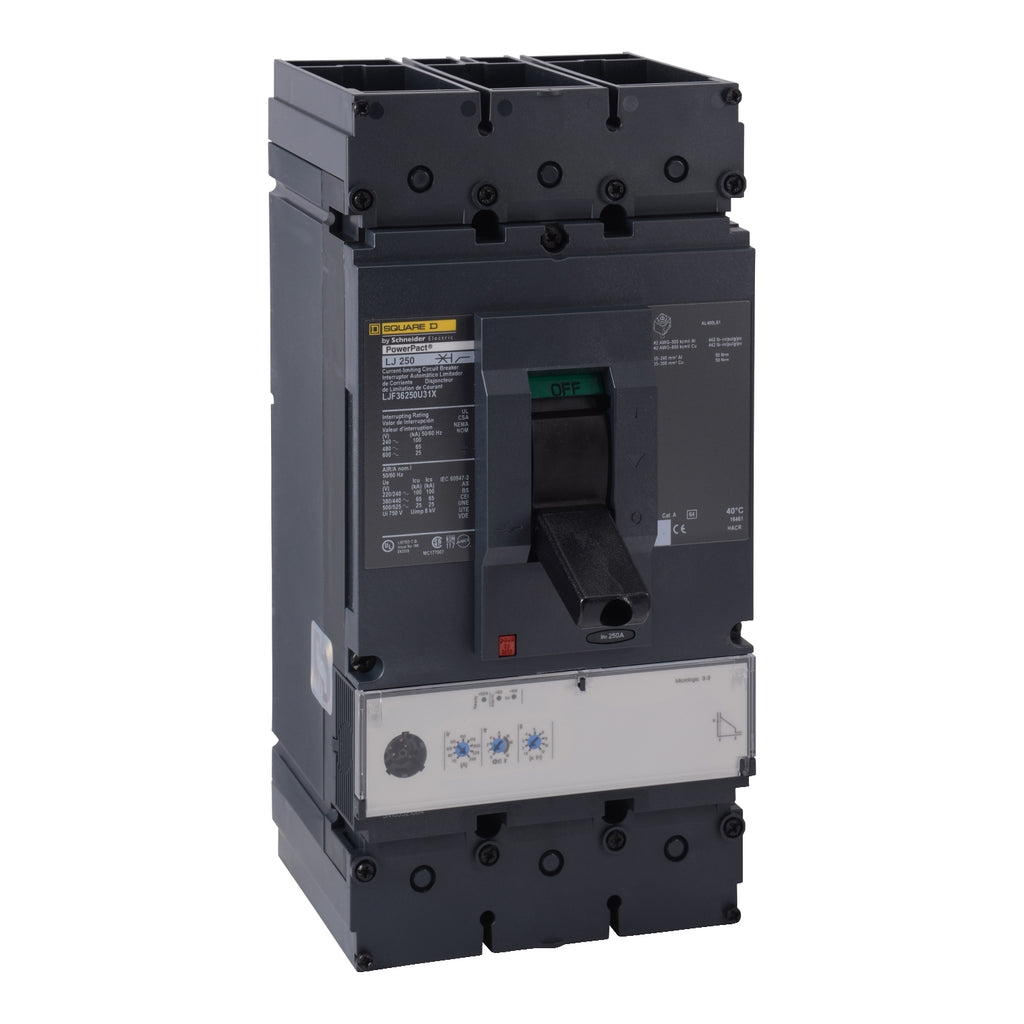

LHF36250 is a Square D 3 pole, 250 amp, 600 volt thermal magnetic molded case circuit breaker with bolt-on mounting.

This circuit breaker features a thermal magnetic trip unit with LI - long-time and instantaneous trip functions. It is designed for power distribution applications and provides reliable protection with a high interrupting rating. The breaker supports a 600 VAC and 250 VDC voltage rating and is UL and CSA approved. It is part of the LHF series and includes a bolt-on connection type suitable for panelboards and switchboards.

• Amperage: 250 Amp
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 35 kA at 480V
• Trip Unit: Thermal Magnetic with LI - Long-Time and Instantaneous
• Series/Frame: LHF
• Approvals: UL, CSA
• Application: Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: LHF36250
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : LHF Series
• Type : LHF
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 4 in (101.60 mm) Width 6 in (152.40 mm) Height 12.5 in (317.50 mm)
• Weight : 20
