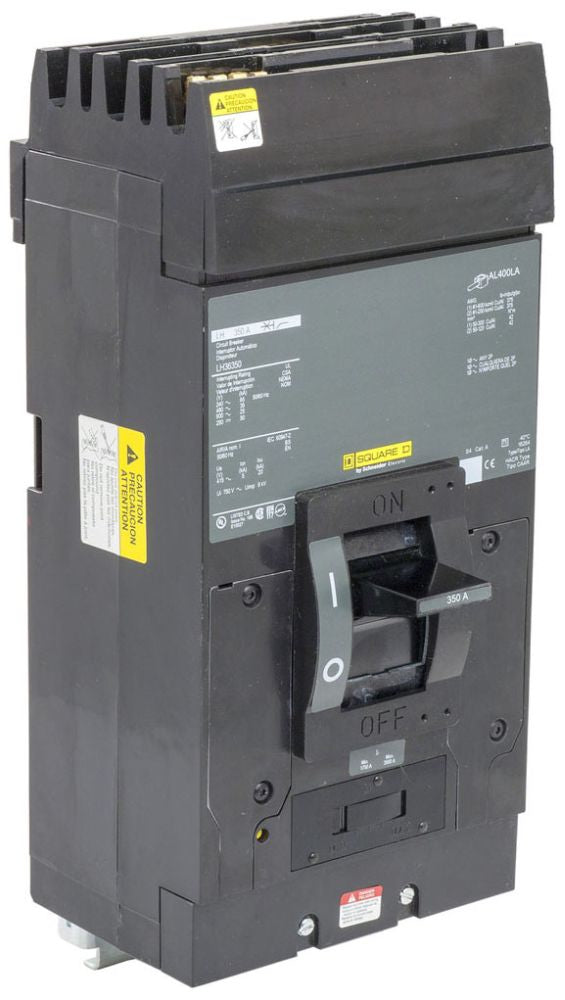

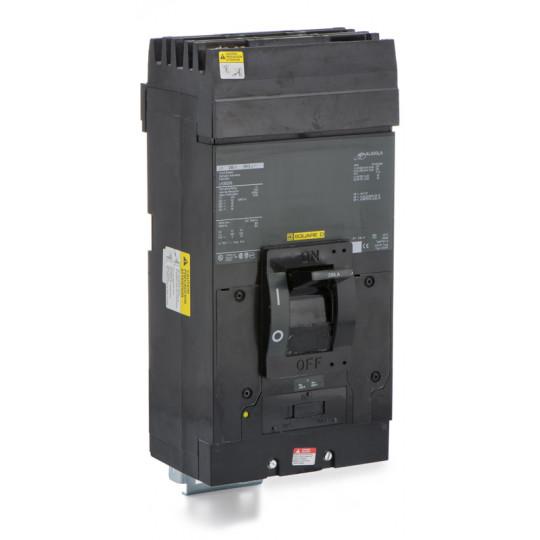

LH36250 - Square D 250 Amp 600V 3 Pole I-Line Molded Case Circuit Breaker

LH36250

LH36250 is a Square D 3 Pole molded case circuit breaker rated for 250 Amps and 600 Volts AC with I-Line plug-in mounting.This thermal magnetic circuit breaker features a 35kA interrupting rating at 480V, long-time and instantaneous trip functions (LI), and UL and CSA certifications. It is designed for use in I-Line panelboards and switchboards, providing reliable protection for power distribution applications.

• Manufacturer: Square D
• Series/Frame: LH
• Amperage: 250A
• Voltage Rating: 600VAC, 250VDC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupting Rating: 35kA at 480V
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Approvals: UL, CSA
• Connection Type: Load Side Lug
• Standards: RoHS, HACR
• Dimensions (LxWxH): 4 x 6 x 12.5 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LH36250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LH
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901339403
• GTIN : 00785901339403
• Country of Origin : Mexico
• Dimensions : 12.5 in (317.5 mm) x 6 in (152.4 mm) x 4 in (101.6 mm) (Height x Width x Depth)
• Weight : 17.97
