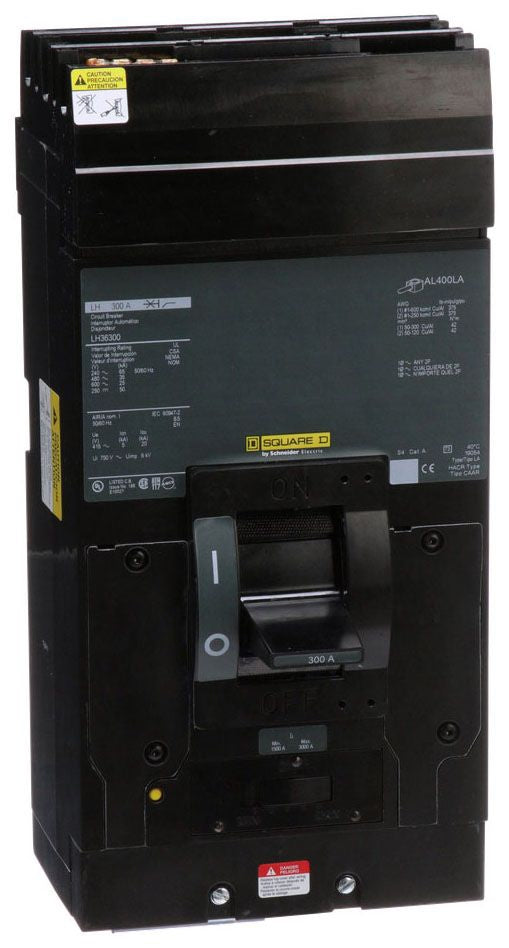

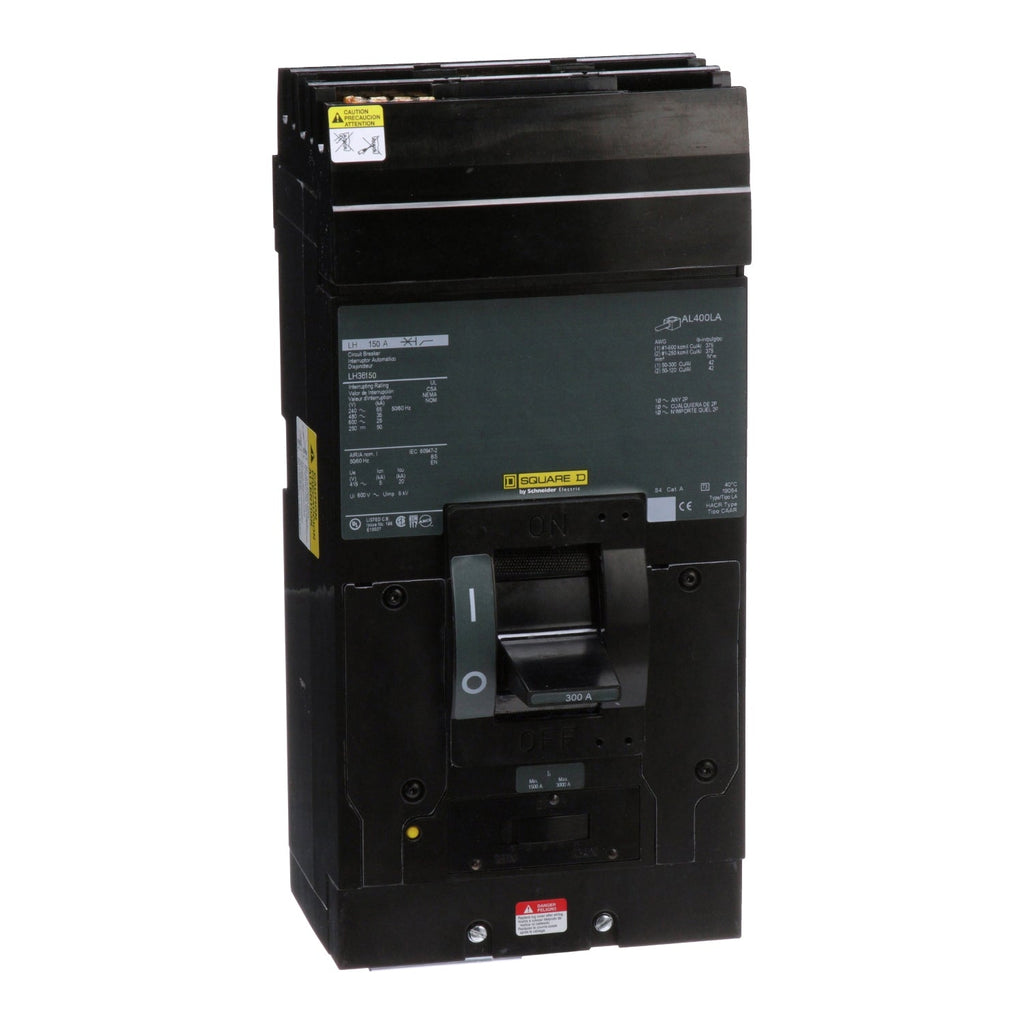

LH36150 - Square D 150 Amp 600 Volt 3 Pole I-Line Molded Case Circuit Breaker

LH36150

LH36150 is a Square D I-Line molded case circuit breaker rated for 150 Amps, 600 Volts, and 3 poles. It features a thermal magnetic trip unit and plug-in mounting style.

This circuit breaker is designed for high interrupting capacity applications with a 35kA interrupt rating at 480V. It has an ABC phase configuration and includes long-time and instantaneous trip functions. The breaker is part of the LH series I-Line frame, suitable for 3-phase power distribution systems requiring reliable protection and plug-in installation.

Key Specifications
• Manufacturer: Square D
• Amperage: 150 Amps
• Voltage: 600 Volts AC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 35kA at 480V
• Series/Frame: LH (I-Line)
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
• Phase Configuration: ABC
• Certifications: OEM authentic Square D product

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LH36150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LH
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : L Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901697732
• GTIN : 00785901697732
• Country of Origin : Mexico
• Dimensions : 12.5 in (317.5 mm) x 6 in (152.4 mm) x 4 in (101.6 mm) (Height x Width x Depth)
• Weight : 17.97
• Certification : UL, CSA
• Wire Size : AWG 1, 600 kcmil Aluminium/Copper)1, AWG 1, 250 kcmil Aluminium/Copper)2
