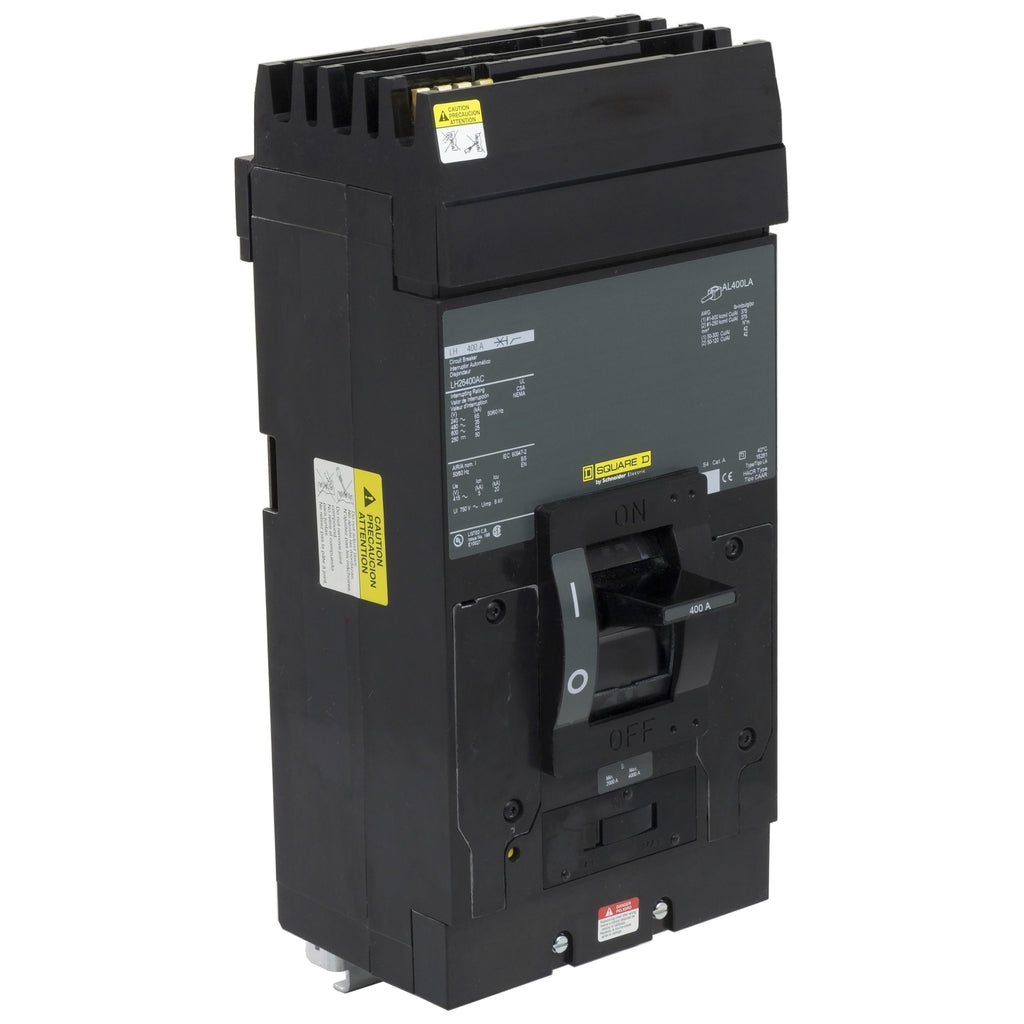

LH26400AB - Square D 400A 600V 2-Pole Molded Case Circuit Breaker Class 655/660/670/830 I-LINE

LH26400AB

LH26400AB is a 2-pole, 400 amp, 600 volt molded case circuit breaker from Square D designed for reliable power distribution protection.This Square D LH26400AB circuit breaker features a 400 amp frame and trip rating, suitable for use in Class 655/660/670/830 I-LINE panelboards and switchboards. It has a 2-pole configuration and a high interrupt rating of 35kA at 480V, ensuring robust fault current interruption. The breaker is UL and CSA certified, compatible with thermal-magnetic trip units, and supports both AC and DC voltages up to 600V AC and 250V DC.

Key Specifications
• Amperage: 400A
• Voltage Rating: 600V AC, 250V DC
• Poles: 2
• Interrupt Rating: 35kA @ 480V, 65kA @ 240V, 25kA @ 600V
• Mounting Type: I-LINE
• Series/Frame: Class 655/660/670/830
• Trip Unit: Thermal-Magnetic
• Certifications: UL, CSA
• Application: Power Distribution
• Manufacturer: Square D by Schneider Electric
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LH26400AB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : LH
• Voltage : 600
• Amperage : 400
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• UPC : 785901358718
• GTIN : 00785901358718
• Country of Origin : Mexico
• Dimensions : 11 in (279.4 mm) x 6 in (152.4 mm) x 5.84 in (148.34 mm) (Height x Width x Depth)
• Weight : 15.95
