LGS3630NN - Cutler Hammer 630A 600V 3 Pole Molded Case Circuit Breaker Frame Only Series G

LGS3630NN

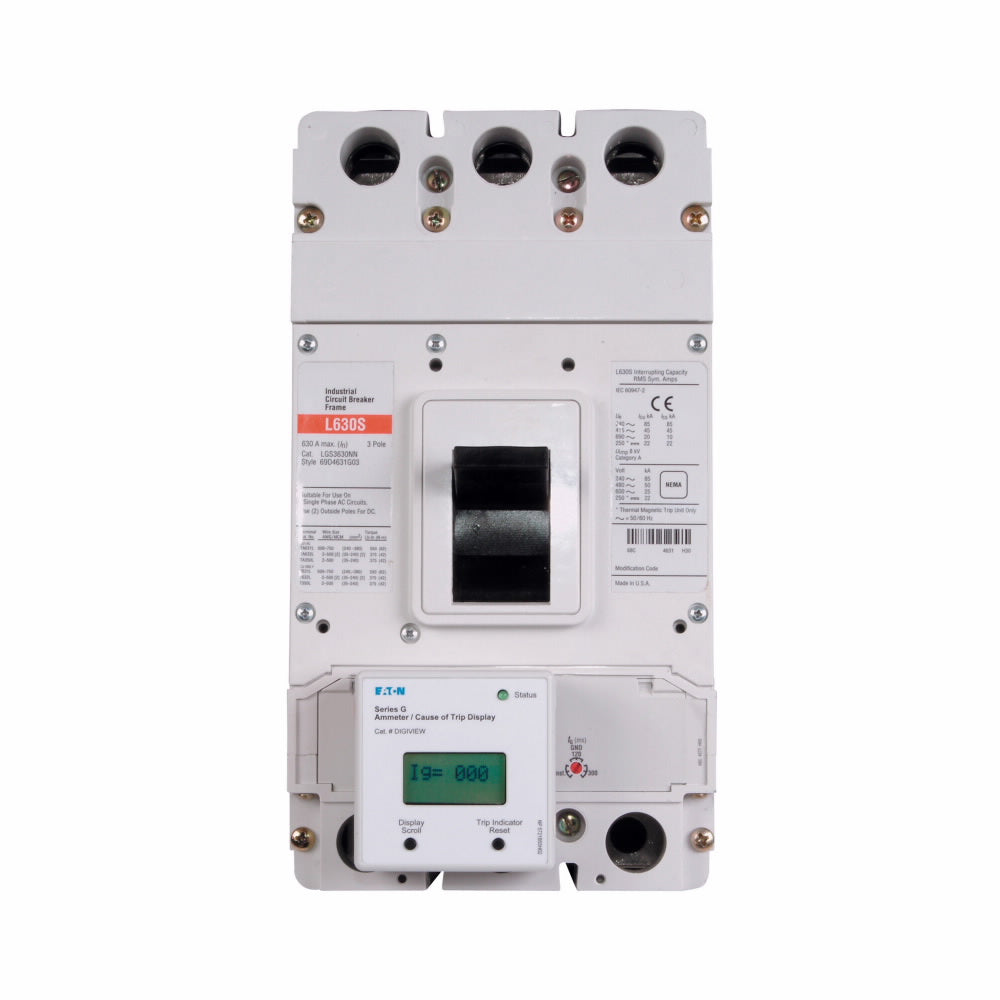

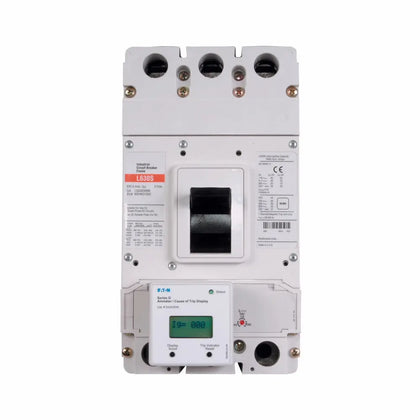

LGS3630NN is a Cutler Hammer molded case circuit breaker frame rated for 630 amps and 600 volts with 3 poles, designed for panel mounting.This Series G Type LGS breaker frame supports a high interrupt rating of 85kA at 240V, 50kA at 480V, and 25kA at 600V. It is a frame-only unit without a trip unit included, suitable for use in heavy-duty power distribution applications requiring reliable circuit protection.

• Amperage: 630A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 85kA at 240V, 50kA at 480V, 25kA at 600V
• Series/Frame: Series G, LG Frame
• Mounting Type: Panel Mount
• Trip Unit: Frame Only (no trip)
• Manufacturer: Cutler Hammer (Eaton)
• Type: Molded Case Circuit Breaker Frame

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.

Specifications

• Part Number: LGS3630NN
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : LGS
• Voltage : 600
• Amperage : 630
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782116336166
• GTIN : 00782116336166
• Country of Origin : United States
• Dimensions : 4.09 in x 10.13 in x 5.48 in (Length/Depth x Height x Width)
• Weight : 16
• Certification : CSA Certified,IEC Rated,UL Listed,CE Marked
