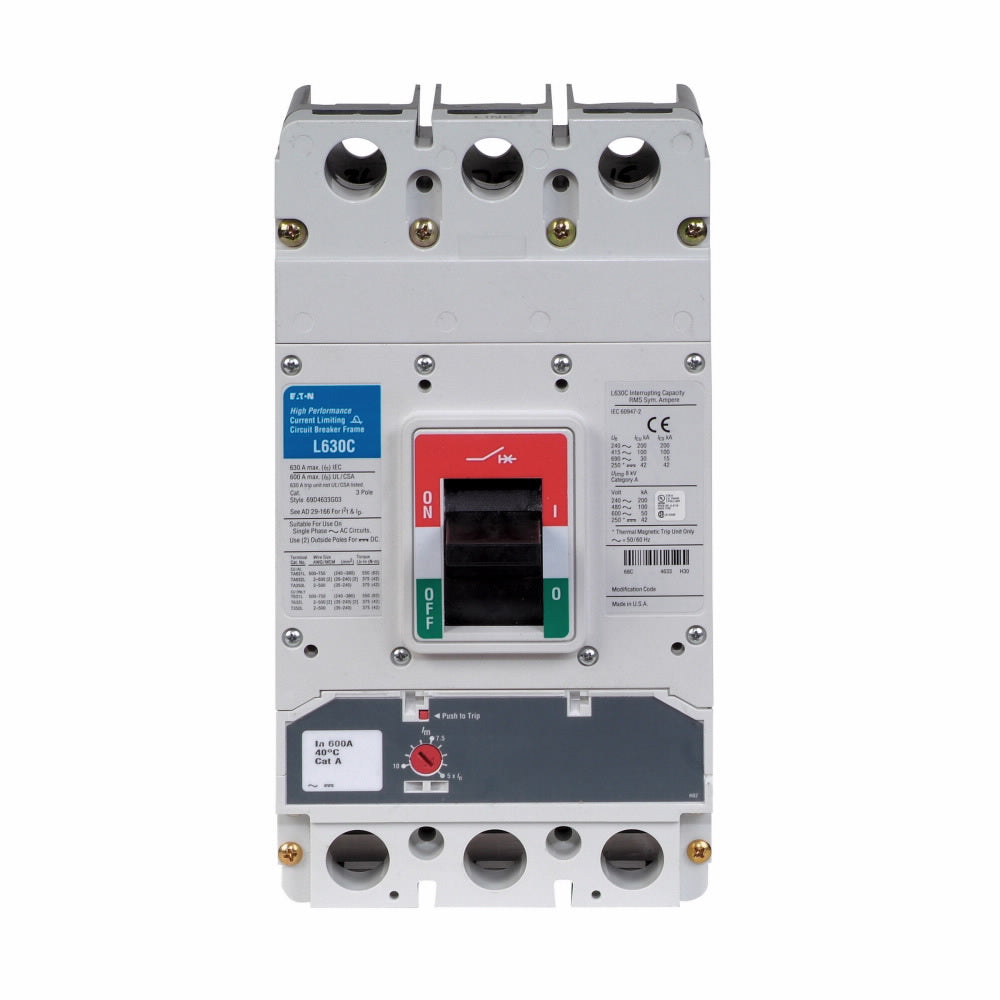

LGS3500FAG - Cutler Hammer 500A 600V 3 Pole Molded Case Circuit Breaker LG Frame Fixed Thermal Adjustable Magnetic Trip

LGS3500FAG

LGS3500FAG is a Cutler Hammer molded case circuit breaker designed for reliable protection in industrial power distribution systems. This 3 pole, 500A, 600V breaker features a fixed thermal and adjustable magnetic trip unit for precise overload and short circuit protection. The LG frame breaker is panel mountable and includes line and load side lug terminals for easy installation. Engineered for durability and safety, the LGS3500FAG is suitable for applications requiring high interrupting capacity and robust performance. It is certified to UL, CSA, and CE standards, ensuring compliance with industry requirements. The breaker is ideal for use in commercial and industrial environments where dependable circuit protection is essential.

• Part Number: LGS3500FAG
• Manufacturer: Cutler Hammer
• Amperage: 500A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Panel Mount
• Interrupt Rating: 85kAIC @ 240VAC, 50kAIC @ 480VAC
• Series/Frame: LG
• Triple Unit: Fixed Thermal, Adjustable Magnetic
• Terminals: Line and Load Side Lug
• Certifications: UL, CSA, CE
• Application: Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGS3500FAG
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : LGS
• Voltage : 600
• Amperage : 500
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782116142590
• GTIN : 00782116142590
• Country of Origin : United States
• Dimensions : 5.48 in x 5.48 in x 5.48 in (Length/Depth x Height x Width)
• Weight : 16
• Certification : UL Listed,IEC Rated,CSA Certified,CE Marked
