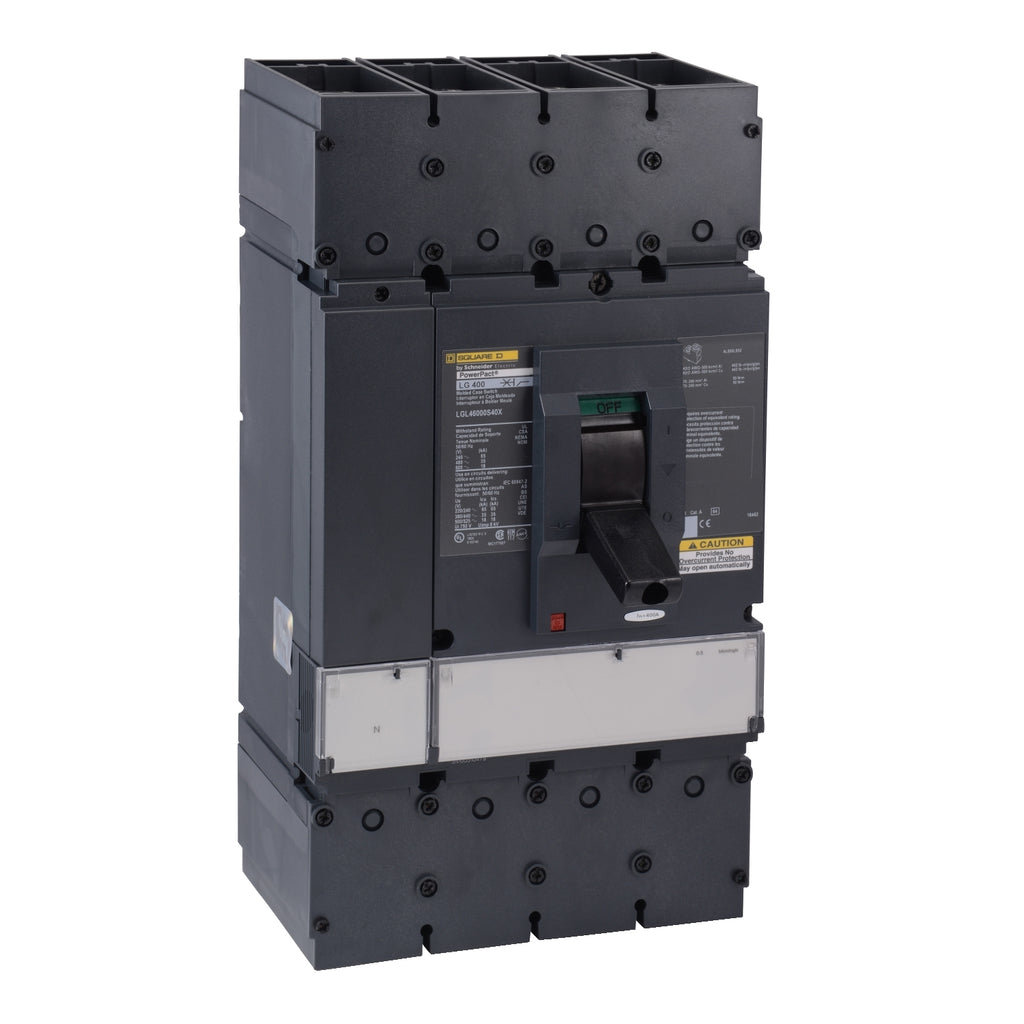

LGL46000S40X - Schneider Electric PowerPact L 400A 4-Pole 600V Circuit Breaker Feed-Thru 35kA AIC

LGL46000S40X

LGL46000S40X is a Schneider Electric PowerPact L molded case circuit breaker rated for 400 amps and 600 volts with 4 poles and feed-thru connection.This circuit breaker features a 35kA interrupting rating at 480V, L-Frame construction, and unit mount installation. It provides reliable non-automatic protection for industrial and commercial power distribution applications. The breaker is UL and CSA certified and designed for use in PowerPact L series switchgear.

• Amperage: 400 A
• Voltage Rating: 600 V AC
• Poles: 4
• Mounting Type: Unit mount
• Interrupt Rating: 35kA at 480 V
• Series/Frame: PowerPact L-Frame
• Connection Type: Feed-Thru
• Trip Unit: Magnetic (non-automatic)
• Certifications: UL Listed, CSA Certified
• Dimensions: Approx. 13.38 in x 5.51 in x 6.61 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGL46000S40X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGL
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : NA - No Overcurrent Protection
• Terminal Connection : Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Protection : Solid State

Product Data

• UPC : 7.85902E+11
• Dimensions : 13.38 in (339.85 mm) x 5.51 in (139.95 mm) x 6.61 in (167.89 mm) (Height x Width x Depth)
• Weight : 15
• Standards : UL, CSA, NEMA, NOM, IEC
• Certification : UL, CSA, NEMA, NOM, IEC
• Wire Size : x AWG 2/0...500 kcmil ( aluminium/copper )
