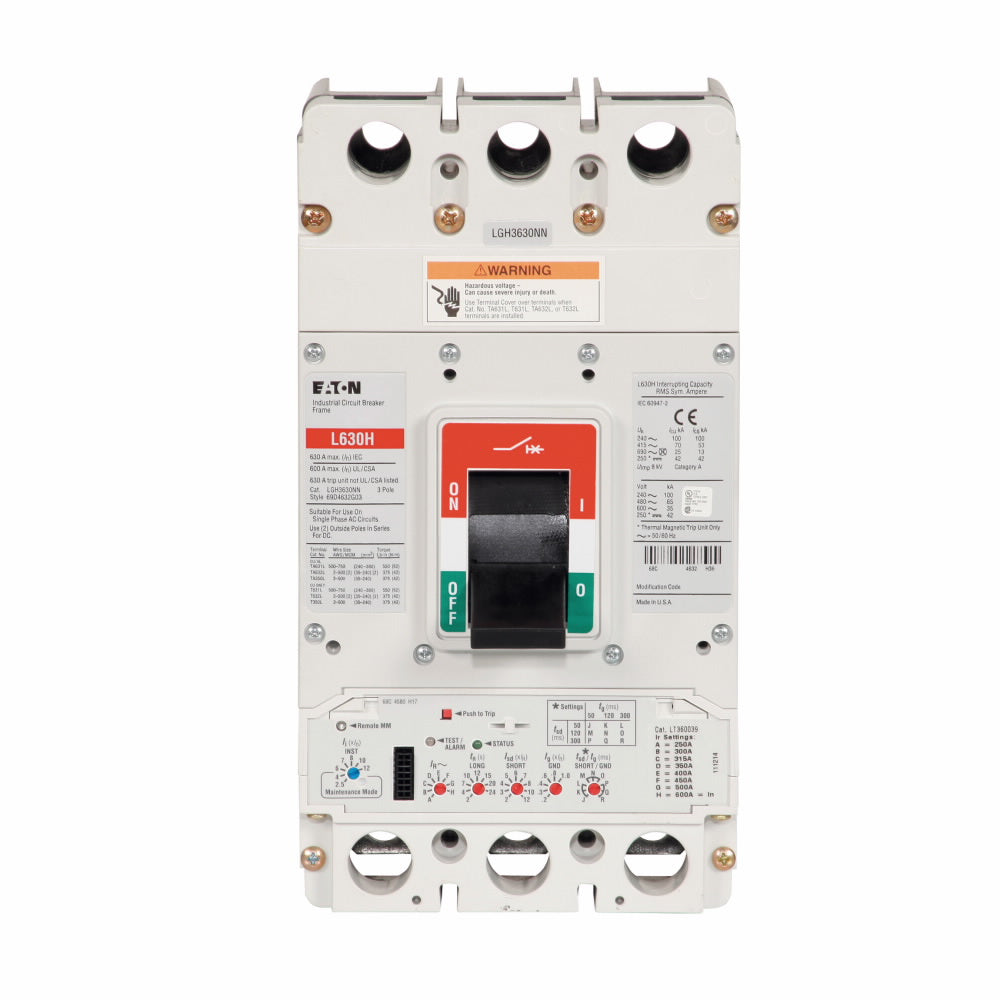

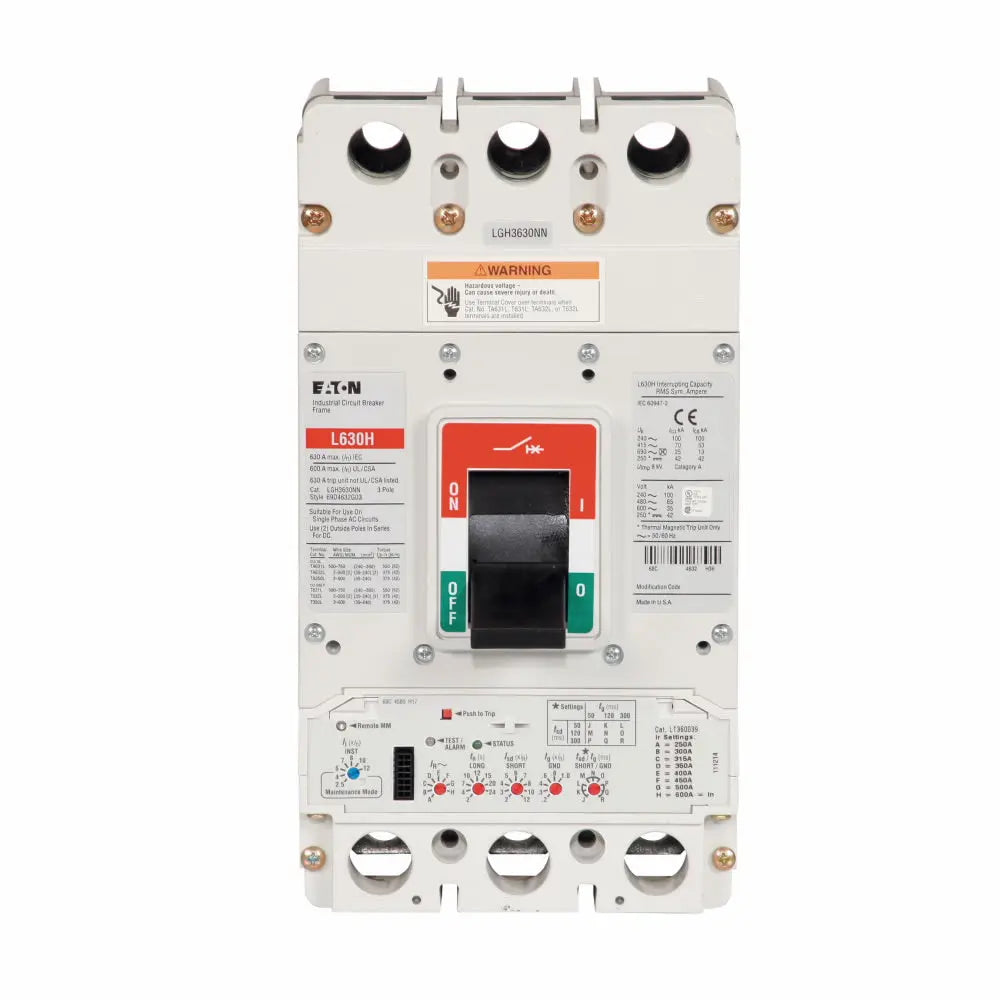

LGH3630NNWC - Cutler Hammer 630A 600V 3-Pole Molded Case Circuit Breaker Frame J-K Series G Bolt-On

LGH3630NNWC

LGH3630NNWC is a Cutler Hammer molded case circuit breaker accessory frame designed for high-performance electrical protection.

This 3-pole frame-only breaker supports 630 amps at 600 volts and features a bolt-on mounting type. It belongs to Eaton's Series G, Frame J-K, and offers thermal magnetic protection with a trip type T191. The breaker has a high interrupt rating of up to 100 kAIC at 240 V, 70 kAIC at 415 V, 65 kAIC at 480 V, and 35 kAIC at 600 V, ensuring reliable fault current interruption. It is UL listed and IEC certified for safety and quality compliance.

• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 630 A
• Voltage Rating: 600 V
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 100 kAIC @ 240 V, 70 kAIC @ 415 V, 65 kAIC @ 480 V, 35 kAIC @ 600 V
• Series/Frame: Series G, Frame J-K
• Trip Unit: T191 Thermal Magnetic
• Certifications: UL Listed, IEC Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.

Specifications

• Part Number: LGH3630NNWC
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : LGH
• Voltage : 600
• Amperage : 630
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786685004617
• GTIN : 00786685004617
• Country of Origin : United States
• Dimensions : 4.09 in x 7.25 in x 5.48 in (Length/Depth x Height x Width)
• Weight : 11.9
• Certification : CSA Certified,IEC Rated,UL Listed,CE Marked
