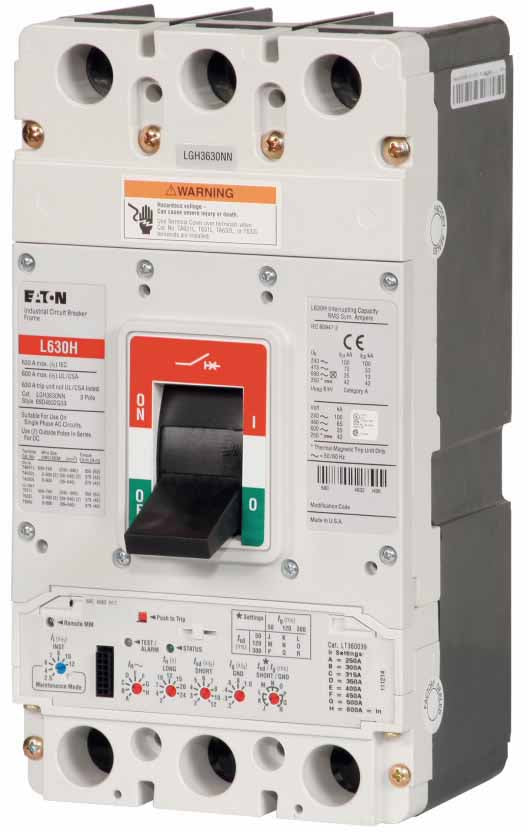

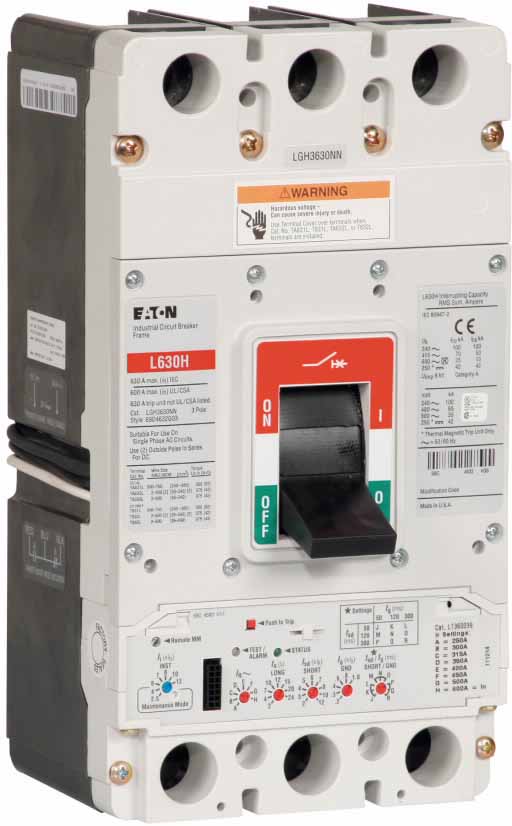

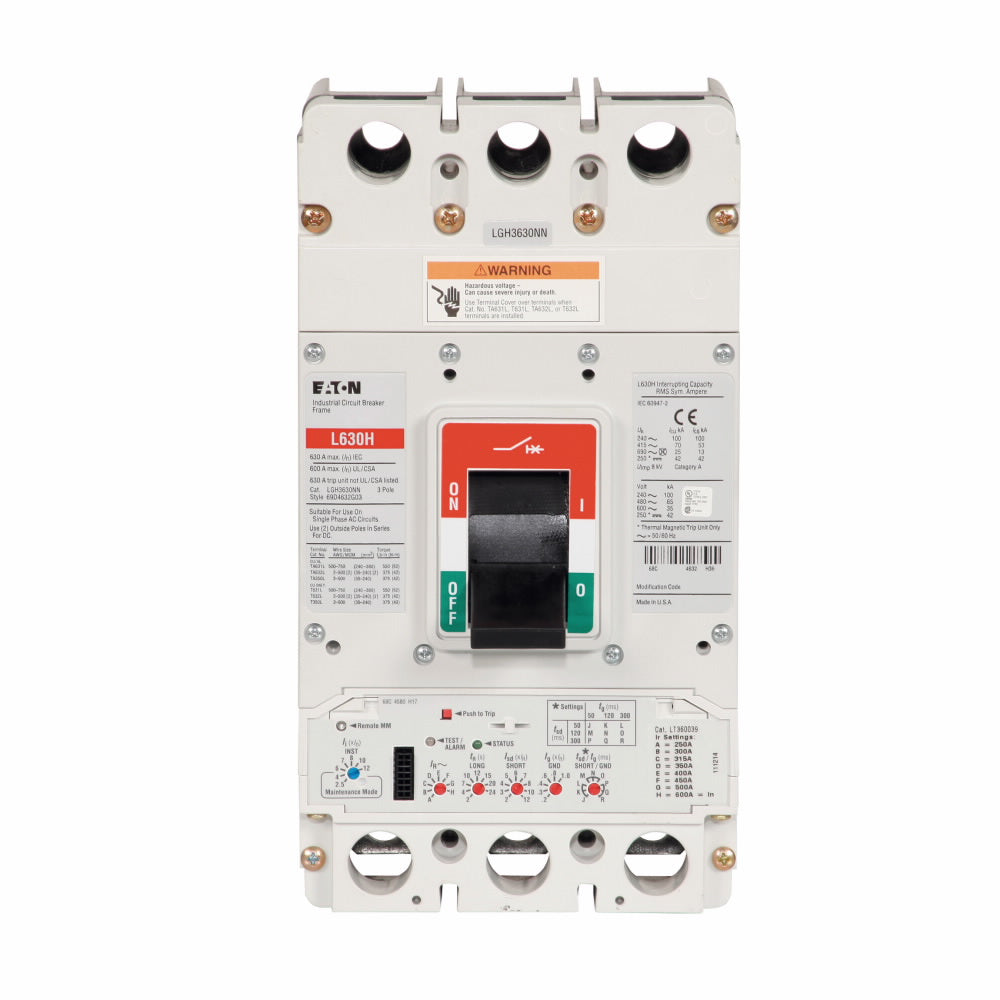

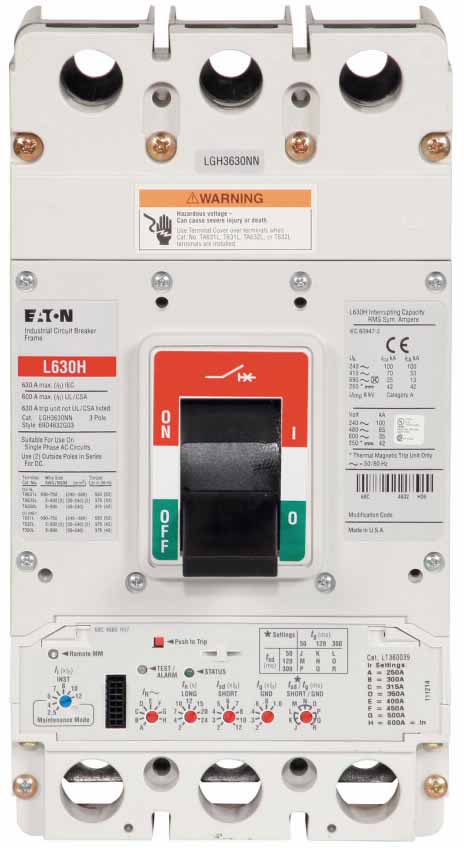

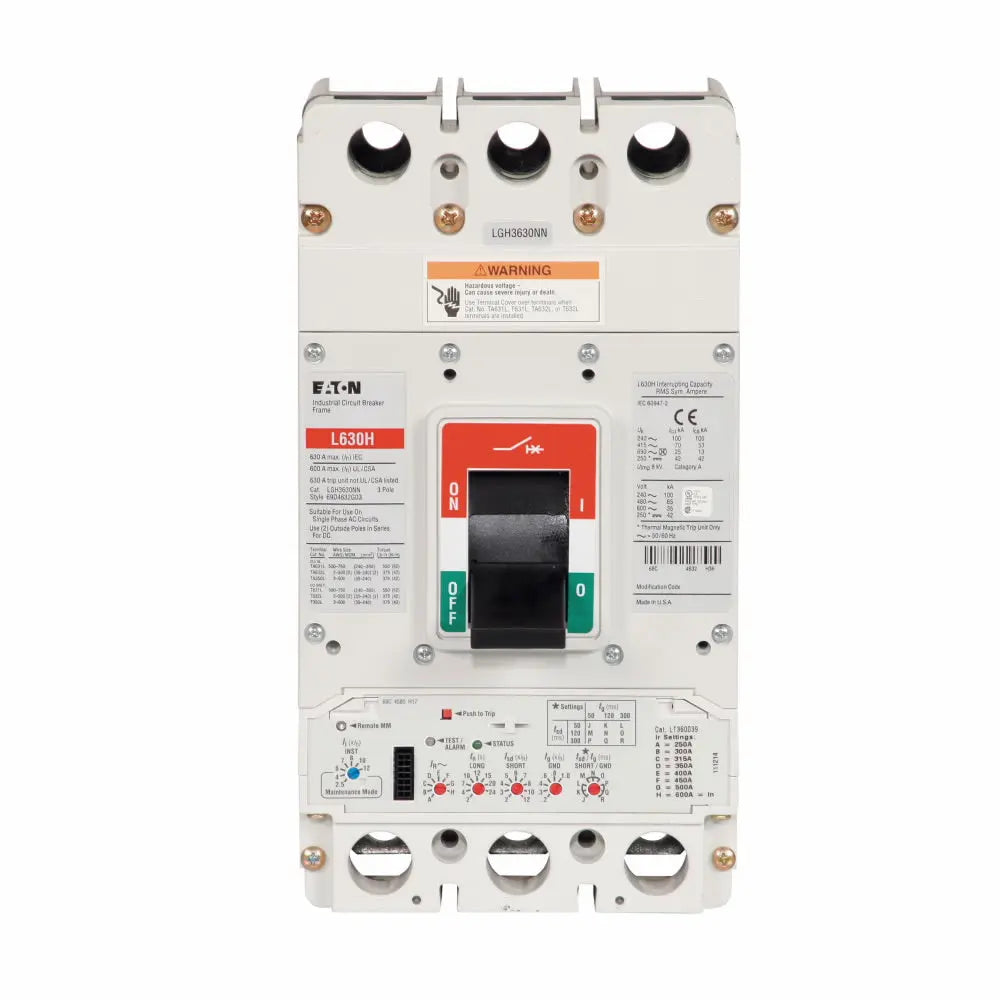

LGH3630NN - Cutler Hammer 630 Amp 600 Volt 3 Pole Molded Case Circuit Breaker Frame

LGH3630NN

LGH3630NN is a Cutler Hammer molded case circuit breaker frame rated for 630 amps, 600 volts, and 3 poles.This Eaton Cutler Hammer LGH3630NN circuit breaker frame features a bolt-on mounting style and thermal magnetic protection with long-time and instantaneous trip functions. It has an interrupting rating of 65kA at 480V and is part of the Series G, Frame J-K family. The breaker frame is UL listed, CSA certified, IEC rated, and HACR rated for HVAC applications.

Key Specifications
• Amperage: 630 A
• Voltage: 600 V
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA @ 480 V
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Series/Frame: Series G, Frame J-K
• Certifications: UL Listed, CSA Certified, IEC Rated, HACR Rated
• Dimensions (HxWxD): 10.13" x 5.48" x 4.09"
• Weight: 16 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

Frame only, Trip unit and lugs not included.




Specifications

• Part Number: LGH3630NN
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : LGH
• Voltage : 600
• Amperage : 630
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• UPC : 782116336180
• GTIN : 00782116336180
• Country of Origin : United States
• Dimensions : 4.09 in x 10.13 in x 5.48 in (Length/Depth x Height x Width)
• Weight : 16
• Certification : UL Listed,IEC Rated,CSA Certified,CE Marked
