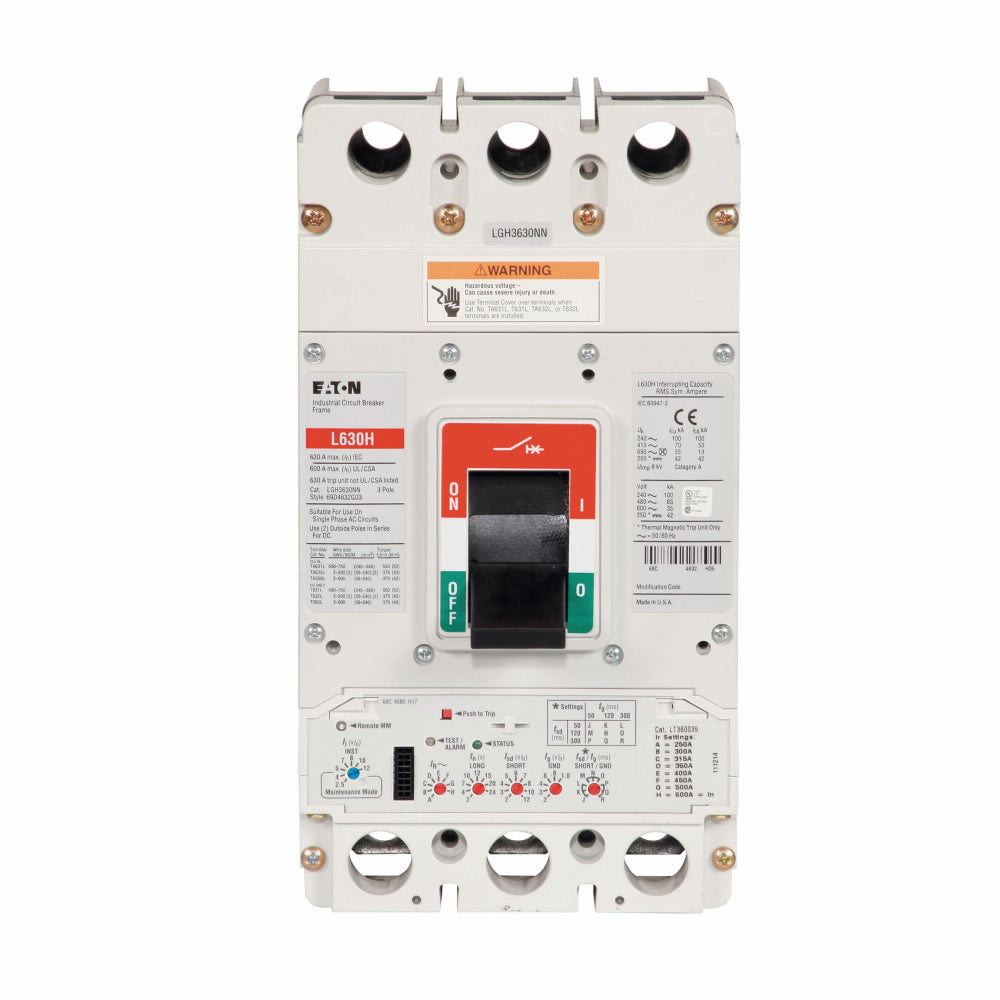

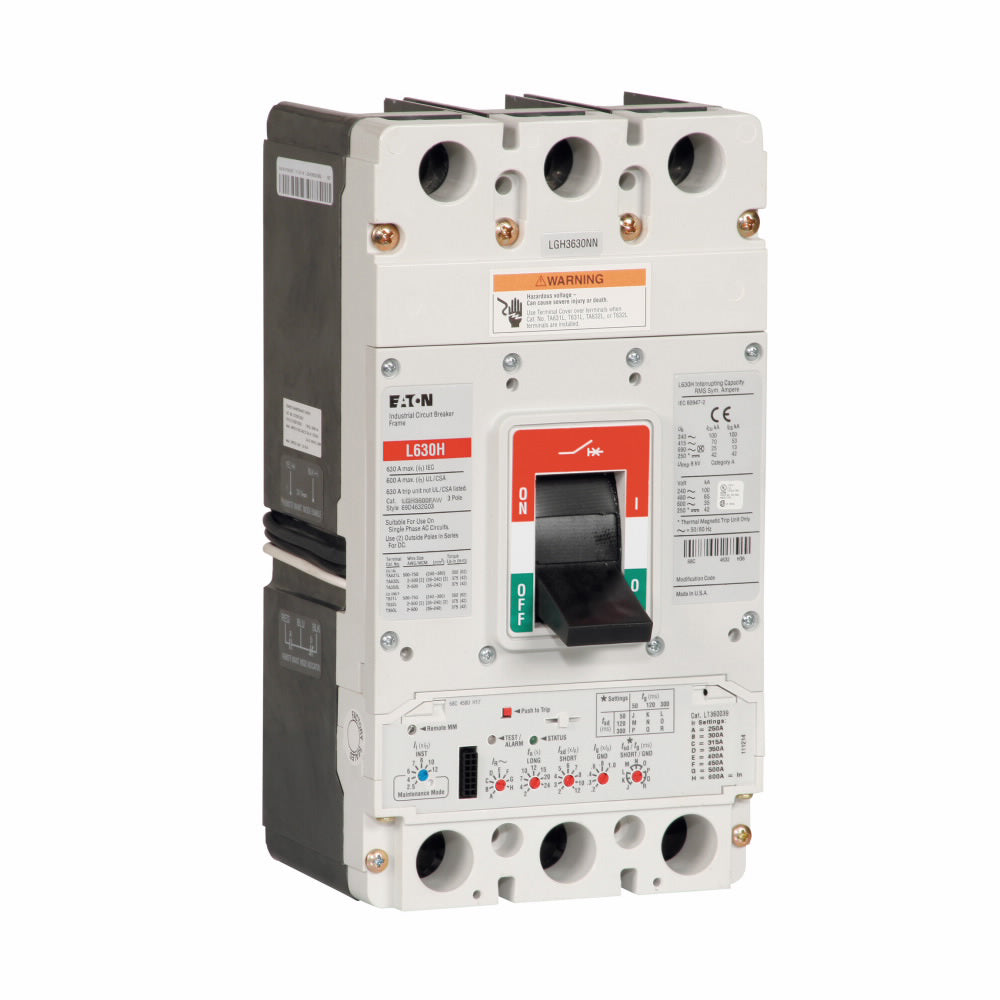

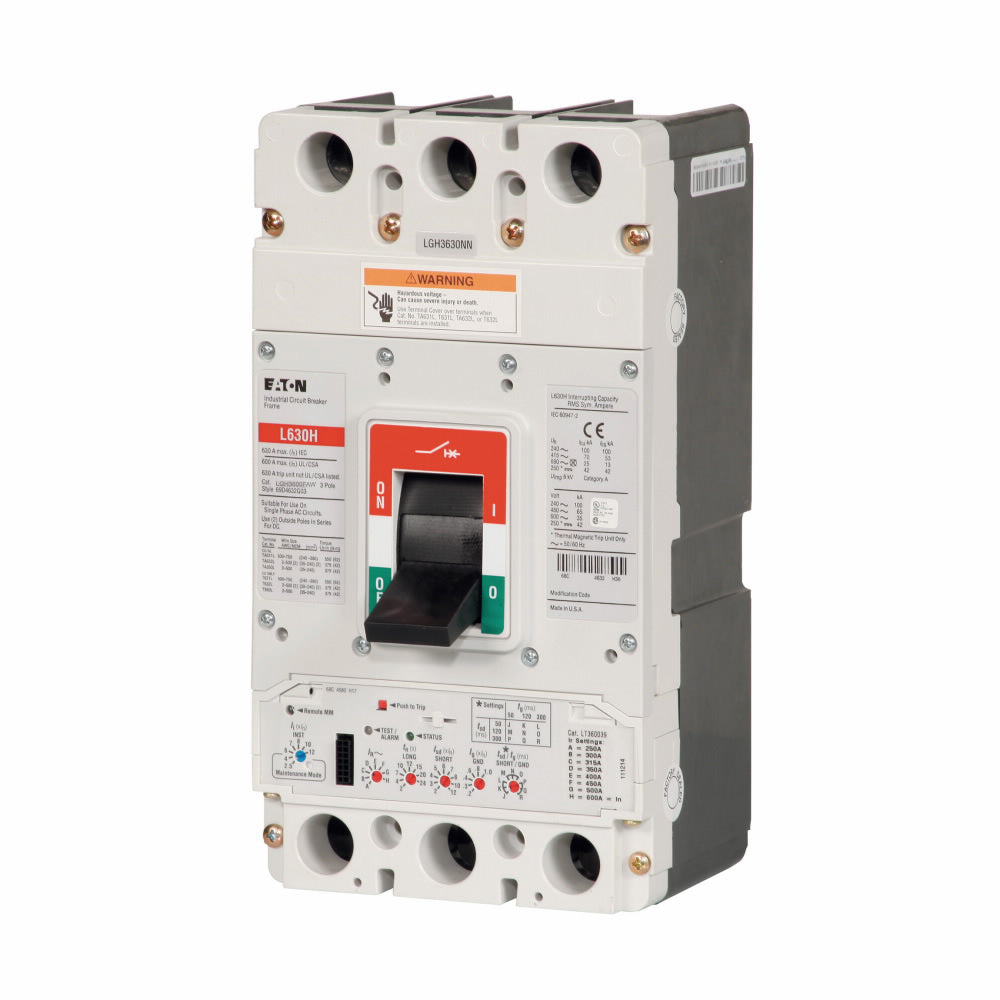

LGH3600FAW - Cutler Hammer LGH 3P 600A 600V Molded Case Circuit Breaker, LG Frame, 100kAIC, Bolt-On, Fixed Thermal Adjustable Magnetic Trip

LGH3600FAW

LGH3600FAW is a Cutler Hammer Series G molded case circuit breaker designed for high-capacity power distribution applications. This three-pole, 600A, 600V breaker features an LG frame, fixed thermal and adjustable magnetic trip, and a 100kAIC interrupt rating at 240V, making it suitable for demanding industrial environments. The unit is bolt-on mounted and includes non-interchangeable terminals for secure installation. This Eaton Series G circuit breaker delivers reliable protection for three-phase systems, with a robust design for long-term performance. It is rated for 100% continuous load and is suitable for use in main or branch circuit protection where high interrupt capacity is required.

• Part Number: LGH3600FAW
• Manufacturer: Cutler Hammer (Eaton)
• Series/Frame: Series G, LG Frame
• Number of Poles: 3
• Amperage Rating: 600A
• Voltage Rating: 600 Vac
• Interrupt Rating: 100kAIC at 240 Vac
• Mounting Type: Bolt-On
• Terminal Type: Non-Interchangeable
• Trip Unit: Fixed Thermal, Adjustable Magnetic
• Continuous Load Rating: 100%
• Application: Three-Phase Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGH3600FAW
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : LGH
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782116141791
• GTIN : 00782116141791
• Country of Origin : United States
• Dimensions : 5.48 in x 5.48 in x 5.48 in (Length/Depth x Height x Width)
• Weight : 13.5
• Certification : CSA Certified,UL Listed,IEC Rated,CE Marked
