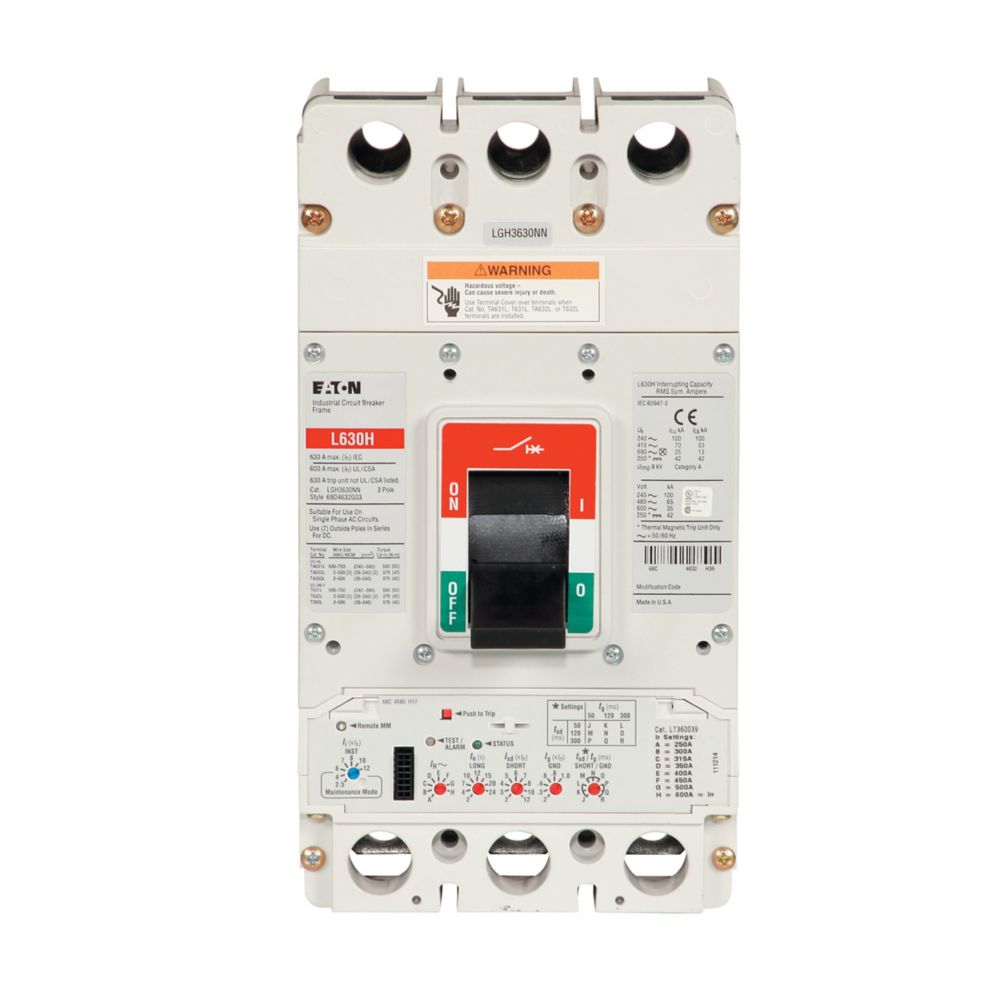

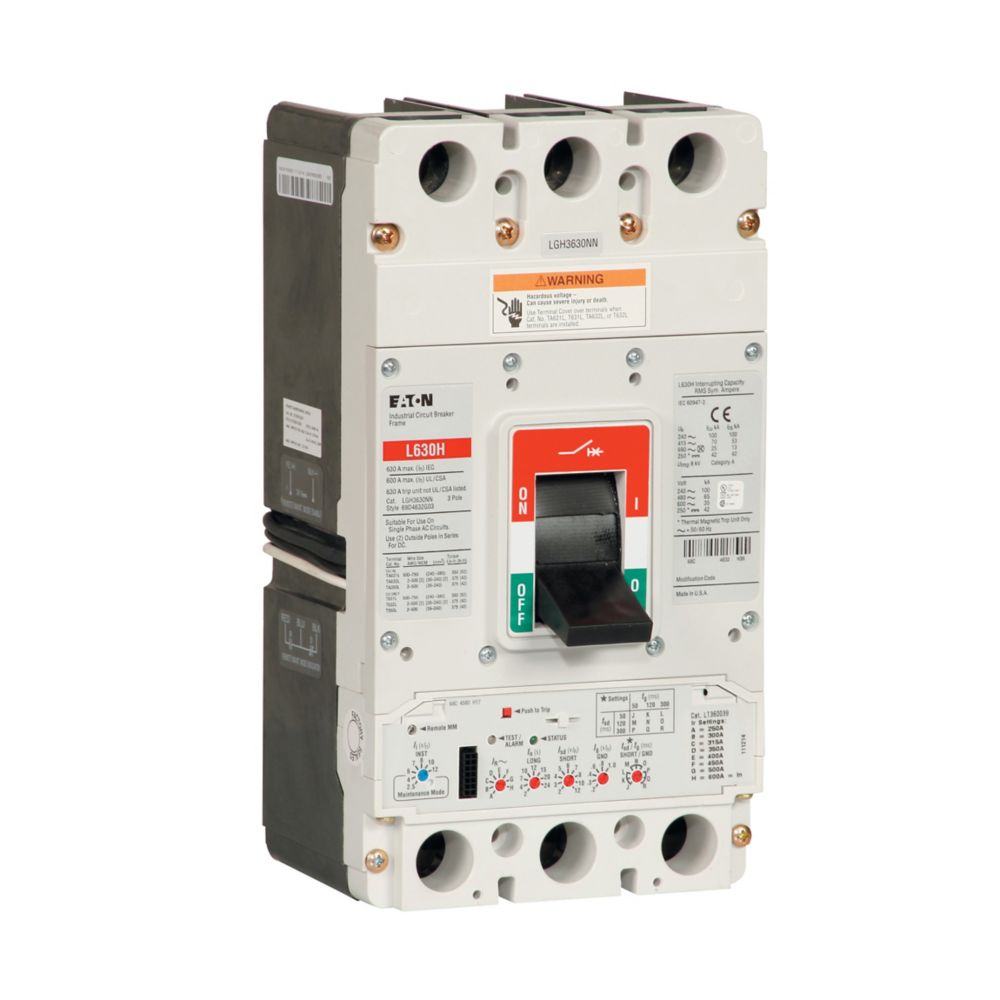

LGH3600FAGC - Cutler Hammer 600A 600V 3-Pole Molded Case Circuit Breaker Series G

LGH3600FAGC

LGH3600FAGC is a Cutler Hammer 3-pole molded case circuit breaker rated for 600 amps and 600 volts, designed for reliable power distribution protection.This Series G LG-frame breaker features thermal magnetic protection with fixed thermal and adjustable magnetic trip units. It supports feed-thru connection and is rated for 65kA interrupting capacity at 480V, with additional ratings of 100kA at 240V, 70kA at 415V, and 35kA at 600V. The breaker is UL, IEC, CSA, and CE certified, suitable for 3-phase applications, and designed for line and load side lug connections.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Series: G
• Frame: LG
• Amperage: 600 A
• Voltage: 600 VAC
• Poles: 3
• Interrupting Rating: 65kAIC @ 480V, 100kAIC @ 240V, 70kAIC @ 415V, 35kAIC @ 600V
• Trip Unit: Fixed Thermal / Adjustable Magnetic
• Connection Type: Feed-Thru
• Protection Type: Thermal Magnetic
• Certifications: UL, IEC, CSA, CE
• Phase: 3
• Dimensions: 5.48" x 5.48" x 5.48"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGH3600FAGC
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : LGH
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786685291352
• GTIN : 00786685291352
• Country of Origin : United States
• Dimensions : 5.48 in x 5.48 in x 5.48 in (Length/Depth x Height x Width)
• Weight : 16
• Certification : UL Listed,IEC Rated,CSA Certified,CE Marked
