Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
LGH360036W

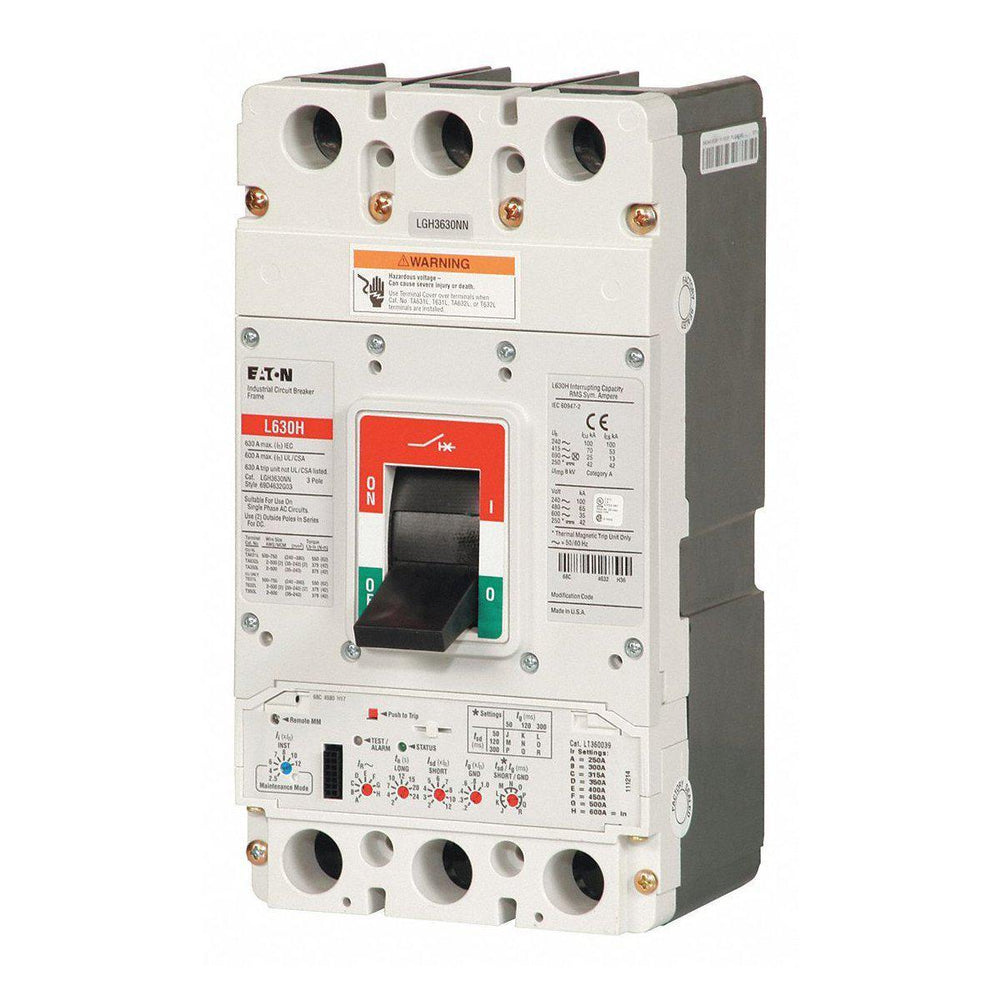

LGH360036W is a Cutler Hammer 3-pole molded case circuit breaker rated for 600 amps and 600 volts with an LSIG electronic trip unit.
This breaker features a bolt-on mounting type and provides a high interrupting capacity of 65kA at 480V. It is designed for reliable protection with an 80% rated frame and no line/load terminals. The LGH series frame ensures robust performance and compliance with industry certifications.
- Key Specifications
- Amperage: 600A
- Voltage: 600V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 65kA @ 480V
- Series/Frame: LGH
- Trip Unit: LSIG Electronic
- Rated Frame: 80%
- No Line/Load Terminals
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: LGH360036W
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series G
- Type : LGH
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
- Weight : 20
