Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LGG3B125L

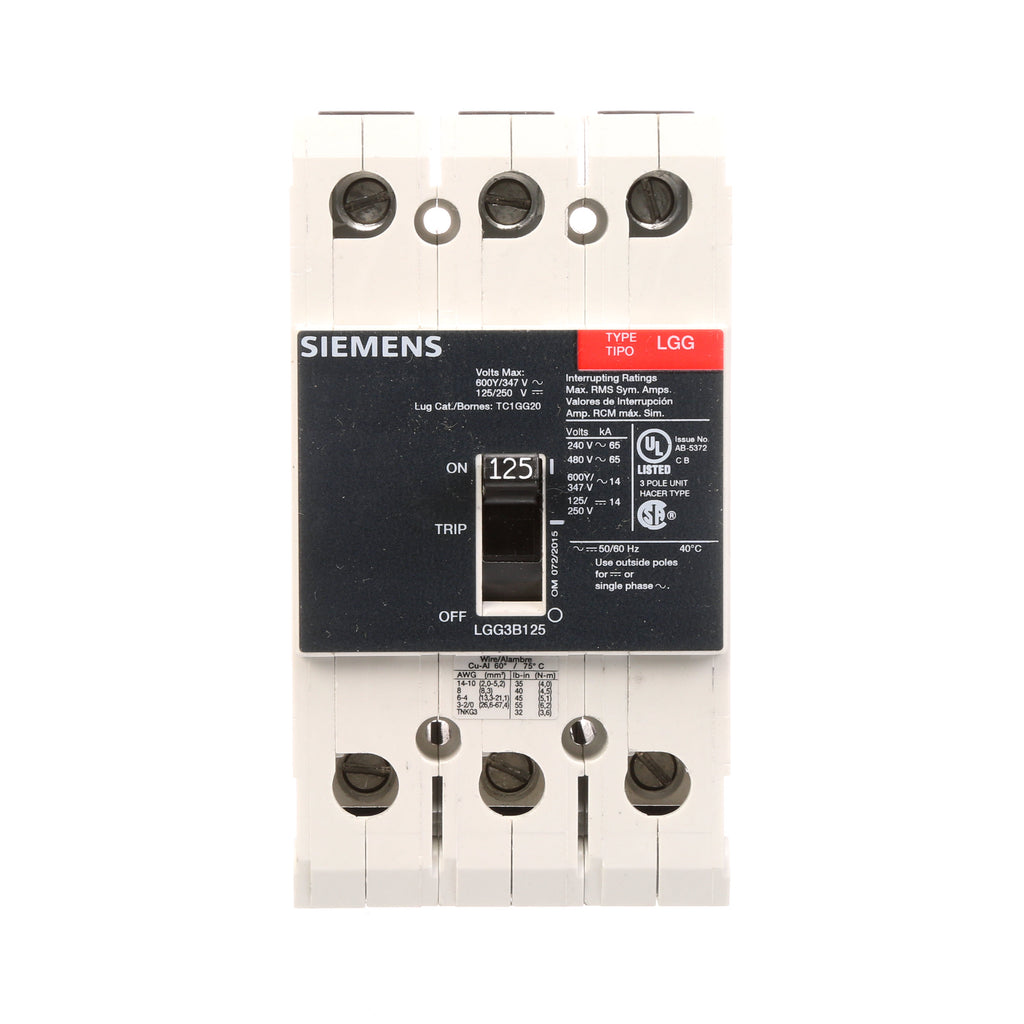

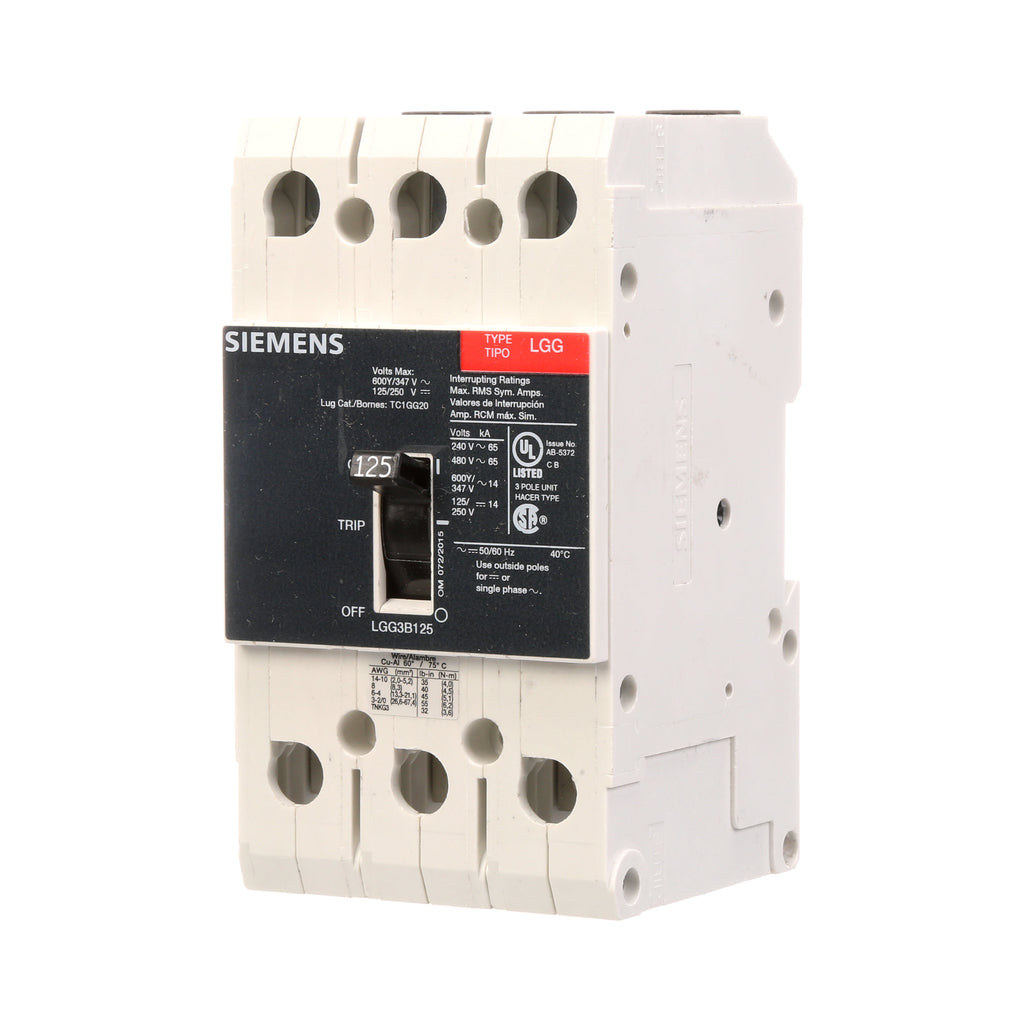

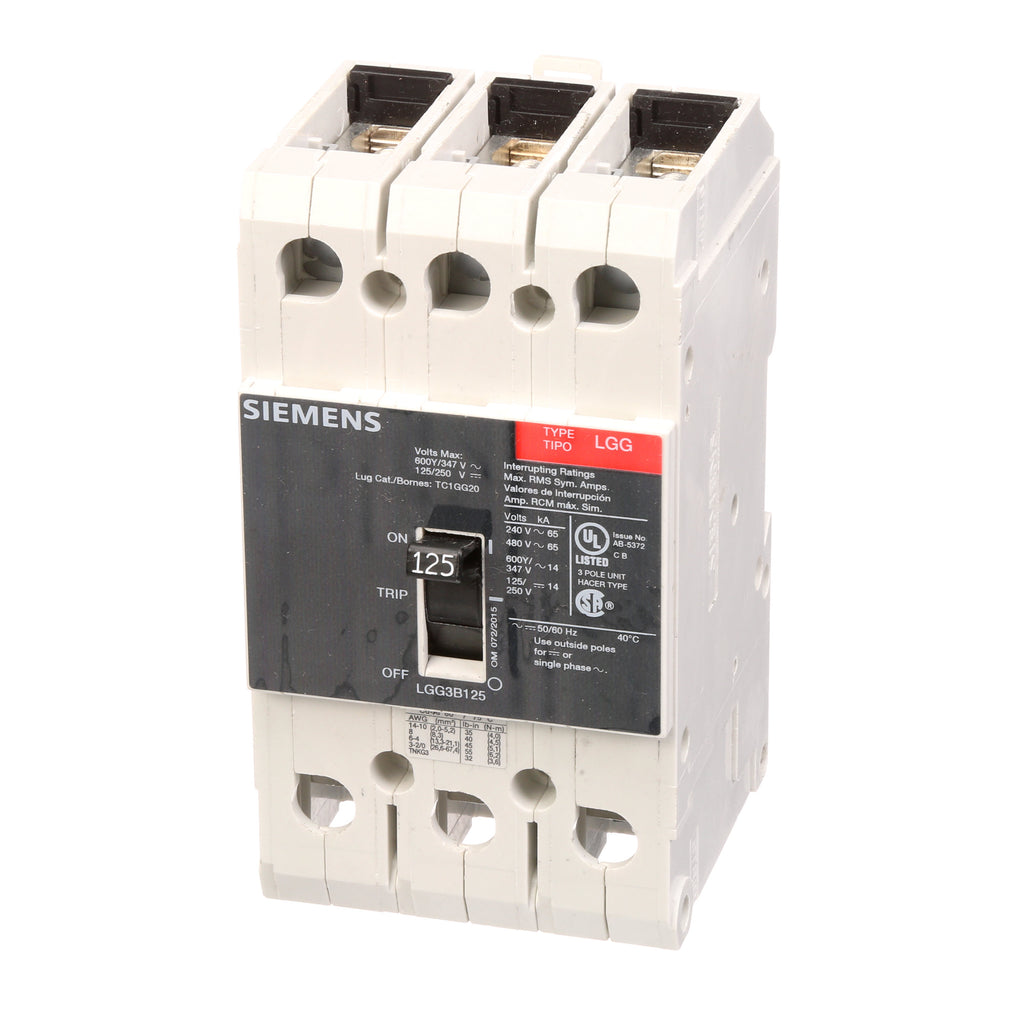

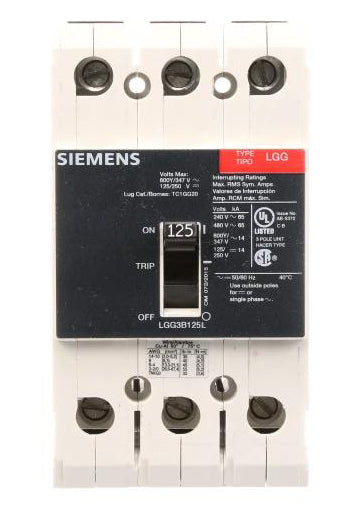

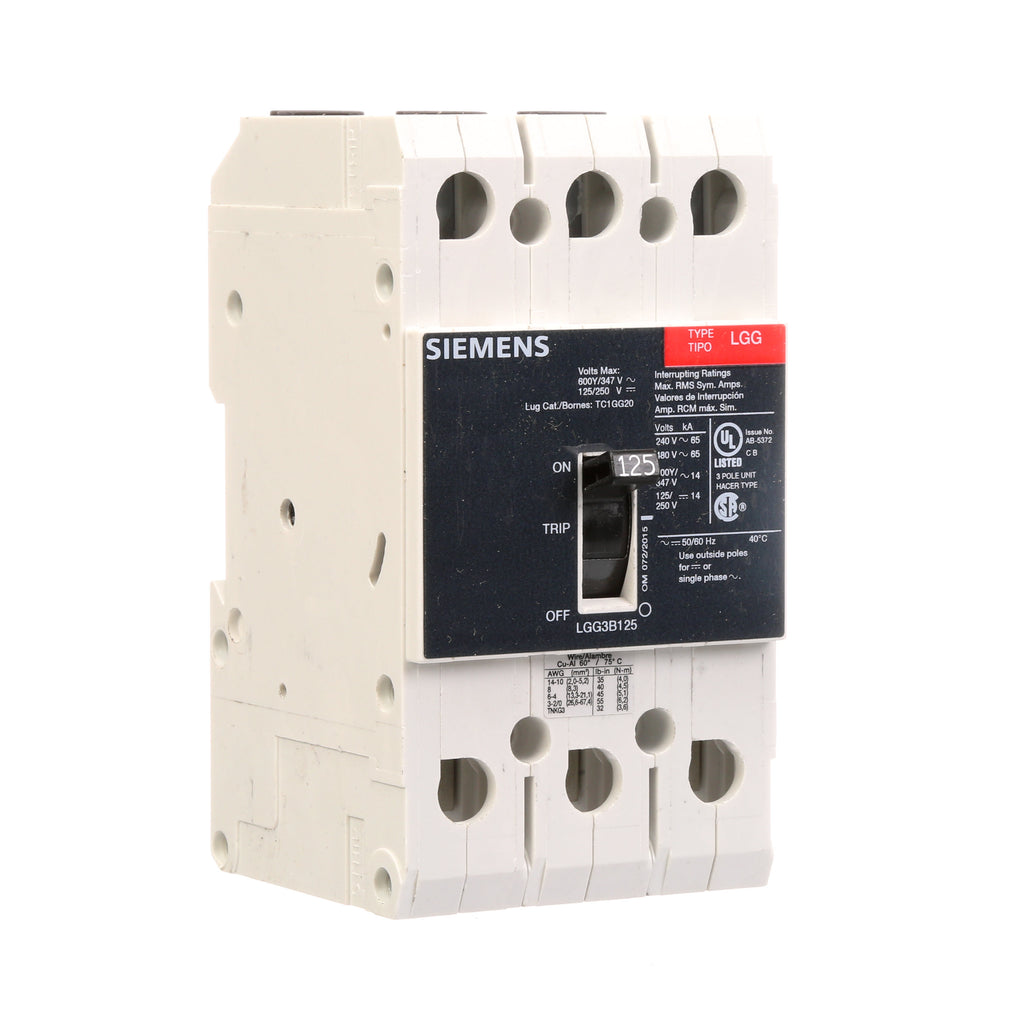

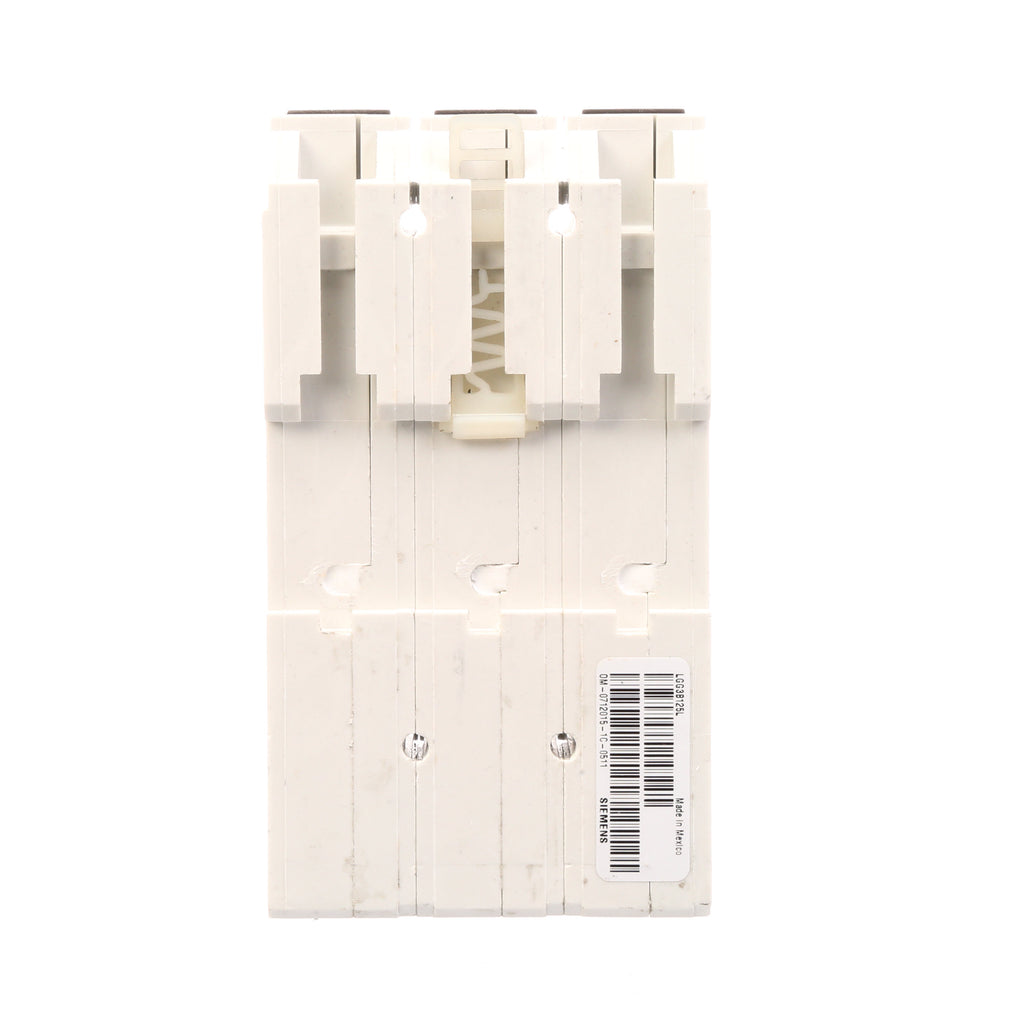

LGG3B125L is a Siemens 3-pole molded case circuit breaker rated for 125 amps and 600 volts with a 65kA interrupting capacity at 480V.This Siemens LGG series breaker features thermal magnetic trip protection with long-time and instantaneous trip functions. It supports feed-thru connections and is suitable for reverse feed applications. Mounting options include DIN rail or threaded screw mounting. The breaker is UL489 certified and designed for reliable low voltage circuit protection.
- Amperage: 125A
- Voltage Rating: 600V (600Y/347V AC)
- Poles: 3
- Interrupt Rating: 65kA @ 480V
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Mounting Type: DIN Rail or Threaded Screw
- Connection: Feed-Thru, Line & Load Side Lugs
- Series/Frame: LGG (VL Series)
- Certifications: UL489
- Weight: Approx. 2.75 lbs
Specifications
- Part Number: LGG3B125L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : LGG
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 887621279295
- GTIN : 00887621279295
- Country of Origin : Mexico
- Weight : 2.756
- Wire Size : AWS 8 to AWS 1/0, Cu/Al
