Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LGG3B100

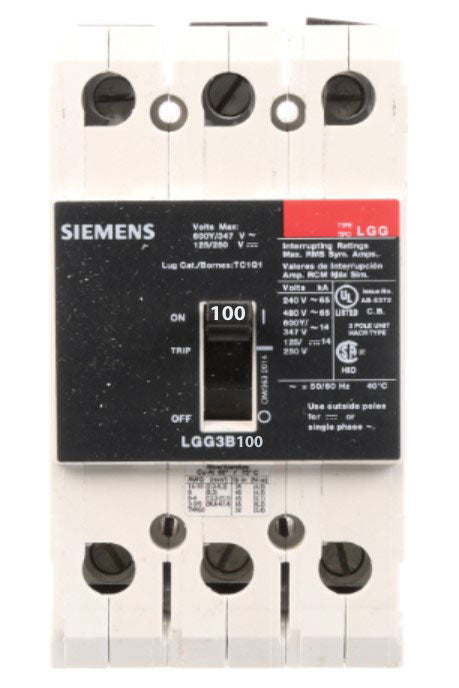

LGG3B100 is a Siemens 3 pole molded case circuit breaker rated for 100 amps and 600 volts with a bolt-on mounting type and a 65kA interrupting rating at 480V.LGG3B100 features a thermal magnetic trip unit designed for reliable protection in industrial and commercial applications. It supports feed-thru connection and is part of the Siemens LGG series frame. This breaker is UL listed and CSA certified, suitable for use in 600Y/347V AC systems and rated for DC voltages up to 125/250V. It provides high interrupting capacity and durability for demanding electrical distribution needs.
- Key Specifications
- Amperage: 100A
- Voltage Rating: 600V AC (600Y/347V)
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 65kA at 480V
- Series/Frame: LGG
- Trip Unit: Thermal Magnetic
- Connection Type: Feed-Thru
- Certifications: UL Listed, CSA Certified
- DC Voltage Rating: 125/250V DC
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: LGG3B100
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 2
