LGE3630NN - Cutler Hammer 630A 3-Pole Molded Case Circuit Breaker Frame J-K Series G

LGE3630NN

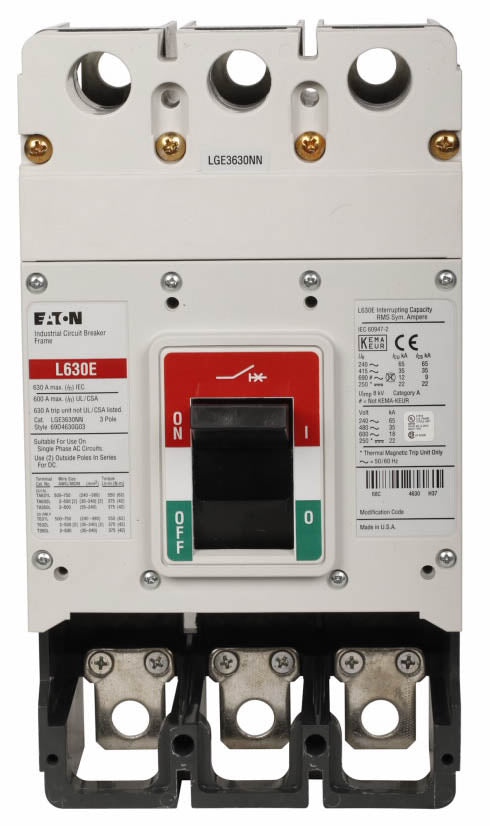

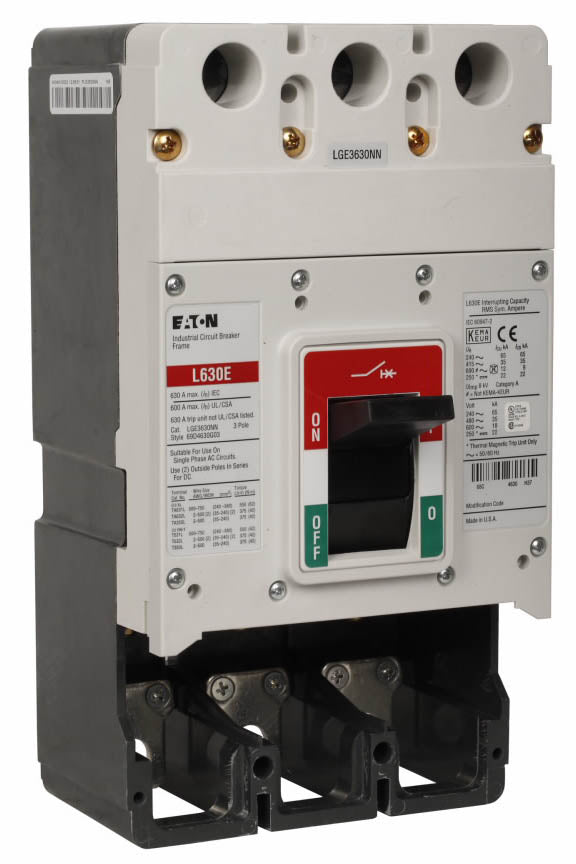

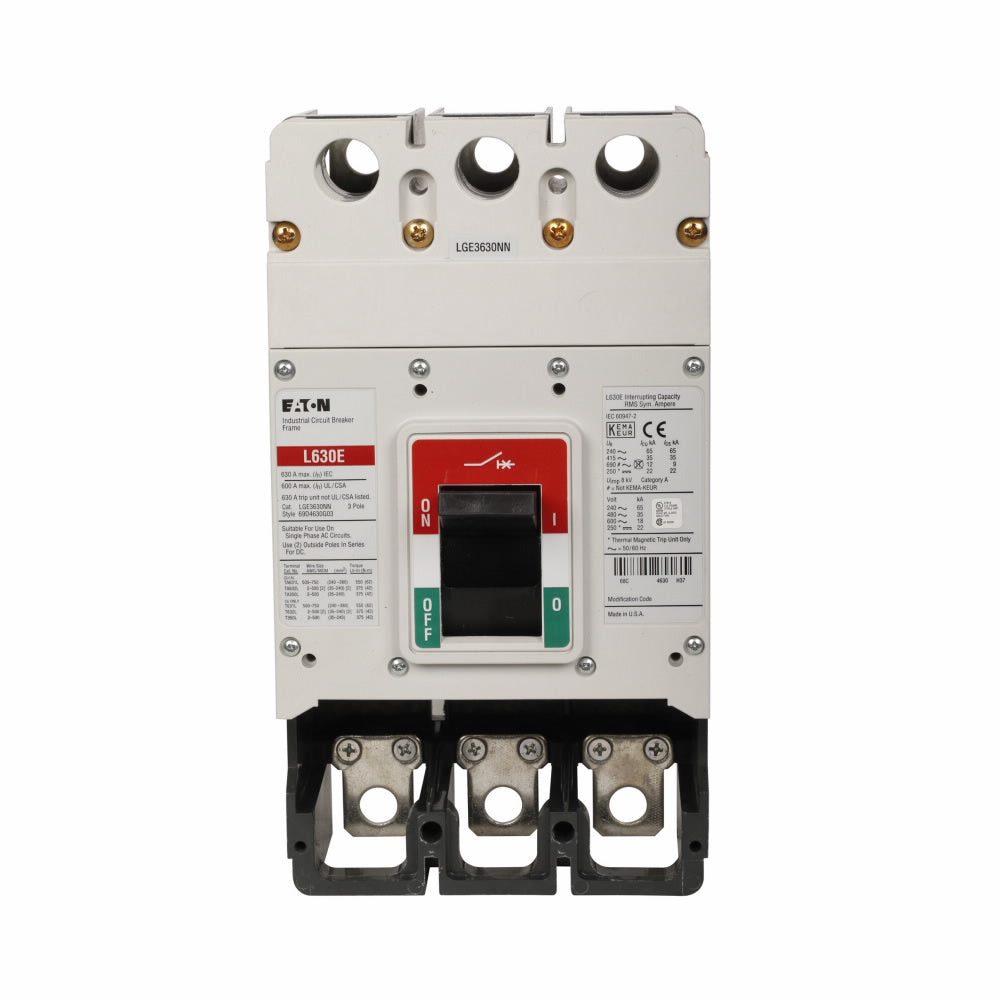

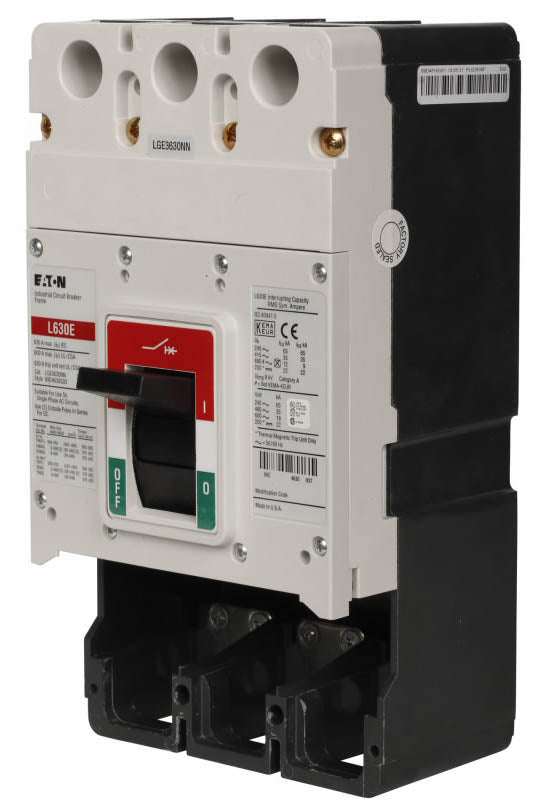

LGE3630NN is a Cutler Hammer molded case circuit breaker accessory frame rated for 630 amps and designed for three-pole applications.This frame-only breaker features a Frame J-K size, Series G, with interrupt ratings of 65 kAIC at 240 V, 35 kAIC at 480 V, and 18 kAIC at 600 V. It is UL listed, CSA certified, IEC rated, and CE marked, suitable for industrial and commercial power distribution systems. The breaker is HACR rated and designed without a trip unit, allowing for flexible trip unit installation.

Key Specifications
• Amperage: 630 A
• Voltage Ratings: 240 V, 480 V, 600 V
• Number of Poles: 3
• Frame Size: J-K
• Series: G
• Interrupt Rating: 65 kAIC @ 240 V, 35 kAIC @ 480 V, 18 kAIC @ 600 V
• Type: Frame Only (no trip unit)
• Certifications: UL Listed, CSA Certified, IEC Rated, CE Marked
• HACR Rated
• Dimensions (HxWxD): 10.13" x 5.48" x 4.09"
• Weight: 16 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Frame only, Trip unit and lugs not included.

Specifications

• Part Number: LGE3630NN
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : LGE
• Voltage : 600
• Amperage : 630
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78211633614
• GTIN : 00782116336142
• Country of Origin : United States
• Dimensions : 4.09 in x 10.13 in x 5.48 in (Length/Depth x Height x Width)
• Weight : 16
• Certification : UL Listed,IEC Rated,CSA Certified,CE Marked
