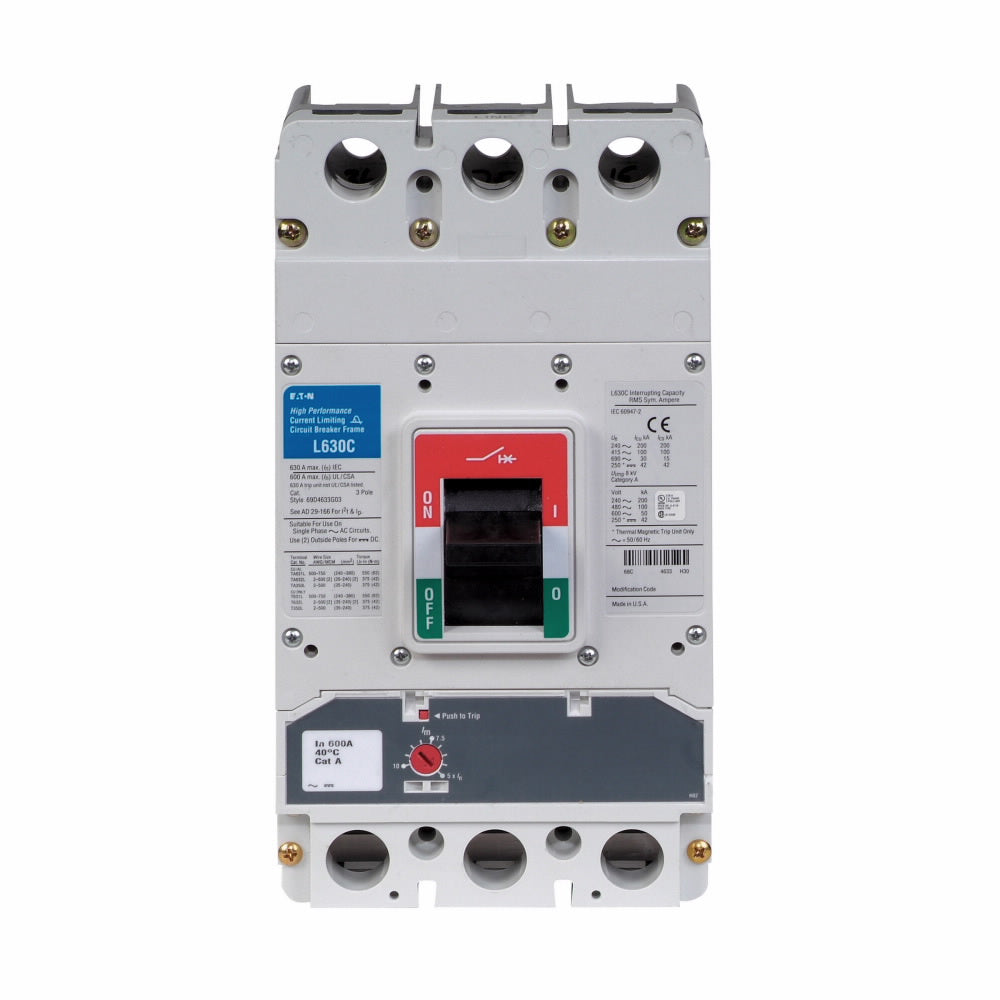

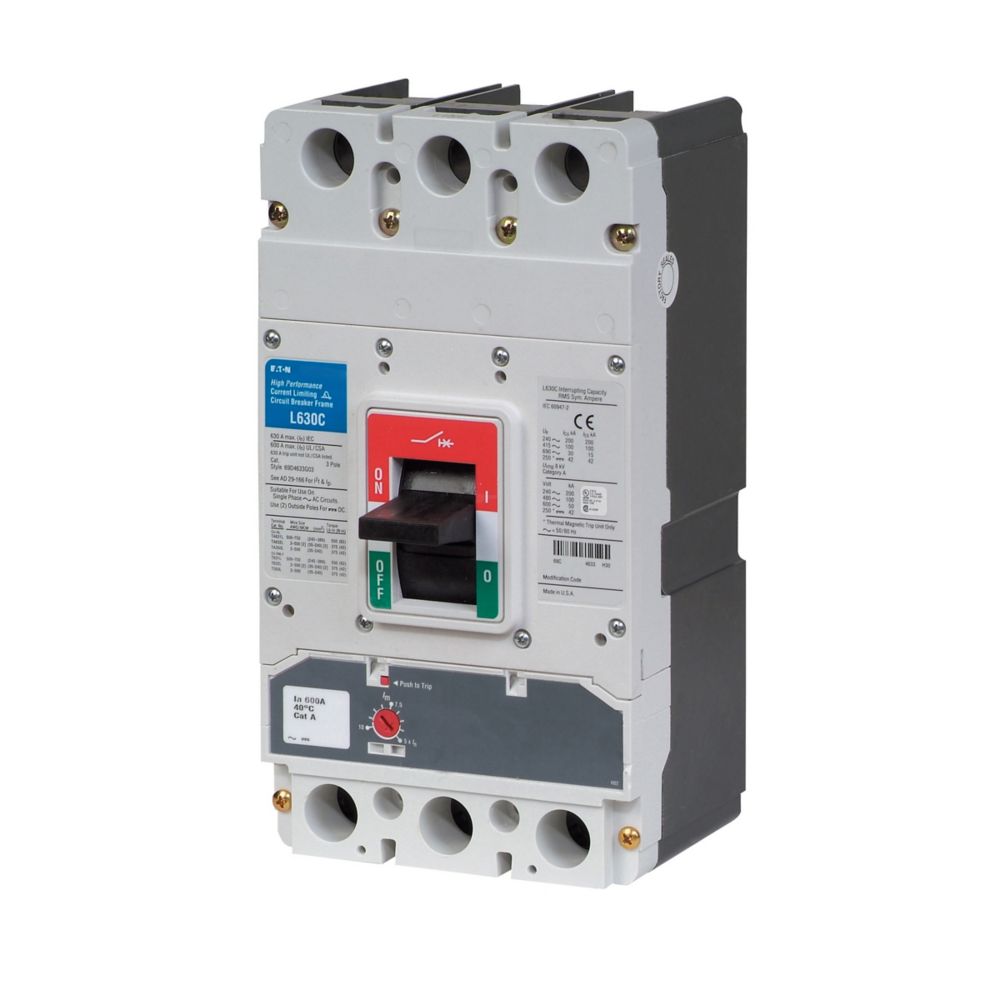

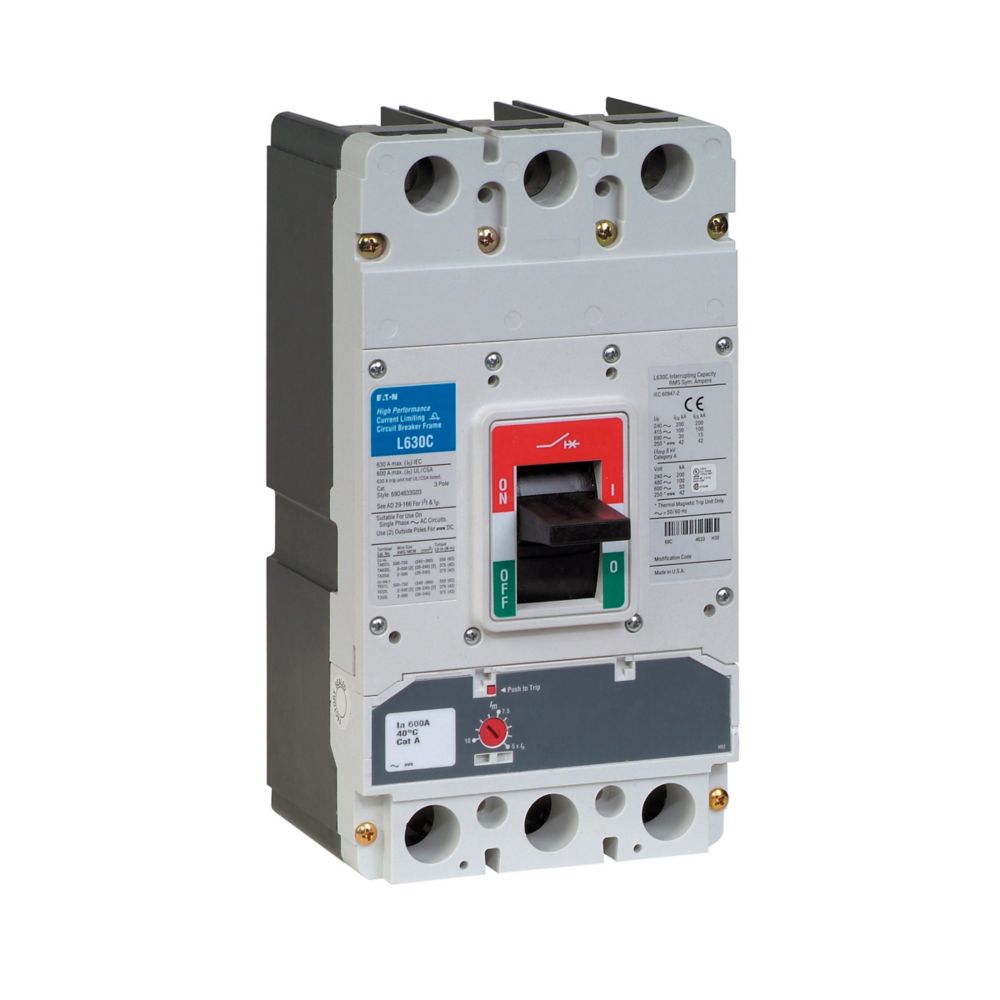

LGE3600FAGC - Cutler Hammer 600A 600V 3-Pole Series G Molded Case Circuit Breaker

LGE3600FAGC

LGE3600FAGC is a three-pole molded case circuit breaker from the Eaton Series G lineup, designed for reliable protection in commercial and industrial power distribution systems. This breaker features a fixed thermal and adjustable magnetic trip unit, providing precise overcurrent protection for demanding applications. The LGE3600FAGC is built with an LG-frame and is rated for 600 amps at 600 volts AC. It offers high interrupt ratings, including 65 kA at 240VAC, 35 kA at 415VAC, and 35 kA at 480VAC, ensuring robust performance under fault conditions. The unit is designed for standard mounting in compatible switchgear and panelboards.

• Part Number: LGE3600FAGC
• Manufacturer: Cutler Hammer (Eaton)
• Series: Series G
• Frame: LG
• Amperage Rating: 600 A
• Voltage Rating: 600 Vac
• Poles: 3
• Mounting Type: Standard
• Interrupt Rating: 65 kA @ 240VAC, 35 kA @ 415VAC, 35 kA @ 480VAC
• Thermal Trip: Fixed
• Magnetic Trip: Adjustable
• Dimensions: 5.48" x 5.48" x 5.48"
• Weight: 16 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGE3600FAGC
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : LGE
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786685291239
• GTIN : 00786685291239
• Country of Origin : United States
• Dimensions : 5.48 in x 5.48 in x 5.48 in (Length/Depth x Height x Width)
• Weight : 16
• Certification : CSA Certified,UL Listed,IEC Rated,CE Marked
