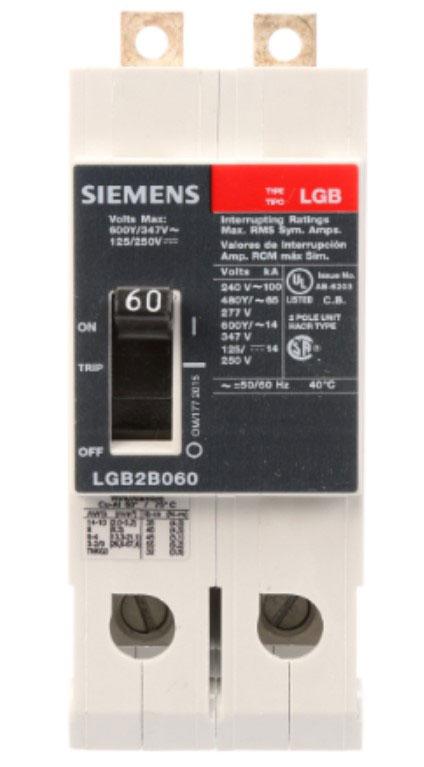

LGB2B060B - Siemens 60A 2-Pole Bolt-On Circuit Breaker 480V AC LGB Frame 65kAIC @ 480Y/277V

LGB2B060B

LGB2B060B is a Siemens molded case circuit breaker designed for reliable overcurrent protection in low voltage applications.This 2-pole thermal-magnetic circuit breaker from the LGB series features a 125 A frame, 60 A amperage rating, and 480 VAC voltage rating. It offers a 65 kA interrupt rating at 480Y/277V, bolt-on mounting, and supports wire sizes from 8 to 1/0 AWG (line) and 8 to 2/0 AWG (load).Key Specifications

• Amperage Rating: 60 A
• Voltage Rating: 480 VAC
• Number of Poles: 2
• Frame Size: 125 A
• Mounting Type: Bolt-On / Panel Mount
• Interrupt Rating: 65 kA @ 480Y/277V
• Trip Unit: Thermal-Magnetic (LI)
• Frequency: 50/60 Hz
• Wire Range: 8 - 1/0 AWG (line), 8 - 2/0 AWG (load)
• Dimensions: 2.87 in L x 1.97 in W x 4.99 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LGB2B060B
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : VL Series
• Type : LGB
• Voltage : 600
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 887621220143
• GTIN : 00887621220143
• Country of Origin : Mexico
• Dimensions : 1.969 x 2.87 x 4.996
• Weight : 1.852
• Certification : UL, CSA, IEC, NOM
• Wire Size : 8 - 1/0 AWS (CU/AL)
