Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
LGB2B045B

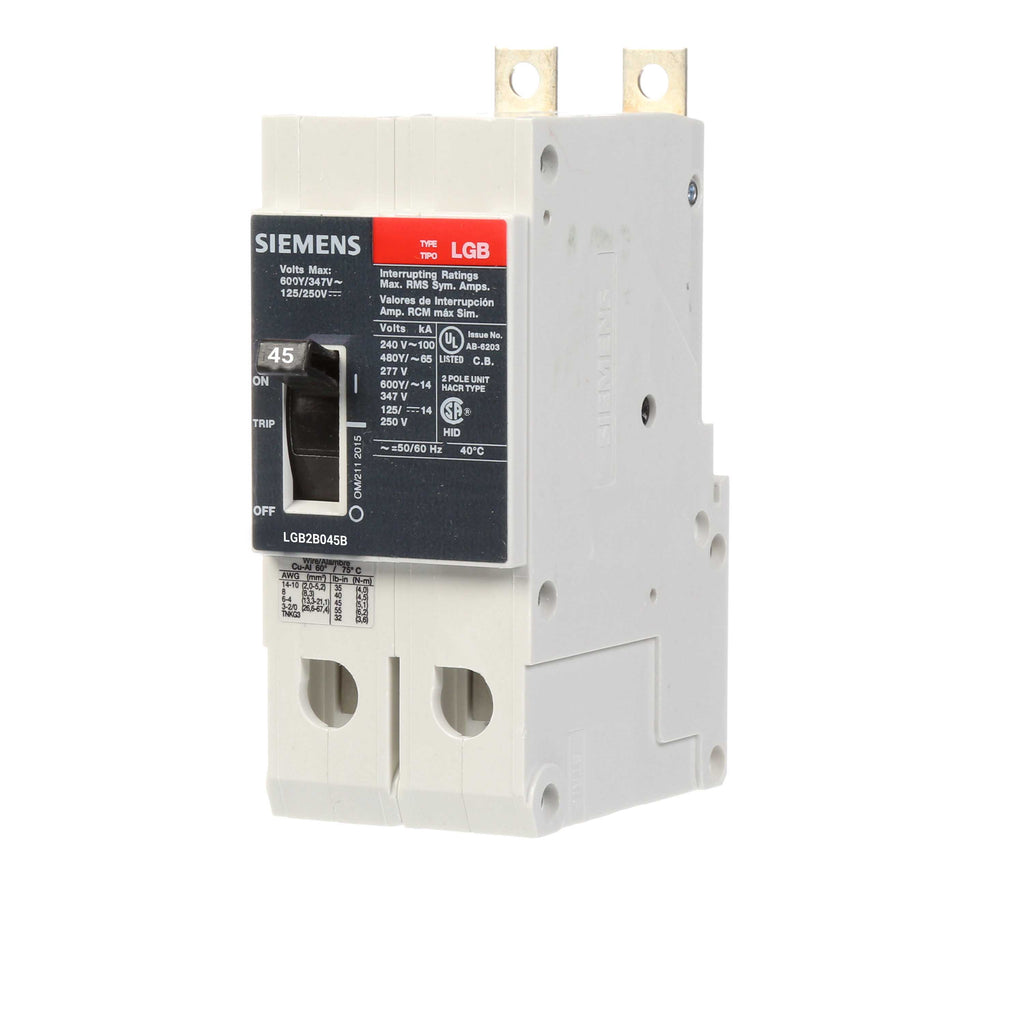

LGB2B045B - Siemens 2-pole molded case circuit breaker rated at 45A for panelboard mounting. This premium LGB frame breaker features a thermal-magnetic trip unit and high interrupting capacity up to 65kAIC at 480Y/277V, designed for commercial and industrial overcurrent protection.
-
Key Specifications
- Amperage: 45A
- Poles: 2
- Frame: LGB
- Voltage: 480V AC
- Interrupt Rating: 65kAIC at 480Y/277V
- Interrupt Rating: 14kAIC at 600Y/347V
- Interrupt Rating: 100kAIC at 240VAC
- Mounting: Bolt-on, panelboard
- Trip Unit: Thermal-magnetic
- HACR rated
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: LGB2B045B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : LGB
- Voltage : 600
- Amperage : 45
- Phase : 1
- Poles : 2
- AIC rating : 100kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 887621220129
- GTIN : 00887621220129
- Country of Origin : Mexico
- Dimensions : 1.969 x 2.87 x 4.994
- Weight : 1.852
- Certification : UL, CSA, IEC, NOM
- Wire Size : 8 AWS to 1/0 AWS, CU/AL
