Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

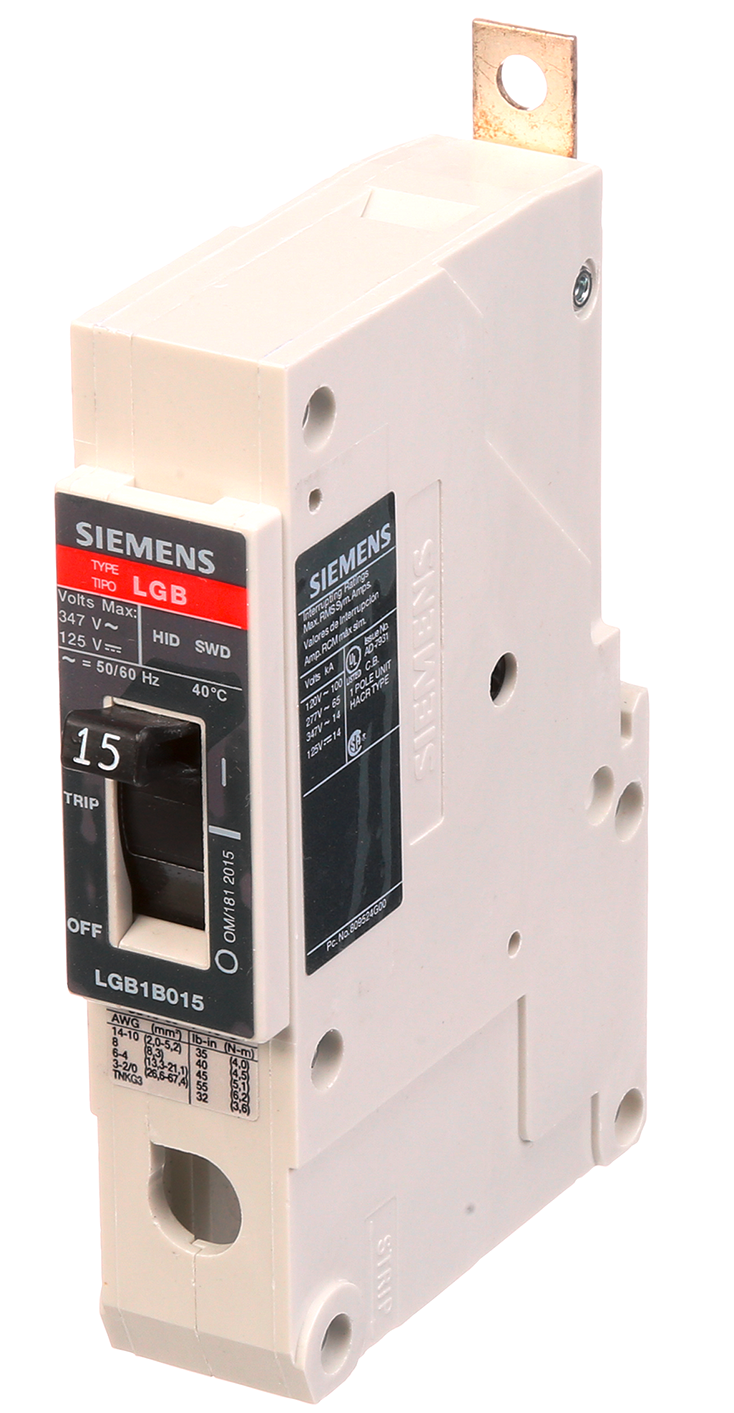

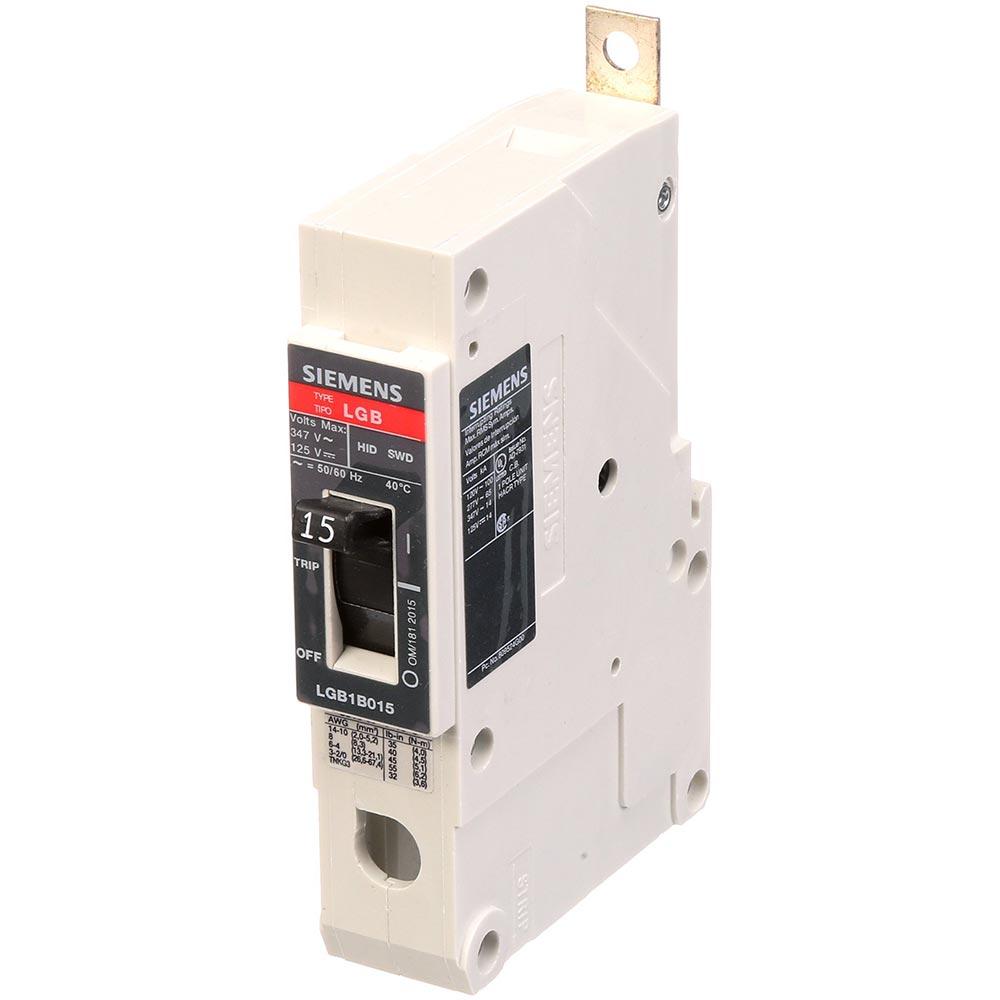

LGB1B015B
LGB1B015B - Siemens 15A, 277V AC, 1-pole molded case circuit breaker with thermal-magnetic trip for panelboard mounting.
This Siemens LGB frame circuit breaker provides reliable overcurrent protection in commercial and industrial applications, featuring bolt-on connection, high interrupting capacity, and suitability for reverse feed with load side lugs accepting #14-6 AWG copper or #12-6 AWG aluminum conductors.
Key Specifications
- Amperage: 15A
- Voltage: 277V AC
- Poles: 1
- Frame: LGB
- Mounting: Bolt-On
- Trip Unit: Thermal-Magnetic
- Interrupting Rating: 65kA
- Connection: Load Side Lugs
- Wire Range: #14-6 AWG Cu, #12-6 AWG Al
- Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LGB1B015B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : VL Series
- Type : LGB
- Voltage : 347
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 65kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 887621219918
- GTIN : 00887621219918
- Country of Origin : Mexico
- Dimensions : 0.969 x 2.87 x 4.996
- Weight : 0.86
- Certification : UL, CSA, IEC, NOM
- Wire Size : AWS 14 to AWS 10, Cu/Al
