Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
LGA36400CU43XEHYP

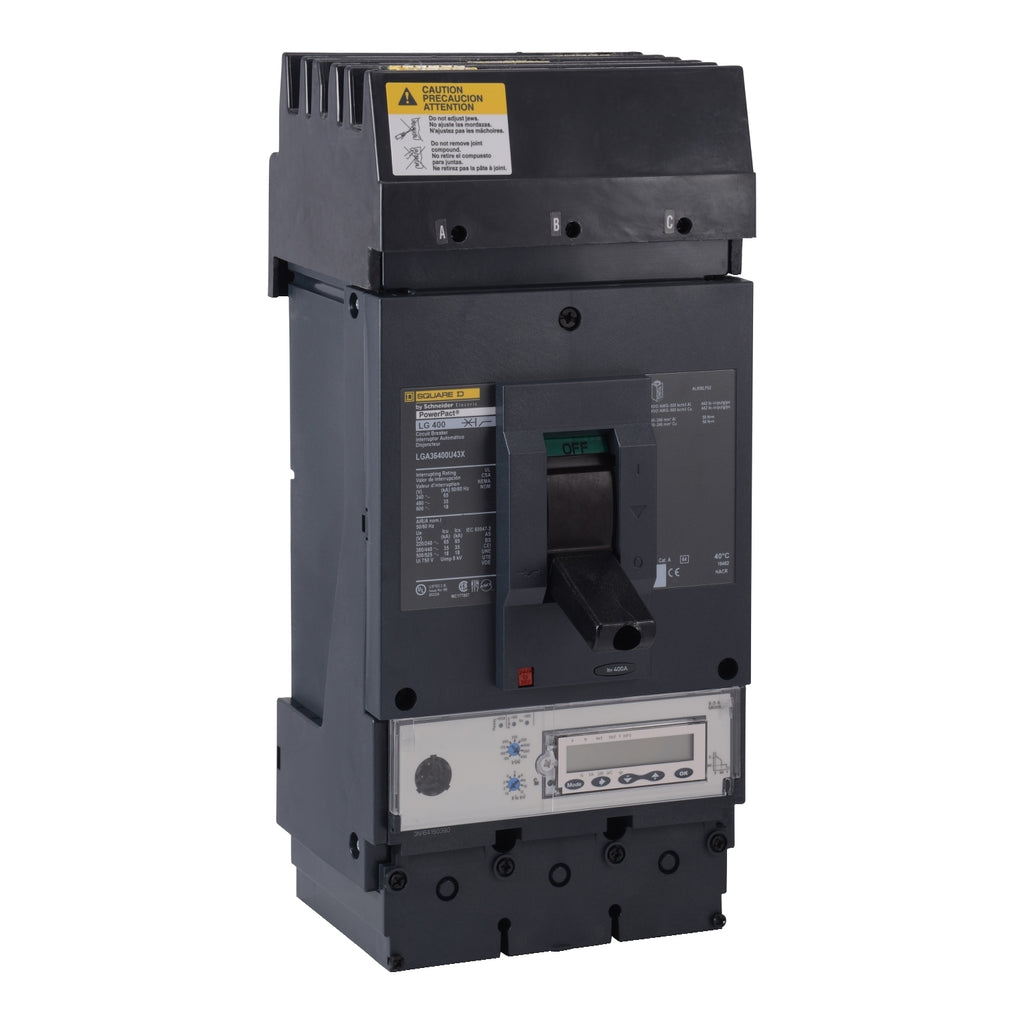

LGA36400CU43XEHYP is a Square D PowerPact L-frame molded case circuit breaker designed for dependable protection in commercial and industrial power distribution systems. This breaker provides a 400 amp continuous current rating with a 3-pole configuration and is rated for 600 VAC applications. It includes an electronic trip unit for accurate overload and short circuit protection and features an I-Line mounting design for efficient installation in compatible panelboards and switchboards. Key Specifications
- Manufacturer: Square D by Schneider Electric
- Frame Type: PowerPact L-frame
- Continuous Current Rating: 400A
- Poles: 3
- Voltage Rating: Up to 600 VAC
- Trip Unit: Electronic
- Mounting: I-Line
Specifications
- Part Number: LGA36400CU43XEHYP
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : LGA
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Functions : LSI - Long Time, Short Time and Instantaneous Trip
- Terminal Connection : I-Line, Lug
- Frame Size : L Frame
- Temp Rating : 28-158 ¡F (-2-70 ¡C)
- Breaker Type : 100% rated
- Protection : Solid State
Product Data
- Dimensions : Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 15.9 lb
- Standards : UL, CSA, NEMA, NOM, IEC
- Certification : UL, CSA, NEMA, NOM, IEC
