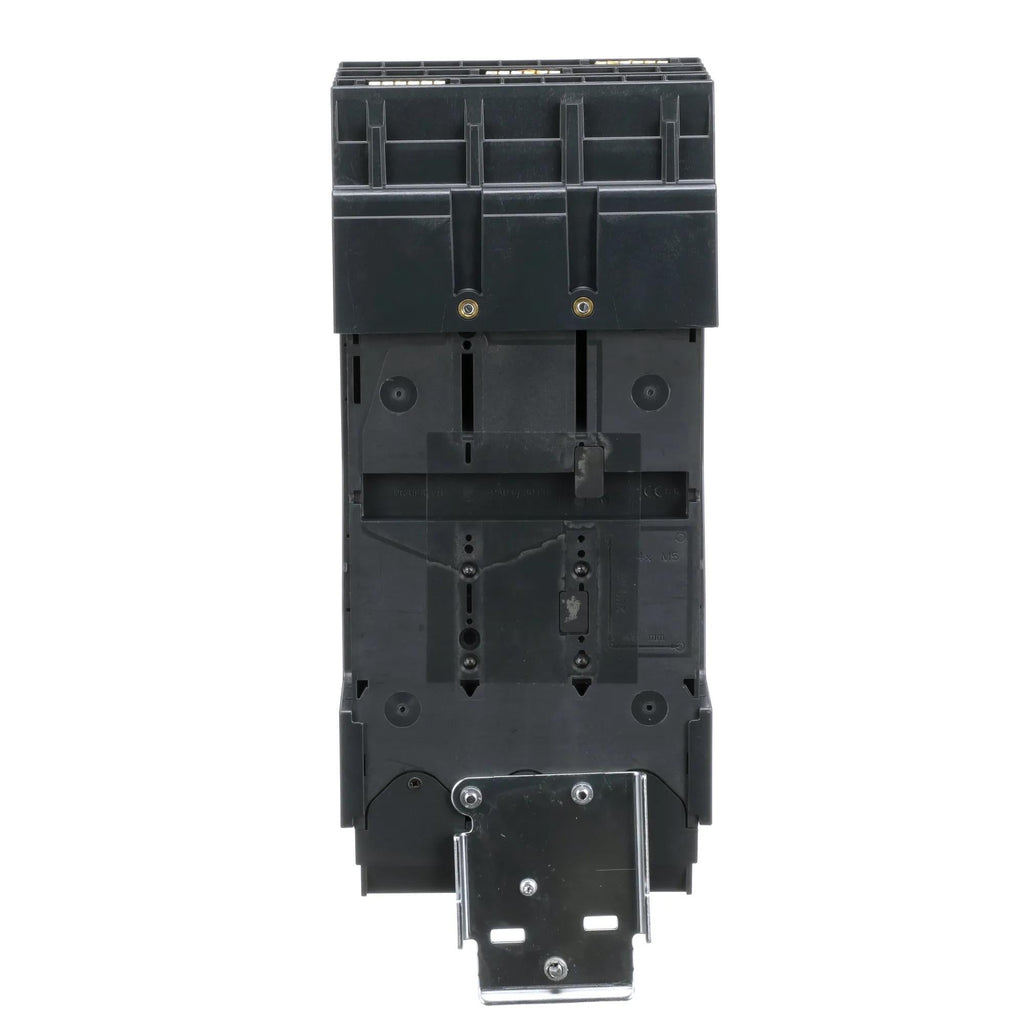

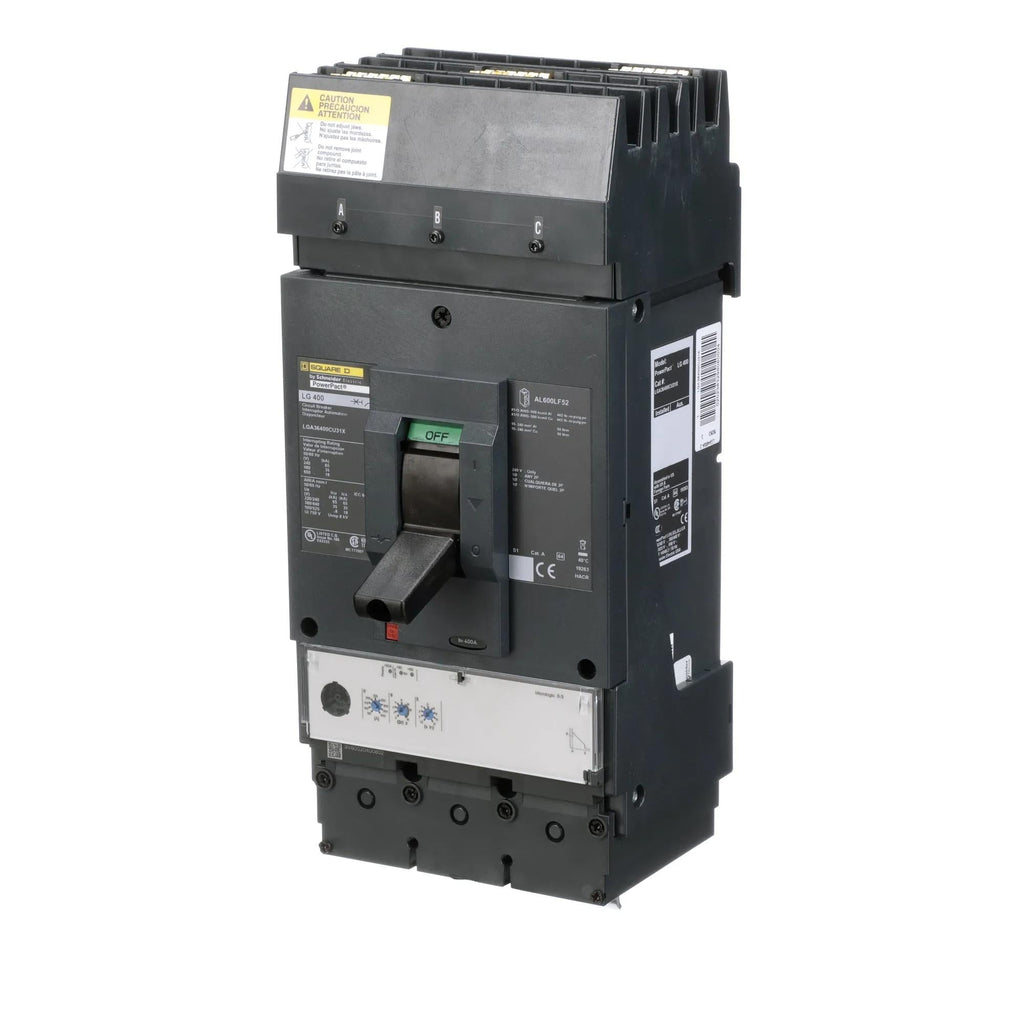

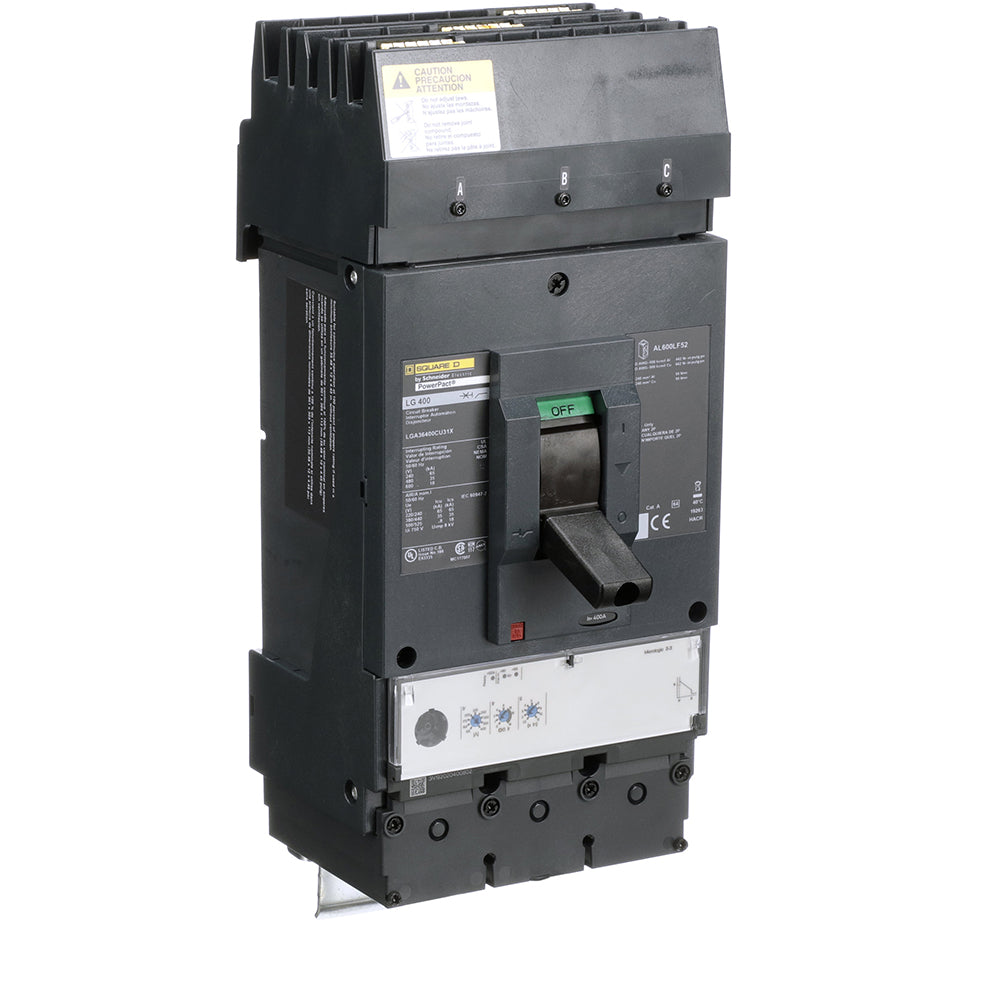

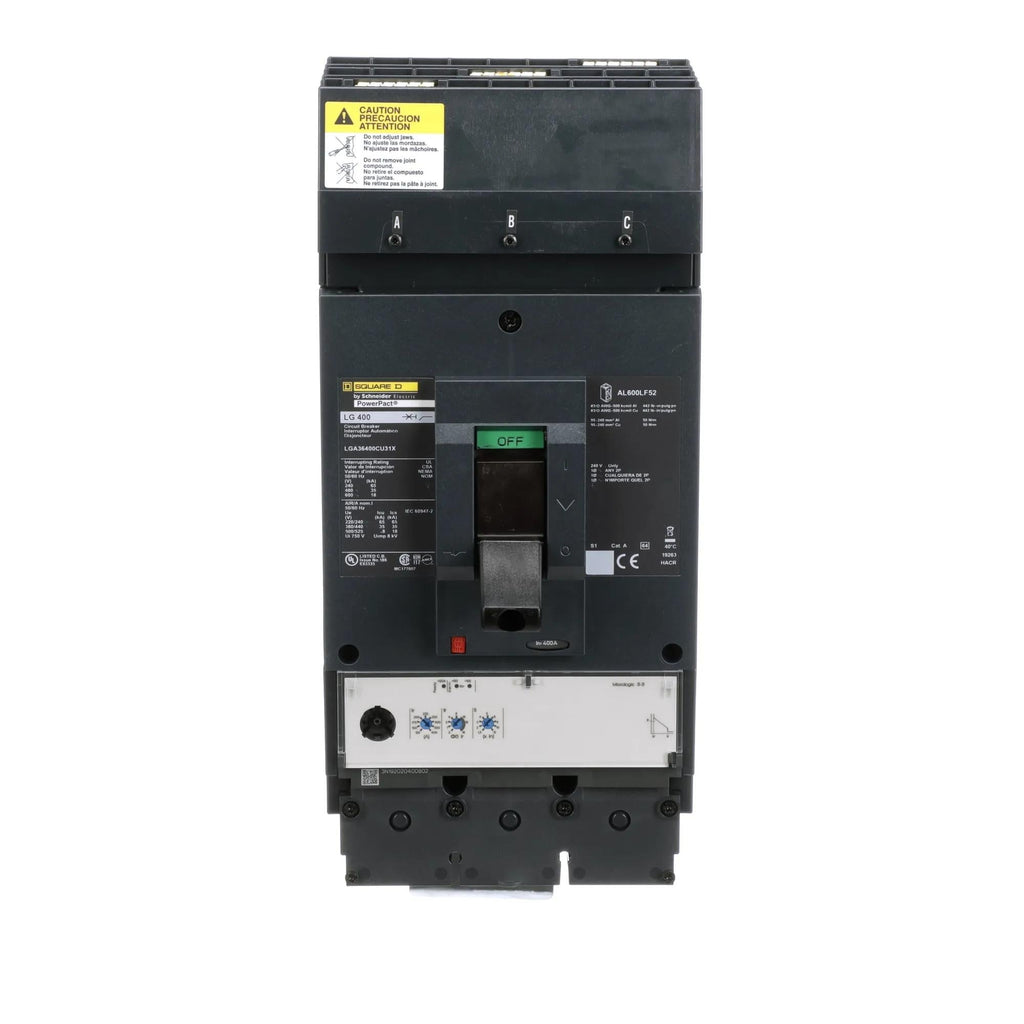

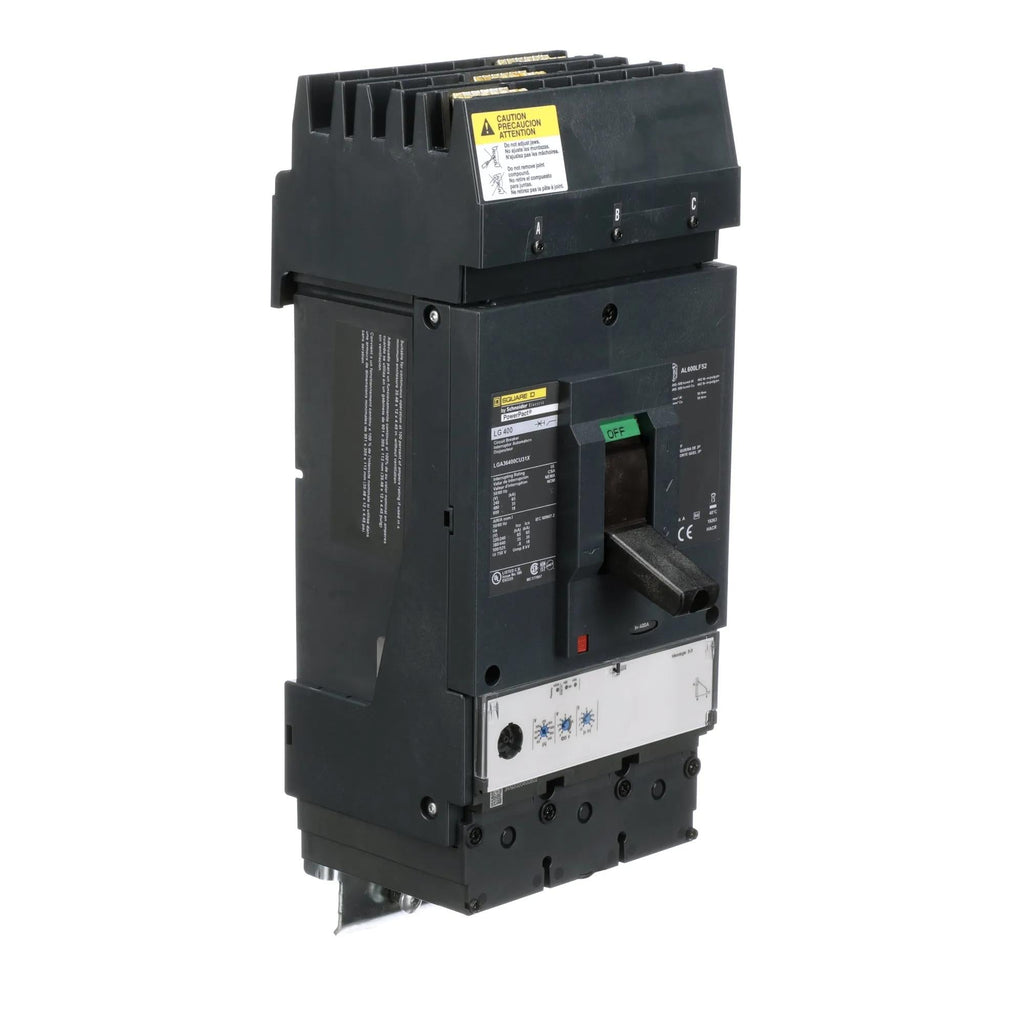

LGA36400CU31X - Schneider Electric PowerPact L 400A 3 Pole 600V Circuit Breaker I-Line Micrologic 3.3

LGA36400CU31X

LGA36400CU31X is a Schneider Electric PowerPact L molded case circuit breaker designed for 400 amp, 3-pole, 600 VAC applications with I-Line mounting and Micrologic 3.3 trip unit.This circuit breaker features a 65 kA interrupt rating at 240 VAC, 35 kA at 480 VAC, and 18 kA at 600 VAC, providing reliable protection against overloads and short circuits. It is UL 489 listed and certified to CSA, IEC, CE, NEMA, and other standards. The breaker is 100% rated and designed for use as a main panel disconnect or in control panels with common accessories across the range.

Key Specifications
• Amperage: 400 Amp
• Voltage: 600 VAC Maximum
• Poles: 3 Pole
• Mounting Type: I-Line
• Interrupt Rating: 65 kA @ 240V, 35 kA @ 480V, 18 kA @ 600V
• Frame Type: PowerPact L
• Trip Unit: Micrologic 3.3
• UL Listing: UL 489
• Certifications: CSA, IEC, CE, NEMA, CCC, NMX, VDE, BS
• 100% Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right pr(more...)

Specifications

• Part Number: LGA36400CU31X
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : LGA
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : I-Line, Lug
• Frame Size : L Frame
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• MCM Size : 442.5 lbf.in (50 N.m) 0.1…0.4 in² (70…240 mm²) (AWG 2/0...500 kcmil)
• Breaker Type : 100% rated
• Protection : Solid State
• Trip Type : MicroLogic 3.3 100% rated

Product Data

• UPC : 785901629405
• GTIN : 00785901629405
• Country of Origin : Mexico
• Dimensions : 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
• Weight : 18.931 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 2 x AWG 2/0...500 kcmil aluminium/copper
