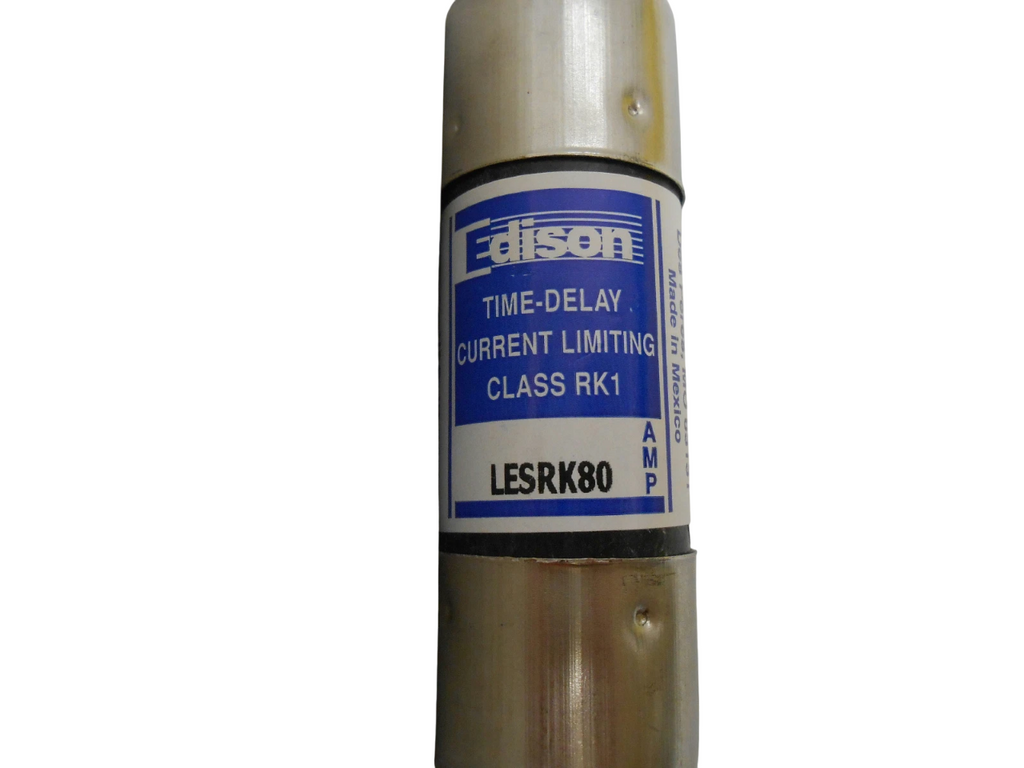

LESRK80 - Edison Fuses 80A 600V Class RK1 Time-Delay Dual Element Fuse

LESRK80

LESRK80 is an 80 amp, 600 volt Class RK1 time-delay dual-element fuse from Edison Fuses designed for reliable circuit protection.This LESRK80 fuse features current-limiting technology for maximum short-circuit protection and is UL and CSA certified. It provides high inrush current motor protection with time-delay allowing 130% full load amperage sizing for backup motor protection. The fuse has electrically isolated end caps and a 200kA interrupt rating at 600 volts. It is a single-pole, low voltage fuse suitable for industrial and commercial applications.

Key Specifications
• Amperage: 80A
• Voltage Rating: 600V AC
• Fuse Type: Class RK1
• Time-Delay: Dual Element
• Interrupt Rating: 200kA RMS Symmetrical at 600V
• Poles: 1
• Mounting Type: Cartridge/Barrel
• Certifications: UL 248-12, CSA C22.2 No. 248.12
• Diameter: 1.11 inches
• Length: 7.88 inches
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LESRK80
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LESRK Series
• Type : LESRK
• Voltage : 600
• Amperage : 80
• AIC rating : 200kA@600V
• Diameter : 1.11
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 782634548430
• GTIN : 00782634548430
• Dimensions : 7.88 in x 1.11 in x 1.11 in (Length/Depth x Height x Width)
• Weight : 2.2
