Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
LESRK600

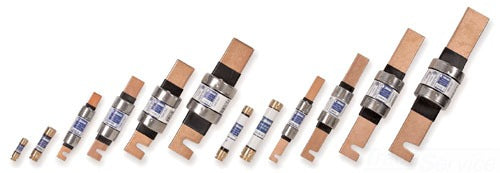

LESRK600 is a 600A, 600V Class RK1 dual-element, time-delay fuse from Edison Fuses designed for reliable circuit protection.This LESRK600 fuse features current-limiting technology for maximum short-circuit protection and is suitable for feeder and branch circuit applications. It offers a 200kA interrupt rating at 600VAC, with UL and CSA certifications. The fuse has a knife blade mounting type and provides Type 2 protection for IEC and NEMA starters when properly sized. Its time-delay characteristic allows 130% full load amperage sizing for motor backup protection, with low watt loss and electrically isolated end caps.
- Key Specifications
- Amperage: 600A
- Voltage Rating: 600VAC
- Fuse Class: RK1
- Fuse Type: Dual-Element, Time-Delay
- Interrupt Rating: 200kA RMS Symmetrical
- Mounting Type: Knife Blade
- Length: 13.38 inches
- Diameter: 2.88 inches
- Certifications: UL 248-12, CSA C22.2 No. 248.12, CE
- Agency Listings: cULus Listed
- Features: Current-limiting, Type 2 protection, low watt loss
- Part Number: LESRK600
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LESRK Series
- Type : LESRK
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Diameter : 2.88
- Class Rating : RK1
- Barrels : 1
- UPC : 782634548584
- GTIN : 00782634548584
- Dimensions : 13.38 in x 2.88 in x 2.88 in (Length/Depth x Height x Width)
- Weight : 3.44
