Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
LESRK500

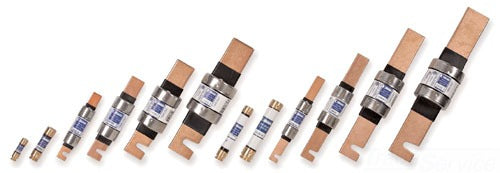

LESRK500 is a 600V 500A Class RK1 time-delay fuse from the Edison LESRK series, designed for reliable circuit protection in industrial and commercial applications. This fuse features a dual-element, time-delay design for high inrush current motor protection and current-limiting performance. It is suitable for feeder and branch circuit protection, with electrically isolated end caps and a knife blade mounting style for secure installation.
- Amperage: 500A
- Voltage Rating: 600V AC
- Mounting Type: Knife Blade
- Interrupt Rating: 200kA RMS Symmetrical
- Series: LESRK
- Fuse Type: Class RK1
- Response Time: Time-Delay
- Agency Certifications: UL, CSA
- Diameter: 2.88 inches
- Length: 13.38 inches
- Application: Motor, Feeder, Branch Circuit Protection
- End Caps: Electrically Isolated
Specifications
- Part Number: LESRK500
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LESRK Series
- Type : LESRK
- Voltage : 600
- Amperage : 500
- AIC rating : 200kA@600V
- Diameter : 2.88
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 78263454857
- GTIN : 00782634548577
- Dimensions : 13.38 in x 2.88 in x 2.88 in (Length/Depth x Height x Width)
- Weight : 3.44
