LENRK70 - Edison Fuses 70A 250V Class RK1 Dual-Element Time-Delay Fuse

LENRK70

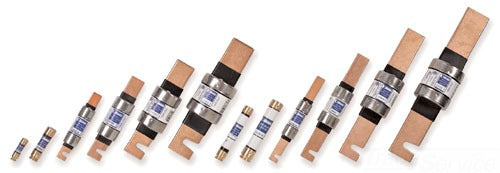

LENRK70 is a 70 amp, 250 volt Class RK1 dual-element time-delay fuse from Edison Fuses designed for low voltage circuit protection.This LENRK70 fuse features current limiting for maximum short-circuit protection, Type 2 protection for IEC and NEMA starters, and a high interrupt rating of 200kA RMS symmetrical at 250V AC. It is a single barrel fuse with a diameter of approximately 1.1 inches, providing reliable motor and circuit protection with time-delay characteristics that allow 130% full load amperage sizing.

• Amperage: 70A
• Voltage Rating: 250V AC / 125V DC max
• Fuse Type: Class RK1
• Fuse Style: Dual-element, time-delay
• Interrupting Rating: 200kA RMS symmetrical at 250V AC
• Mounting Type: Plug-in (single barrel)
• Diameter: 1.1 inches
• Agency Certifications: UL Listed, cULus, CE, CSA
• Provides Type 2 motor starter protection
• Low watt loss for energy efficiency

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LENRK70
• Manufacturer : Edison Fuses
• Brand : Edison Fuses
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : LENRK
• Type : LENRK
• Voltage : 250
• Amperage : 70
• AIC rating : 200kA@250V
• Connection : Plug-In
• Diameter : 1.1
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 782634538424
• GTIN : 00782634538424
• Dimensions : 5.88 in x 1.1 in x 1.1 in (Length/Depth x Height x Width)
• Weight : 0.001
