Product Info
- Manufacturer:Edison Fuses
Description
LENRK0.2

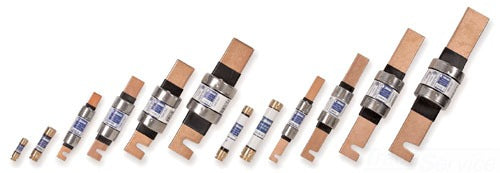

LENRK0.2 is a 0.2 amp, 250 VAC Class RK1 dual-element time-delay fuse from Edison Fuses designed for reliable circuit protection.This fuse features a dual-element spring-trigger construction allowing 125% full load amperage sizing for motor backup protection. It provides superior overload and cycling capabilities with extremely current-limiting characteristics, ensuring excellent short circuit component protection. Rated for 250 VAC and 200,000 RMS symmetrical amps interrupting capacity, it is UL Listed and CSA Certified for safety and performance.
- Key Specifications
- Amperage: 0.2 A
- Voltage Rating: 250 VAC
- Fuse Type: Class RK1 Dual-Element Time-Delay
- Interrupting Rating: 200,000 RMS Symmetrical Amps
- Mounting Type: Cartridge
- Trip Unit: Time-Delay
- Agency Approvals: UL Listed, CSA Certified
- Current Limiting: Yes
- Application: Motor and general-purpose circuit protection
Specifications
- Part Number: LENRK0.2
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
Product Data
- Weight : 0.1
