Description
LEN01B003120B

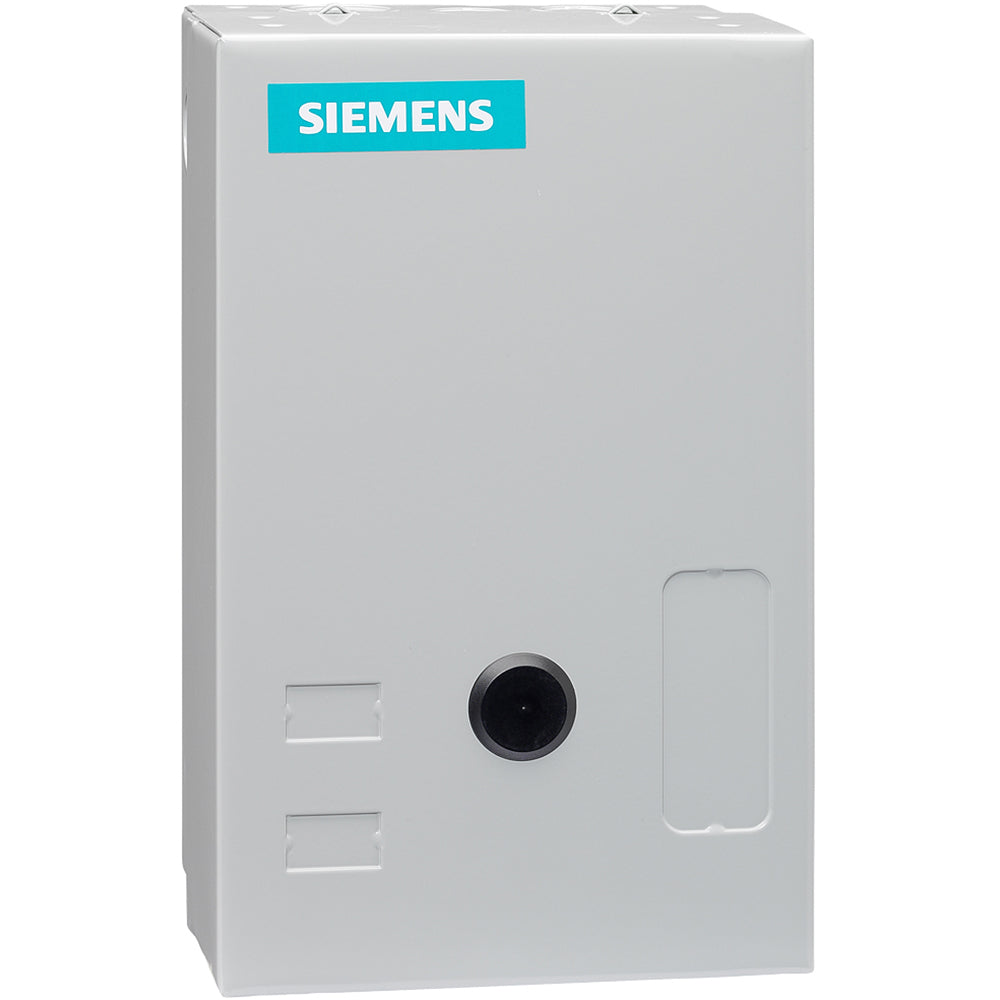

LEN01B003120B is a Siemens Class LEN electrically held lighting contactor rated for 20 amps and 600 volts with 3 normally open poles.LEN01B003120B features a 110/120 VAC coil operating at 50/60 Hz, designed for indoor general purpose motor control applications. It is a non-combination type contactor with screw terminal connections and a NEMA type 1 enclosure for surface mounting.
- Amperage Rating: 20 A
- Voltage Rating: 600 VAC maximum
- Coil Voltage: 110 V at 50 Hz / 120 V at 60 Hz
- Poles: 3 Normally Open (3 NO, 0 NC)
- Mounting Type: Surface mount
- Contact Configuration: Electrically held, mechanical
- Enclosure: NEMA type 1, indoor use
- Terminal Connection: Screw type
- Power Rating: 4.8 W coil power, 12000 W load power
- Standards: cULus Listed
- Application: Motor controls, lighting contactor
Specifications
- Part Number: LEN01B003120B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 20
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
Product Data
- UPC : 040892859720
- GTIN : 00040892859720
- Country of Origin : Germany
- Weight : 5.82
