2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
LDC400

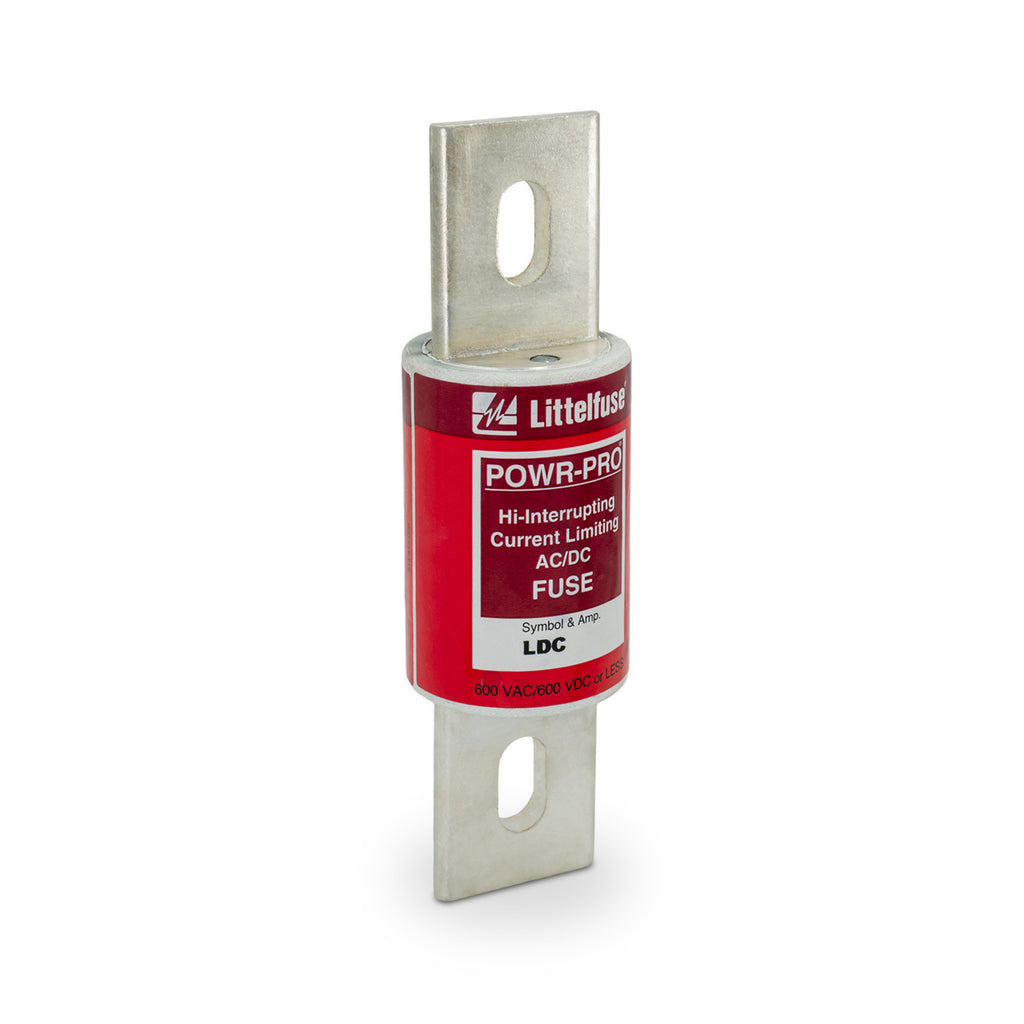

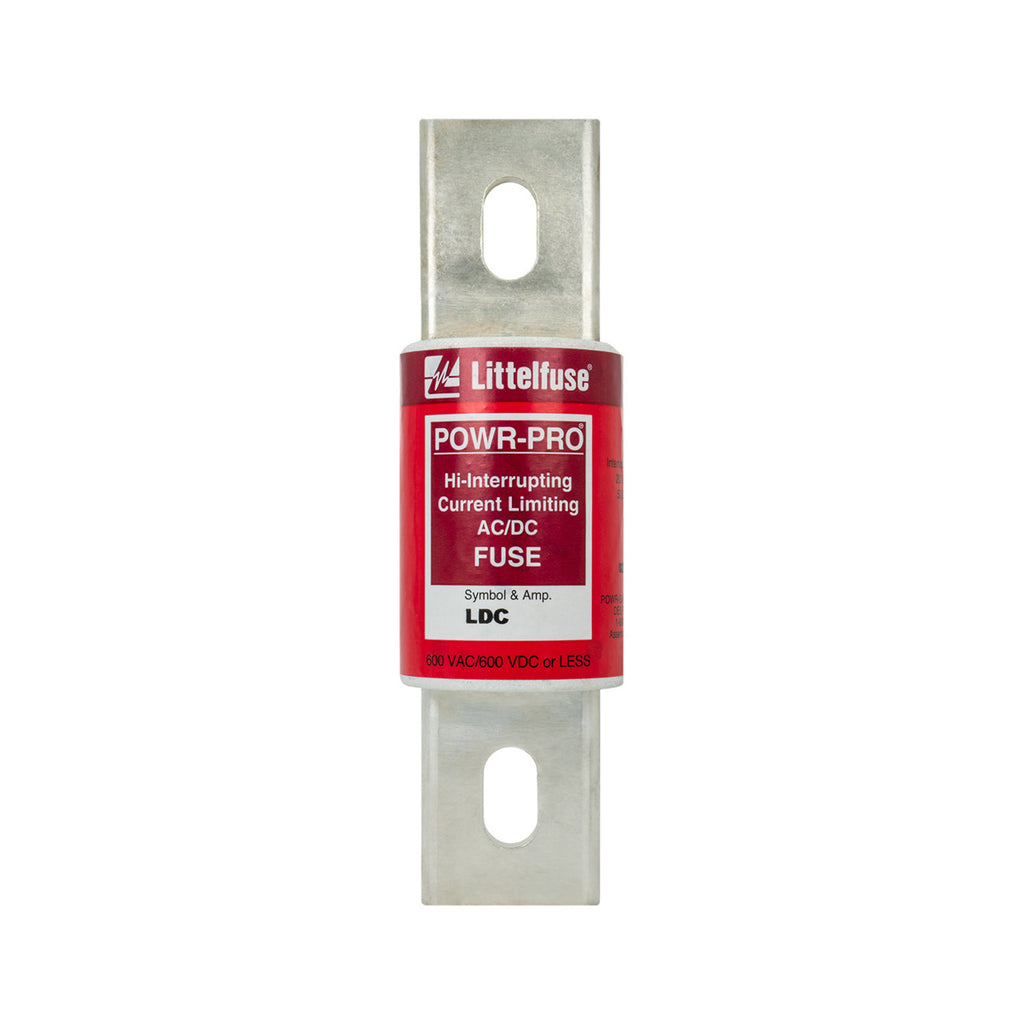

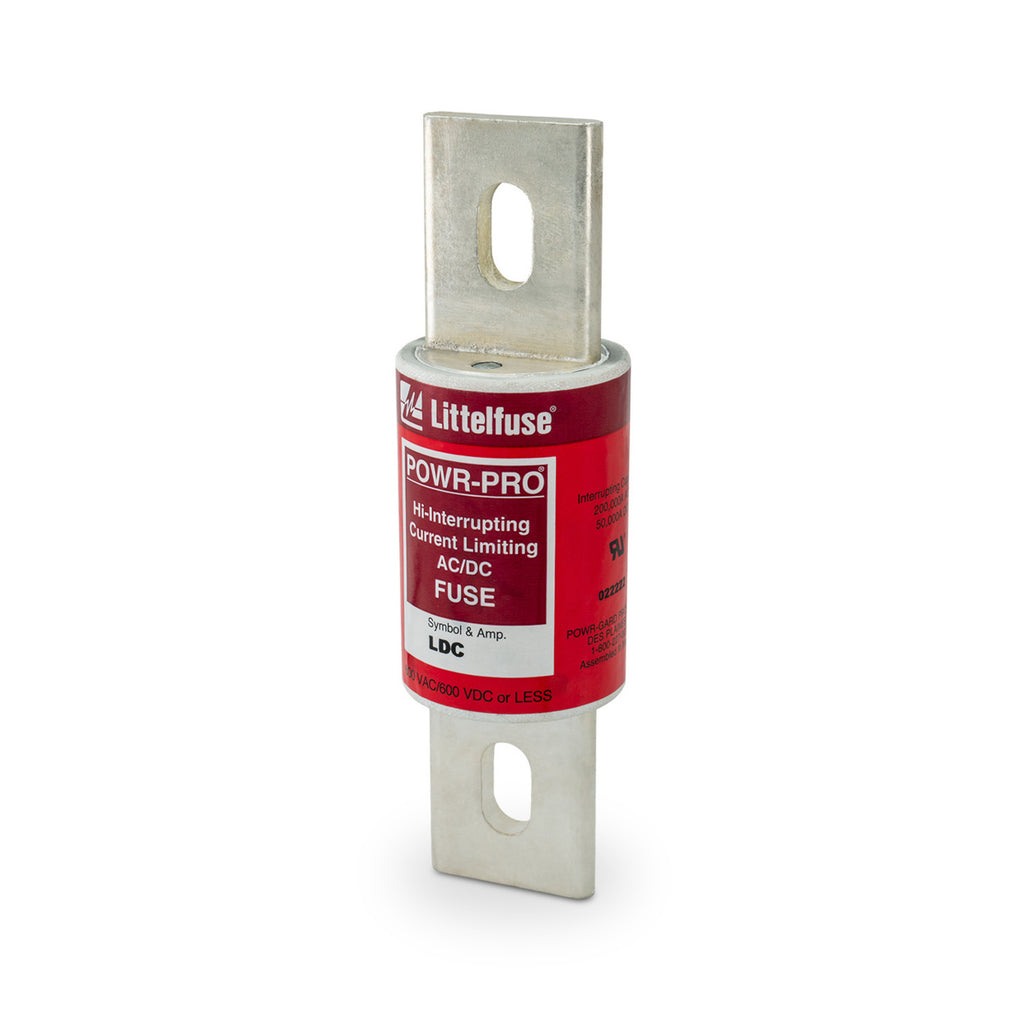

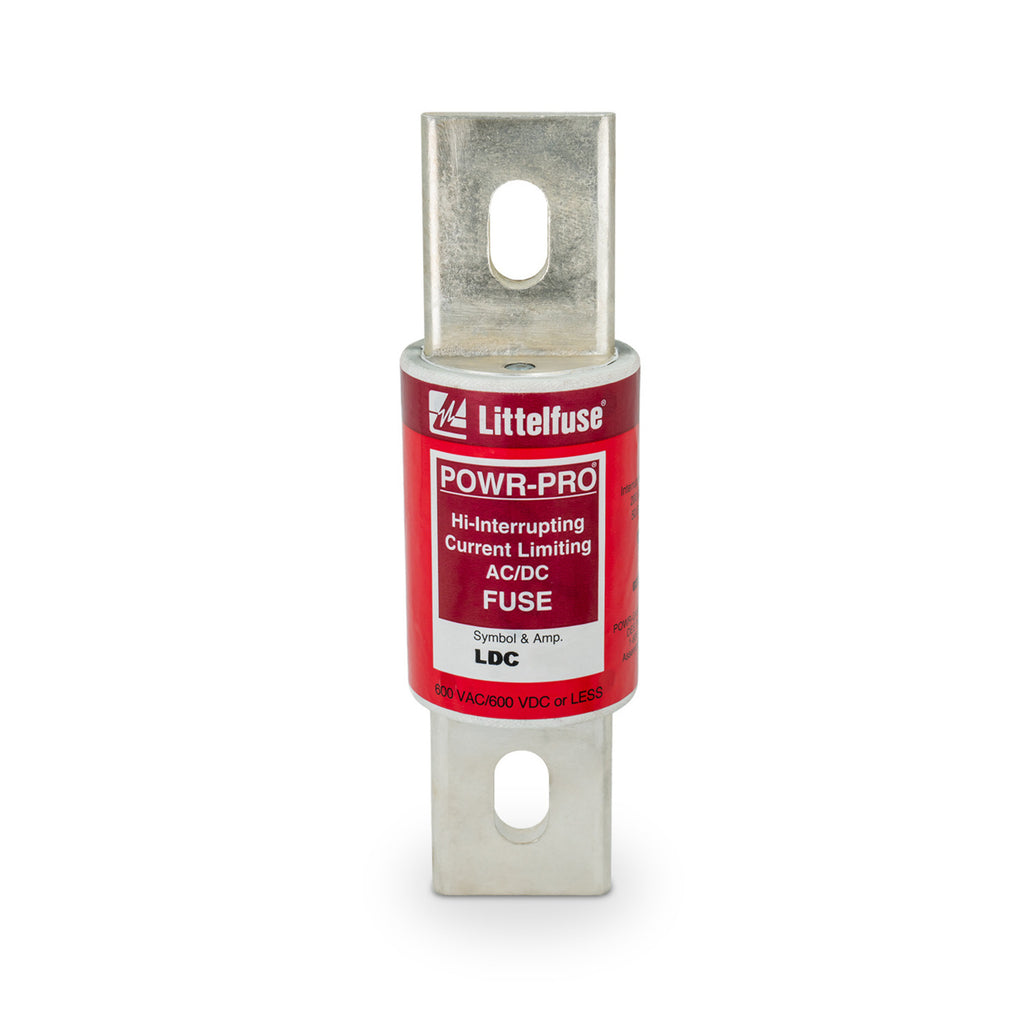

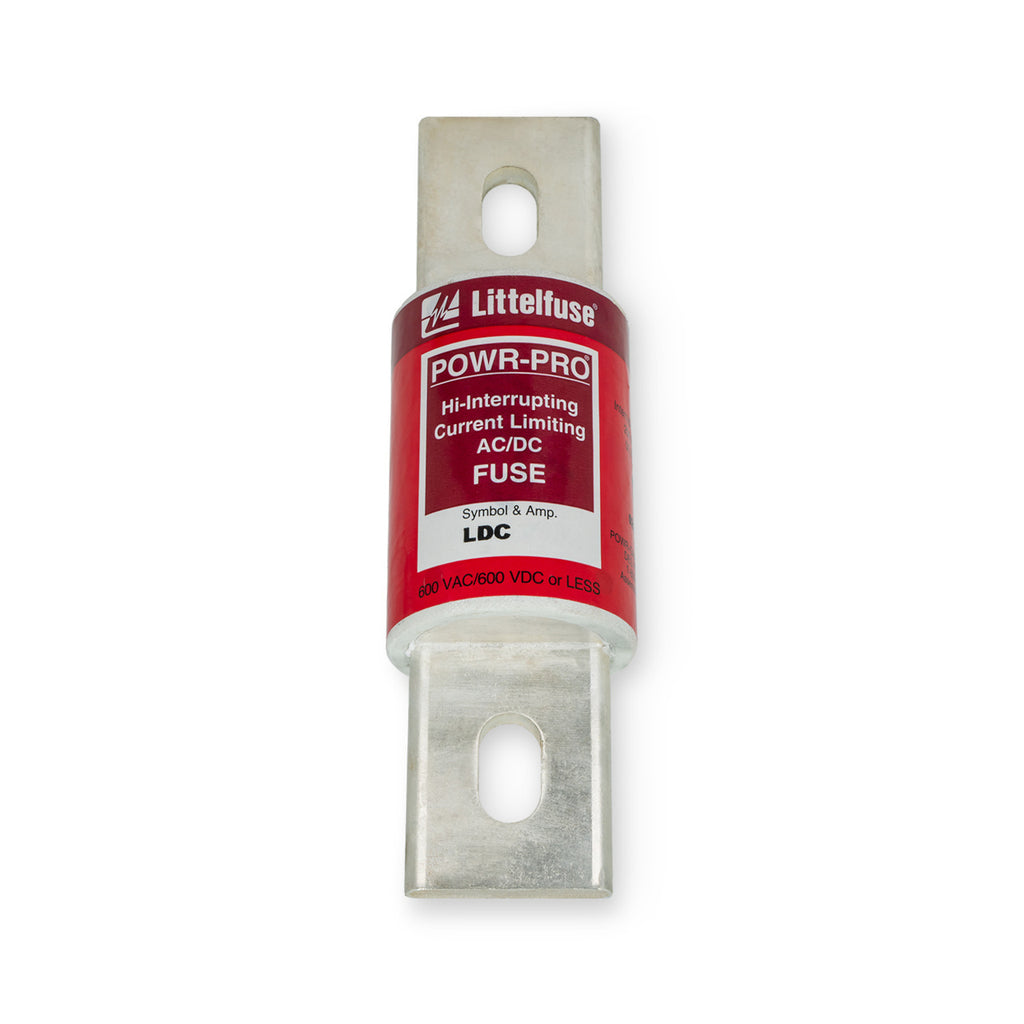

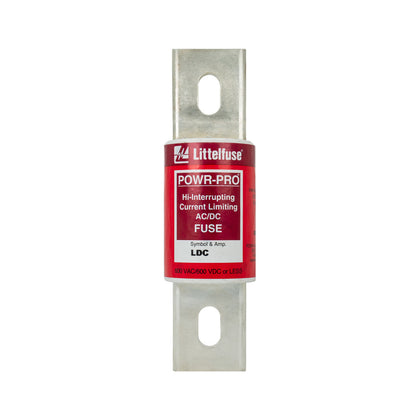

LDC400 is a Littelfuse Class L fuse rated for 400 amps and 600 volts AC/DC, designed for fast acting and extremely current limiting protection.LDC400 features a melamine body with silver plated copper end bells, measuring 2 1/2" diameter by 8 5/8" length. It is UL Class L listed and CSA approved, suitable for both AC and DC applications with a high interrupting rating of 200,000 AIC at 600 VAC and 50,000 AIC at 600 VDC. This fuse provides POWR-PRO® performance and is ideal for medium voltage circuits requiring reliable overcurrent protection.
- Key Specifications
- Amperage: 400 Amps
- Voltage Rating: 600 Volts AC/DC
- Fuse Type: UL Class L
- Fuse Response: Fast Acting
- Interrupting Rating: 200,000 AIC @ 600 VAC, 50,000 AIC @ 600 VDC
- Physical Size: 2 1/2" Diameter x 8 5/8" Length
- Body Material: Melamine
- End Bells: Silver Plated Copper
- Certifications: UL 248-10, CSA Approved
- Series: LDC
Specifications
- Part Number: LDC400
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : LDC
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 079458002584
- GTIN : 00079458002584
- Weight : 3
