Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
LDC-600

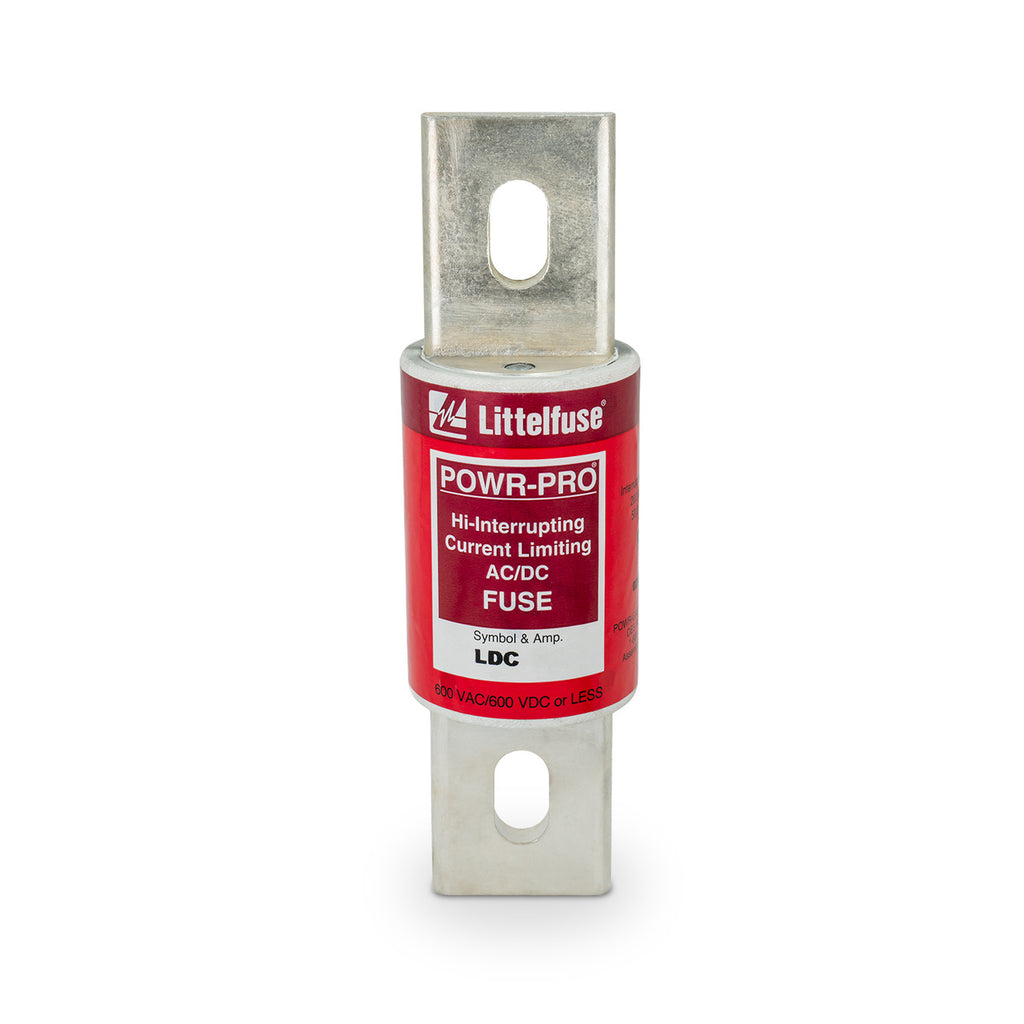

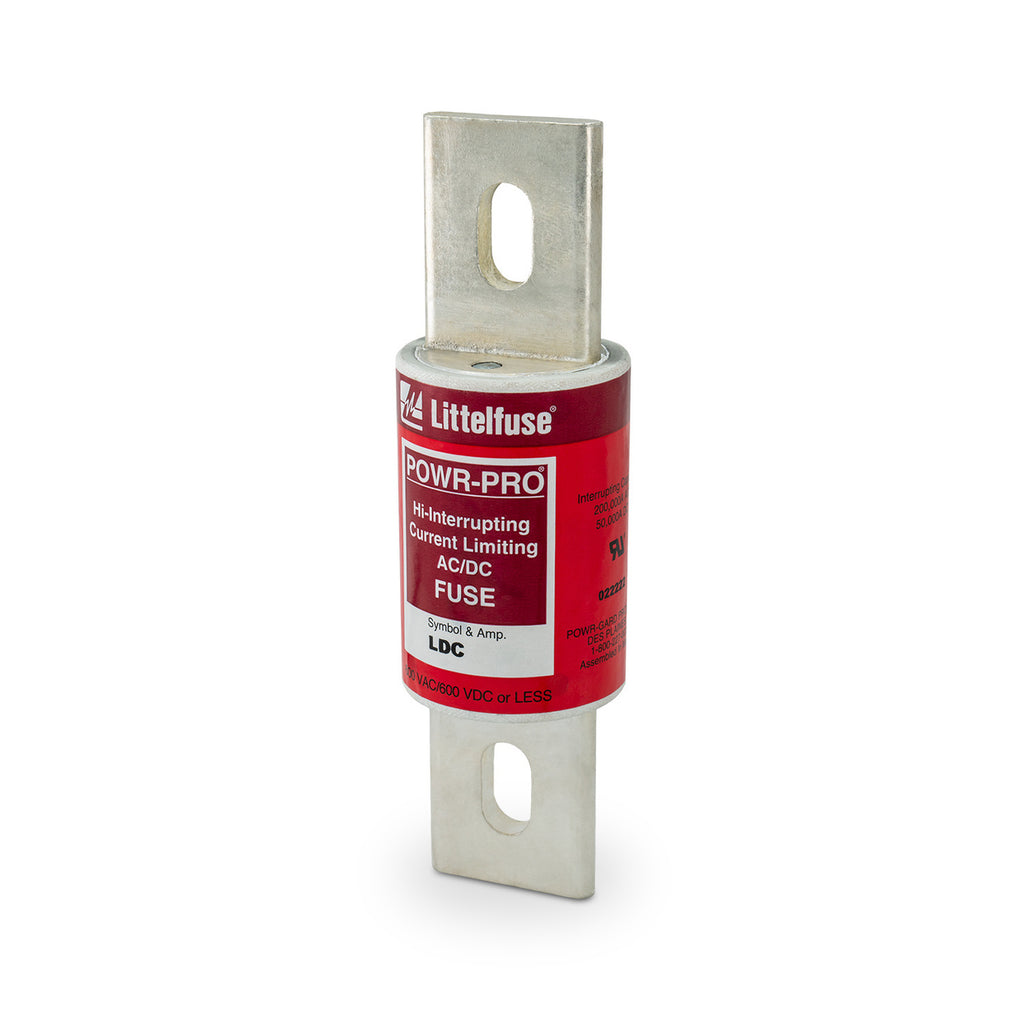

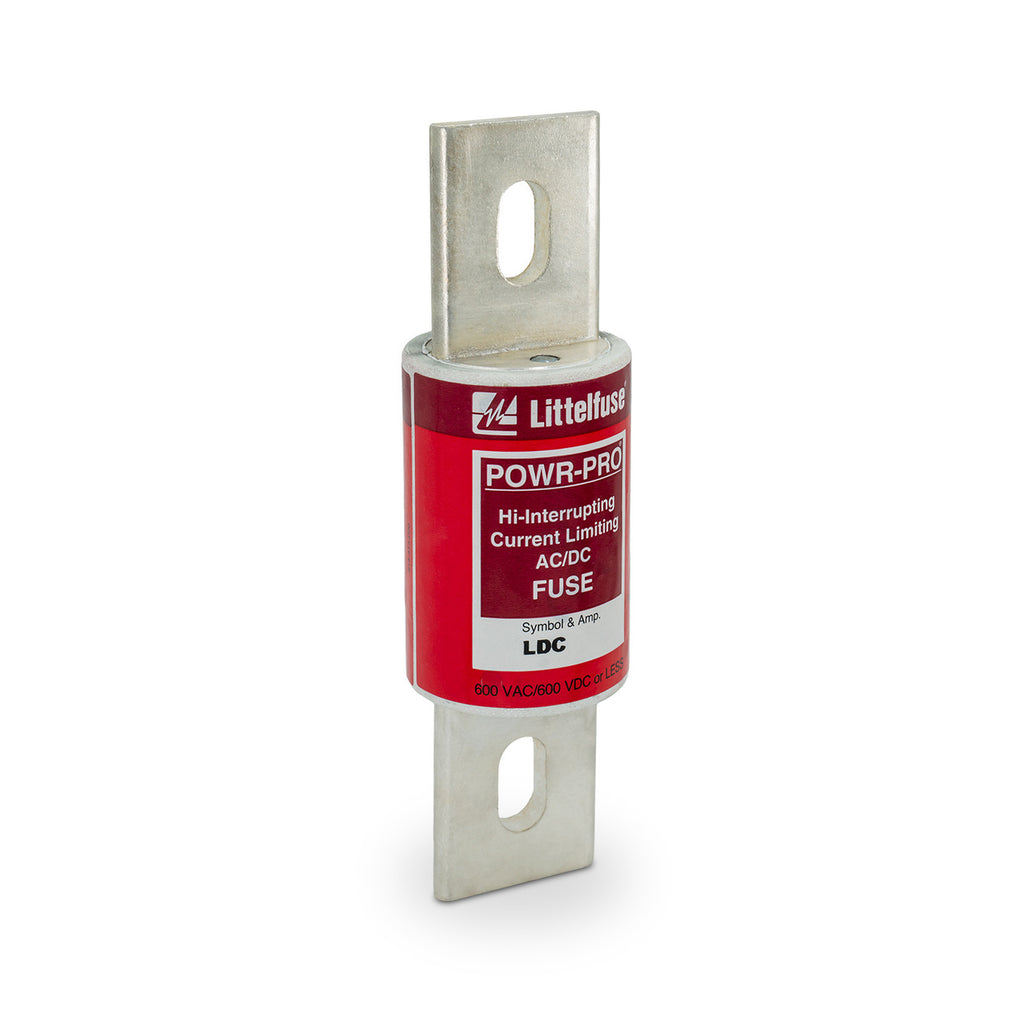

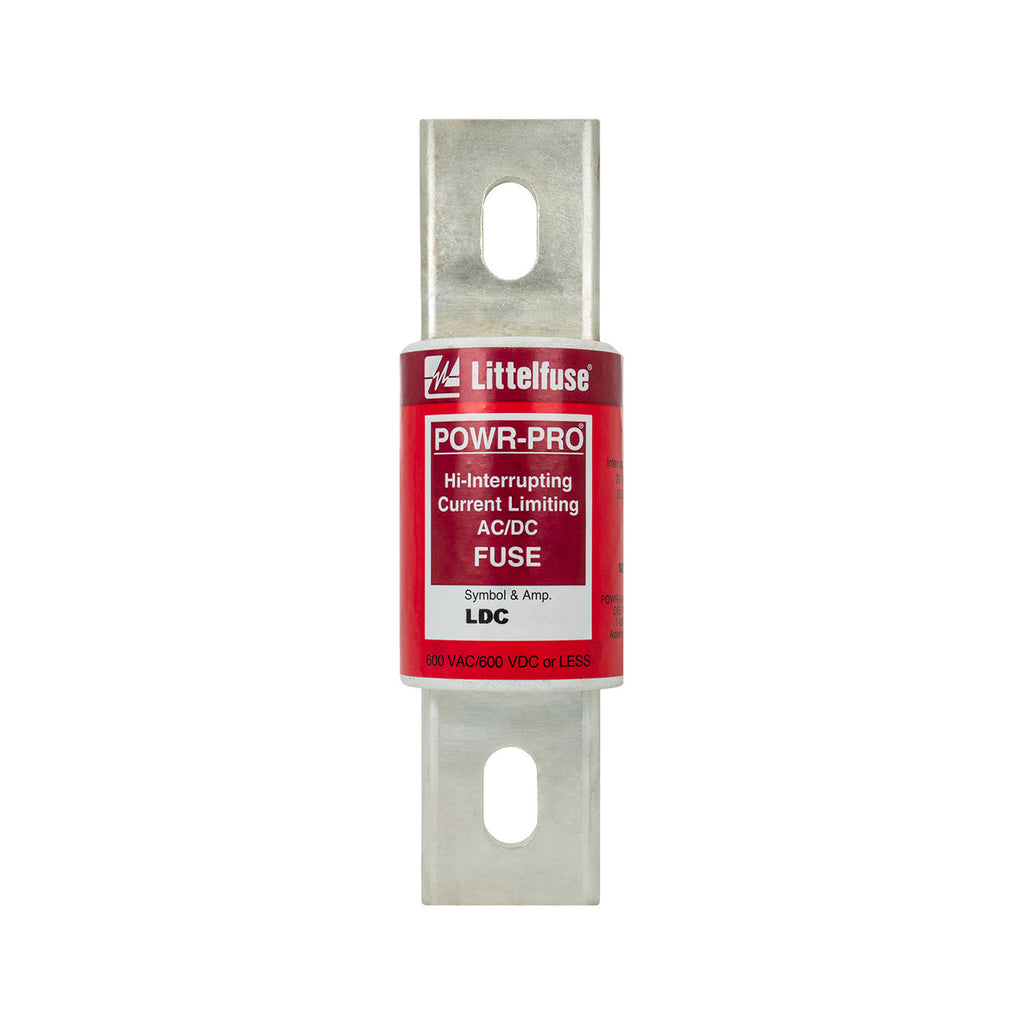

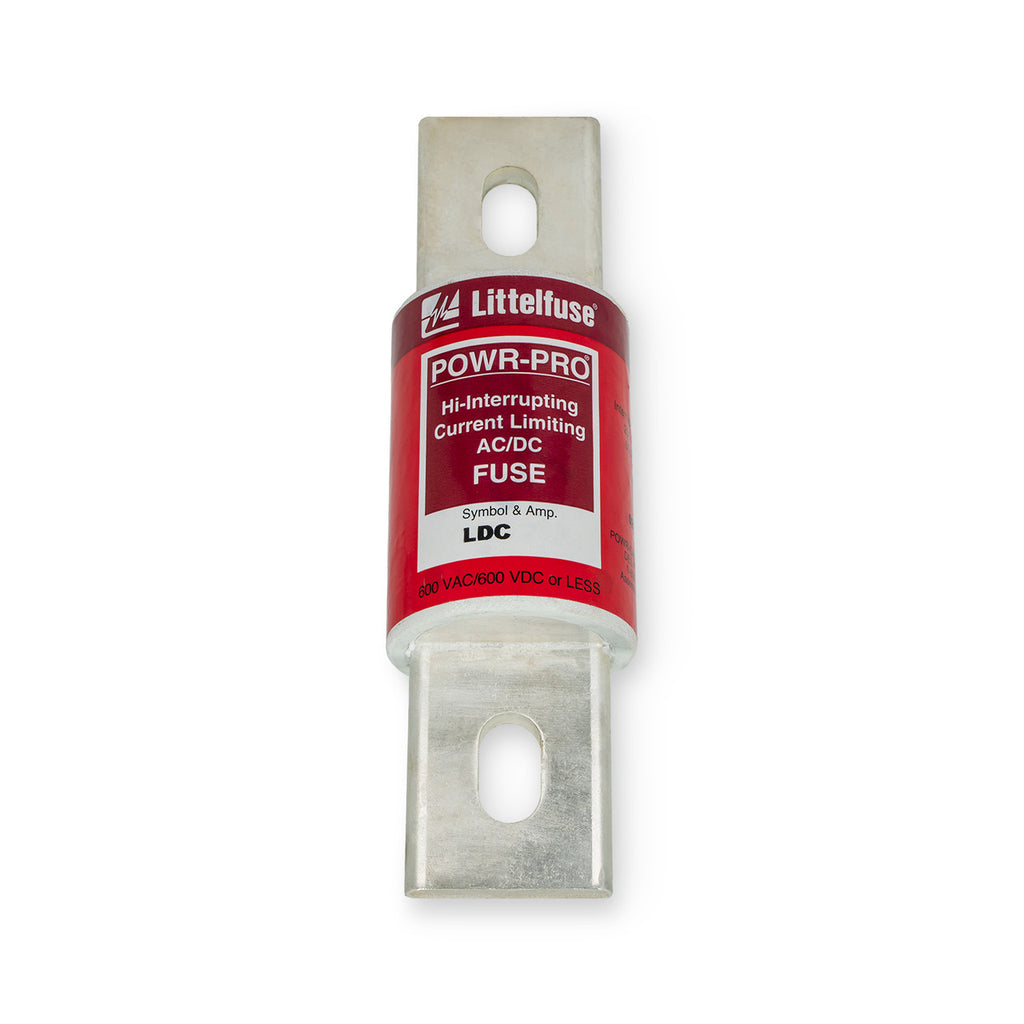

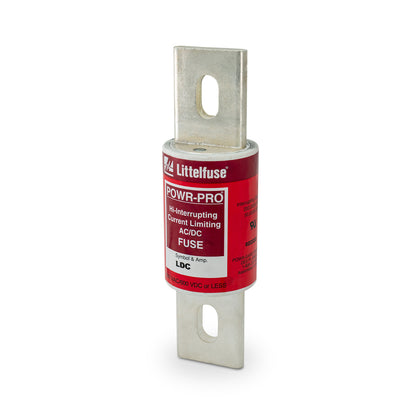

LDC-600 is a Littelfuse Class L fuse rated for 600 Amps and 600 Volts AC/DC, designed for fast-acting, extremely current-limiting protection.This fuse features a melamine body with silver-plated copper end bells, ideal for both AC and DC applications, including UPS, DC distribution, and mass transit systems.
- Key Specifications
- Amperage: 600 Amps
- Voltage Rating: 600 Volts AC/DC
- Interrupting Rating: 200,000 AIC @ 600 VAC, 50,000 AIC @ 600 VDC
- Fuse Class: UL Class L
- Fast Acting, Extremely Current Limiting
- Mounting Type: Bolt-In Connection
- Physical Size: 2 1/2" x 8 5/8"
- Body Material: Melamine
- End Bells: Silver Plated Copper
- Certifications: UL Listed, CSA Certified
- Series: POWR-PRO® Performance
Specifications
- Part Number: LDC-600
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Diameter : 2.38
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 007945800261
- GTIN : 00079458002614
- Weight : 2
