Product Info
- Manufacturer:Siemens
- Sub-Category:Trip Units & Programmers
Description
LD63T600

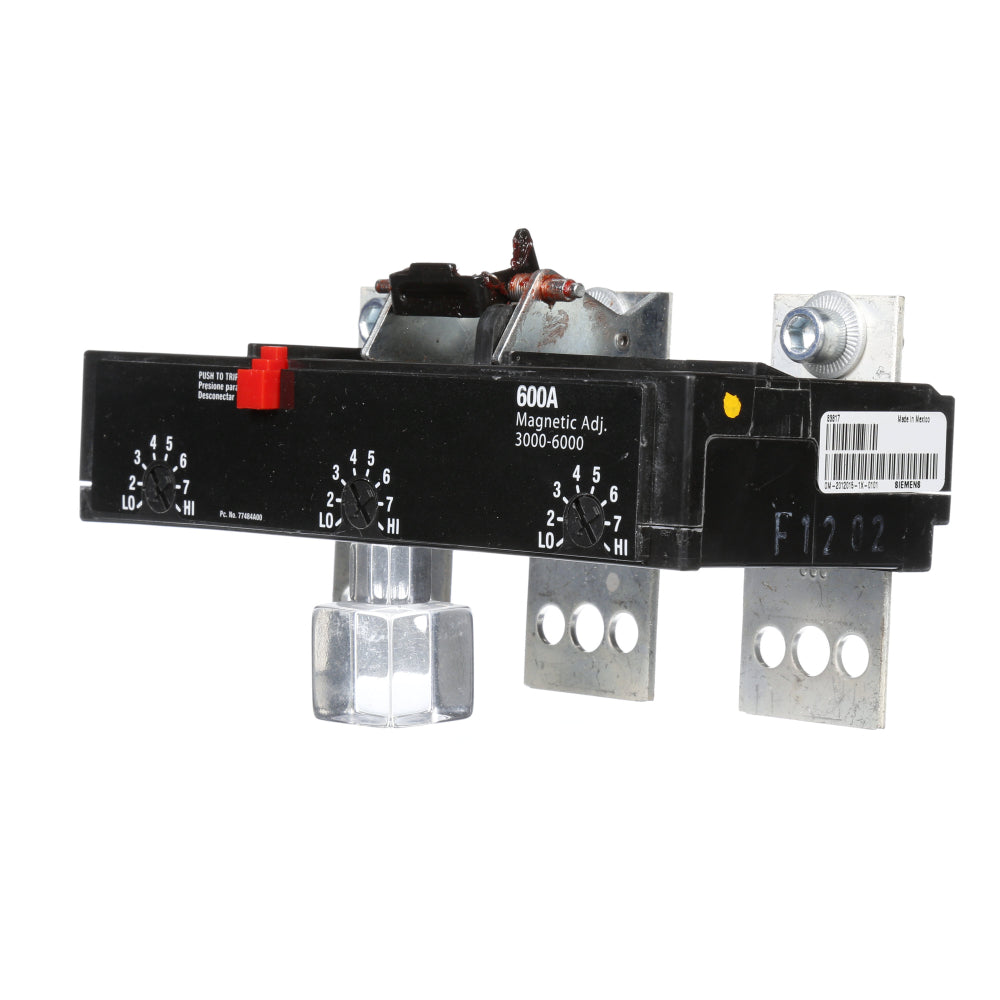

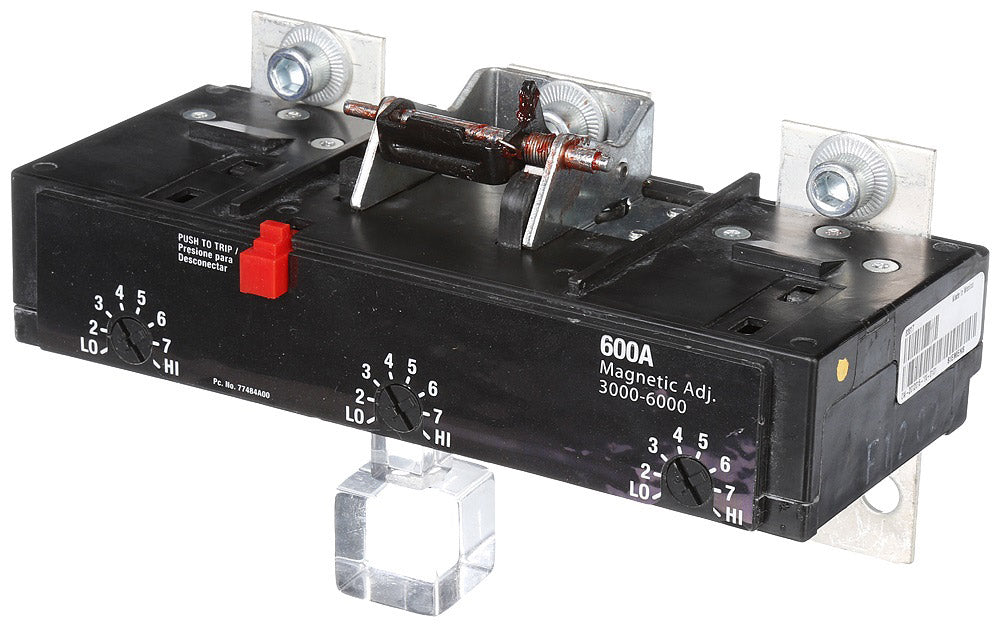

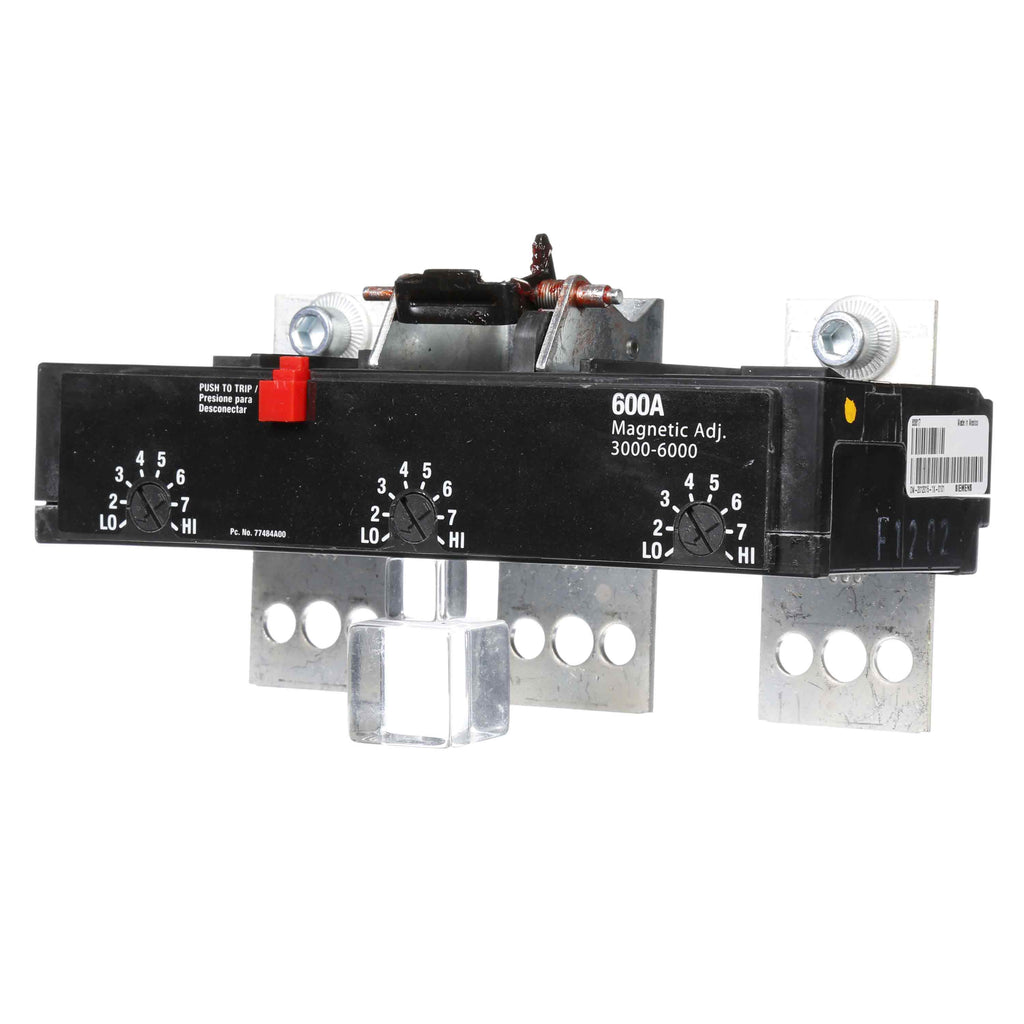

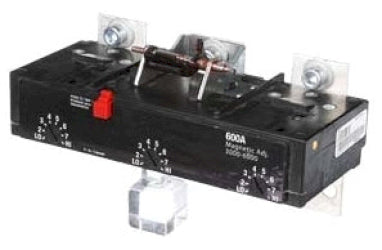

LD63T600 is a Siemens 3-pole molded case circuit breaker trip unit rated for 600 Amps and 600 Volts. It is designed for reliable circuit protection in industrial and commercial applications.LD63T600 features an interchangeable thermal magnetic trip unit compatible with the LD6 series frame, providing robust protection with a 25 kA interrupt rating at 600V and 35 kA at 480V. The breaker measures approximately 5.7 inches high, 8.8 inches wide, and 5.4 inches deep.
- Key Specifications
- Current Rating: 600 Amps
- Voltage Rating: 600 Volts
- Poles: 3
- Interrupt Rating: 25 kA @ 600V, 35 kA @ 480V
- Type: Interchangeable Thermal Magnetic Trip Unit
- Series/Frame: LD6 Series Molded Case
- Dimensions: 5.7" H x 8.8" W x 5.4" D
- Mounting Type: Molded Case
- Certifications: UL Listed
Specifications
- Part Number: LD63T600
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Trip Units & Programmers
- Family : Sentron Series
- Type : Sentron
- Voltage : 600V
- Amperage : 600
- Poles : 3
- AIC rating : 25kAIC at 600V, 35kAIC at 480V
- Functions : LI - Long Time and Instantaneous Trip
- Frame Size : 600
- Amperage Maximum : 600
- Amperage Minimum : 600
- Protection : Thermal Magnetic
- Compatible Frames : LD
Product Data
- UPC : 783643214149
- GTIN : 00783643214149
- Country of Origin : Mexico
- Weight : 2.599
- Standards : RoHS
- Certification : UL, IEC
- Wire Size : AWG 3/0 to 500KCM, Cu, AWG 4/0 to 500KCM, Al
