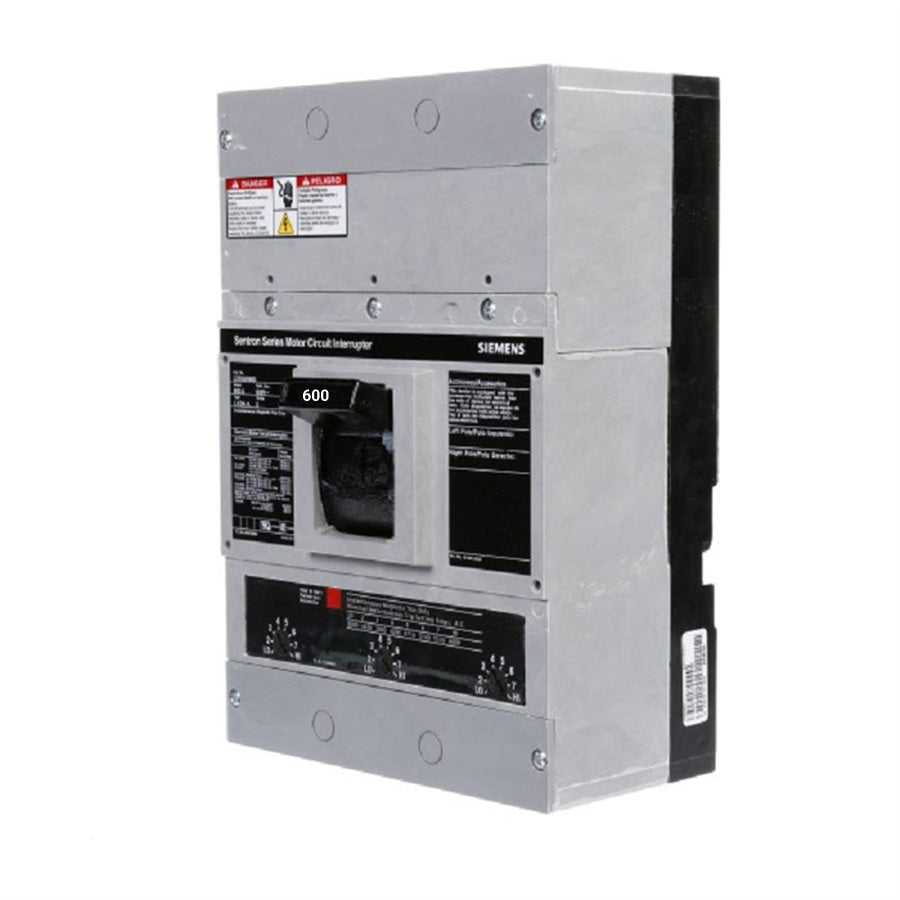

LD63B600 - Siemens 600A 600V 3-Pole Molded Case Circuit Breaker LD Frame Thermal Magnetic

LD63B600

LD63B600 is a Siemens 600A 600V 3-pole molded case circuit breaker with LD frame and thermal magnetic trip unit, designed for reliable power distribution protection. This Siemens LD63B600 molded case circuit breaker features a 600A current rating, 600VAC/500VDC voltage rating, and 3-pole configuration. It is built with an LD frame and a thermal magnetic trip unit for dependable circuit protection. The breaker meets UL 489 and IEC 60947-2 standards and offers a standard interrupting capacity of 25kAIC at 600V and 35kAIC at 480V. Suitable for use in industrial and commercial power distribution systems, it supports interchangeable trip units and is rated for standard 40°C operation.

• Part Number: LD63B600
• Manufacturer: Siemens
• Amperage: 600A
• Voltage: 600VAC, 500VDC
• Poles: 3
• Frame: LD
• Interrupt Rating: 25kAIC @ 600V, 35kAIC @ 480V
• Series: Sentron
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic, Interchangeable
• Certifications: UL 489, IEC 60947-2
• Operating Temperature: Standard 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LD63B600
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : LD
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : LD Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 783643213906
• GTIN : 00783643213906
• Country of Origin : Mexico
• Weight : 20.247
• Certification : IEC, UL
• Wire Size : 3/0 AWG to 500 KCM (CU), 4/0 AWG to 500 KCM (AL)
