Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
LD3400W

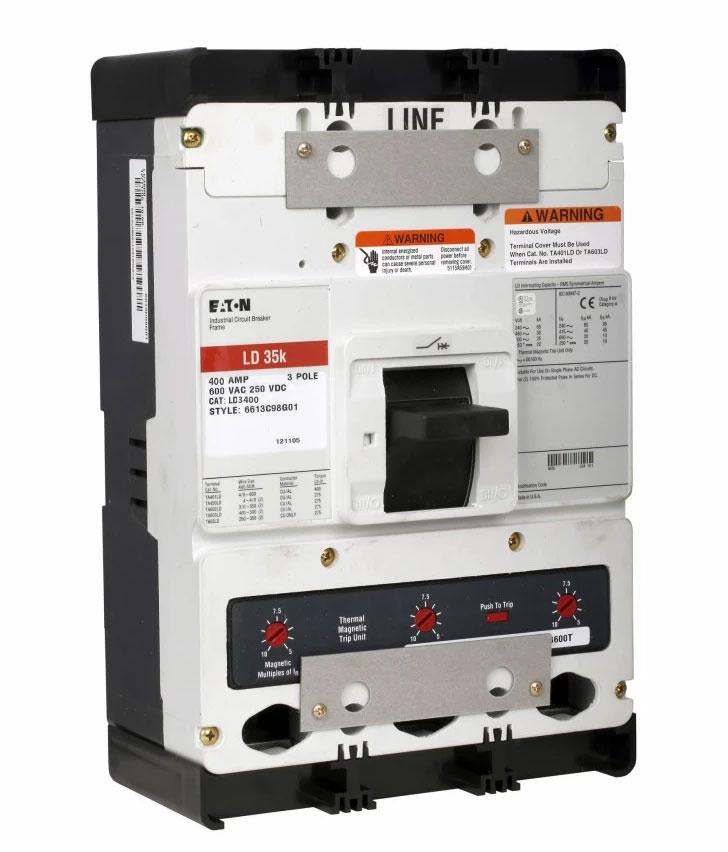

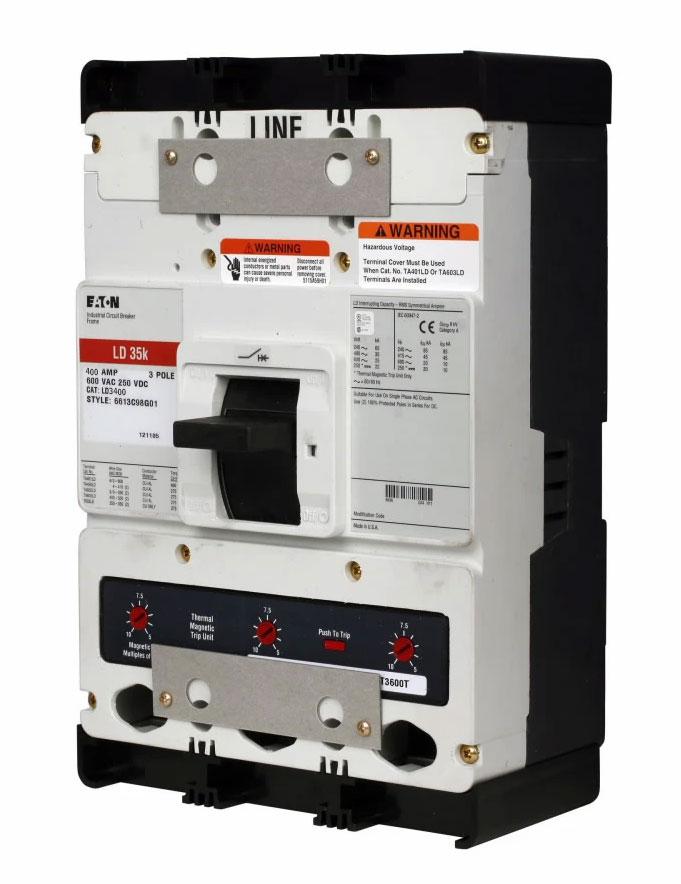

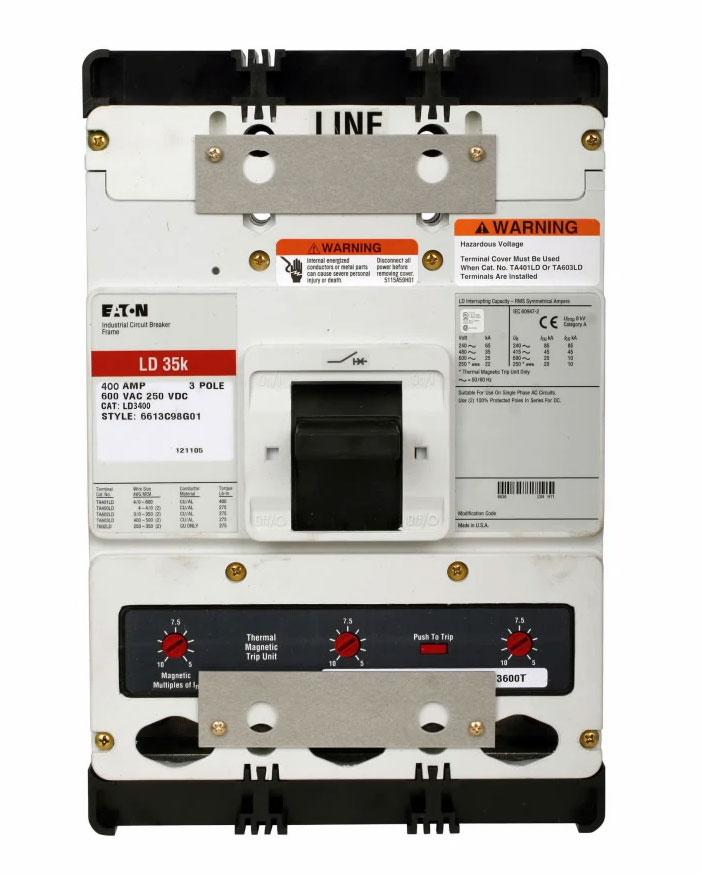

LD3400W is a three-pole, 400 amp, 600 volt molded case circuit breaker from Eaton's Series C, designed for reliable protection in commercial and industrial power distribution systems. This L-frame breaker features a bolt-on mounting style and a thermal magnetic trip unit with long-time and instantaneous protection. The LD3400W is a complete molded case circuit breaker with fixed thermal and magnetic trip functions, suitable for both AC and DC applications. It offers a 35 kAIC interrupt rating at 480 Vac and 65 kAIC at 240 Vac, making it ideal for a wide range of electrical environments. The breaker is constructed with aluminum terminals and is rated for 50/60 Hz operation.
- Part Number: LD3400W
- Manufacturer: Eaton
- Series: Series C
- Frame: L-Frame
- Poles: 3
- Amperage: 400 A
- Voltage: 600 Vac, 250 Vdc
- Mounting Type: Bolt-On
- Interrupt Rating: 35 kAIC at 480 Vac, 65 kAIC at 240 Vac
- Protection Type: Thermal Magnetic
- Functions: LI - Long-Time and Instantaneous
- Terminals: Line and Load
- Frequency: 50/60 Hz
- Terminal Material: Aluminum
- Certifications: UL 489
Specifications
- Part Number: LD3400W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : LD
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : L Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 20
