Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
LCL3000

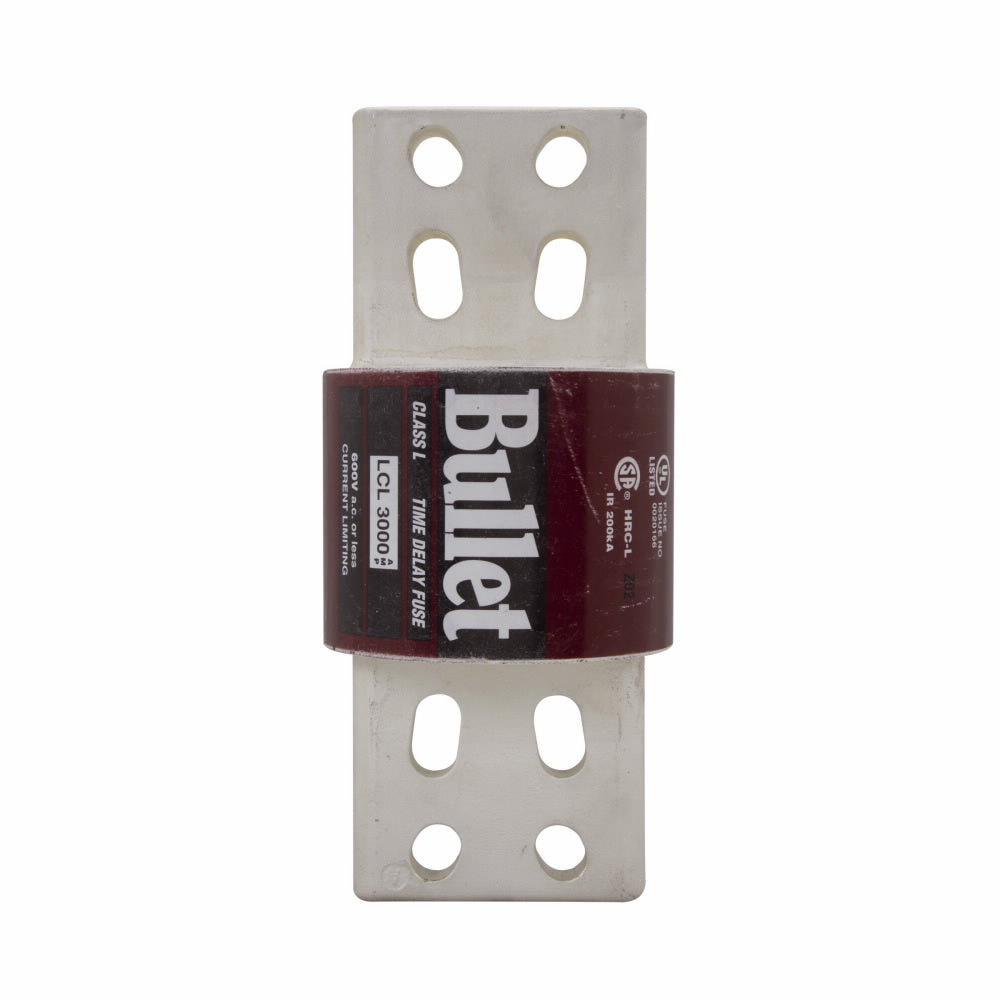

LCL3000 is a 3000 amp, 600 volt Class L time-delay low voltage fuse from Edison Fuses designed for reliable circuit protection.LCL3000 features a single barrel design with a 200kA interrupting rating at 600 volts AC. It is a current-limiting fuse with a time-delay response, suitable for industrial and commercial electrical applications requiring high interrupt capacity and UL/CSA certifications.
- Amperage Rating: 3000A
- Voltage Rating: 600 VAC
- Fuse Type: Class L, Time-Delay
- Interrupting Rating: 200,000 AIC at 600V
- Single Barrel Design
- Diameter: Approximately 5 inches
- Length: Approximately 10.75 inches
- UL and CSA Certified
- Current-Limiting Fuse
- Material: Copper Link
Specifications
- Part Number: LCL3000
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LCL Series
- Type : LCL
- Voltage : 600
- Amperage : 3000
- AIC rating : 200kA@600V
- Diameter : 5
- Class Rating : L
- Barrels : 1
Product Data
- UPC : 78263460530
- GTIN : 00782634605300
- Dimensions : 10.75 in x 5.03 in x 5.03 in (Length/Depth x Height x Width)
- Weight : 8.5
