Product Info
- Manufacturer:Edison Fuses
- Sub-Category:Low Voltage Fuse
Description
LCL1000

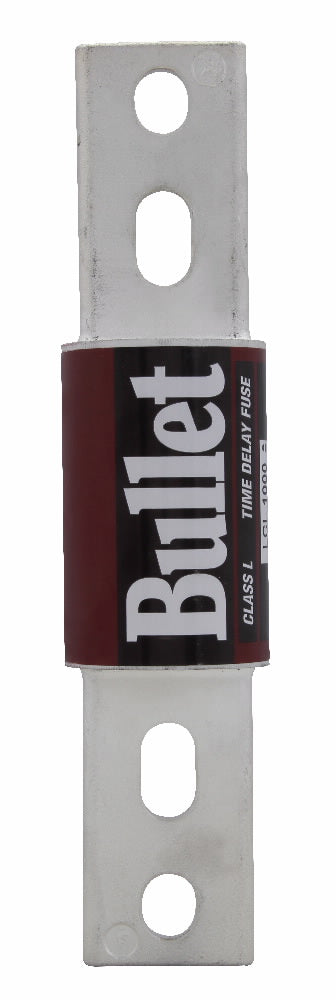

LCL1000 is a 1000 Amp, 600 Volt Class L low voltage time-delay fuse from Edison Fuses designed for reliable circuit protection.
This fuse features a dual-element copper link construction with a 2.5 inch diameter and 10.75 inch length, providing a 200 kA interrupt rating. It is a single-pole, bolt-mount type fuse suitable for general purpose applications requiring current limiting and time-delay characteristics.
- Key Specifications
- Amperage: 1000 Amps
- Voltage: 600 Volts AC
- Fuse Class: L (Class L)
- Poles: 1 (Single Pole)
- Mounting Type: Bolt Mount
- Interrupt Rating: 200 kAIC
- Fuse Type: Time-Delay, Current Limiting
- Material: Copper Link
- Diameter: 2.5 inches
- Length: 10.75 inches
- Series: LCL
- Certifications: Meets Class L standards
- Part Number: LCL1000
- Manufacturer : Edison Fuses
- Brand : Edison Fuses
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LCL Series
- Type : LCL
- Voltage : 600
- Amperage : 1000
- AIC rating : 200kA@600V
- Diameter : 2.5
- Class Rating : L
- Barrels : 1
- UPC : 078263460510
- GTIN : 00782634605102
- Dimensions : 10.75 in x 2.78 in x 2.78 in (Length/Depth x Height x Width)
- Weight : 0.001
