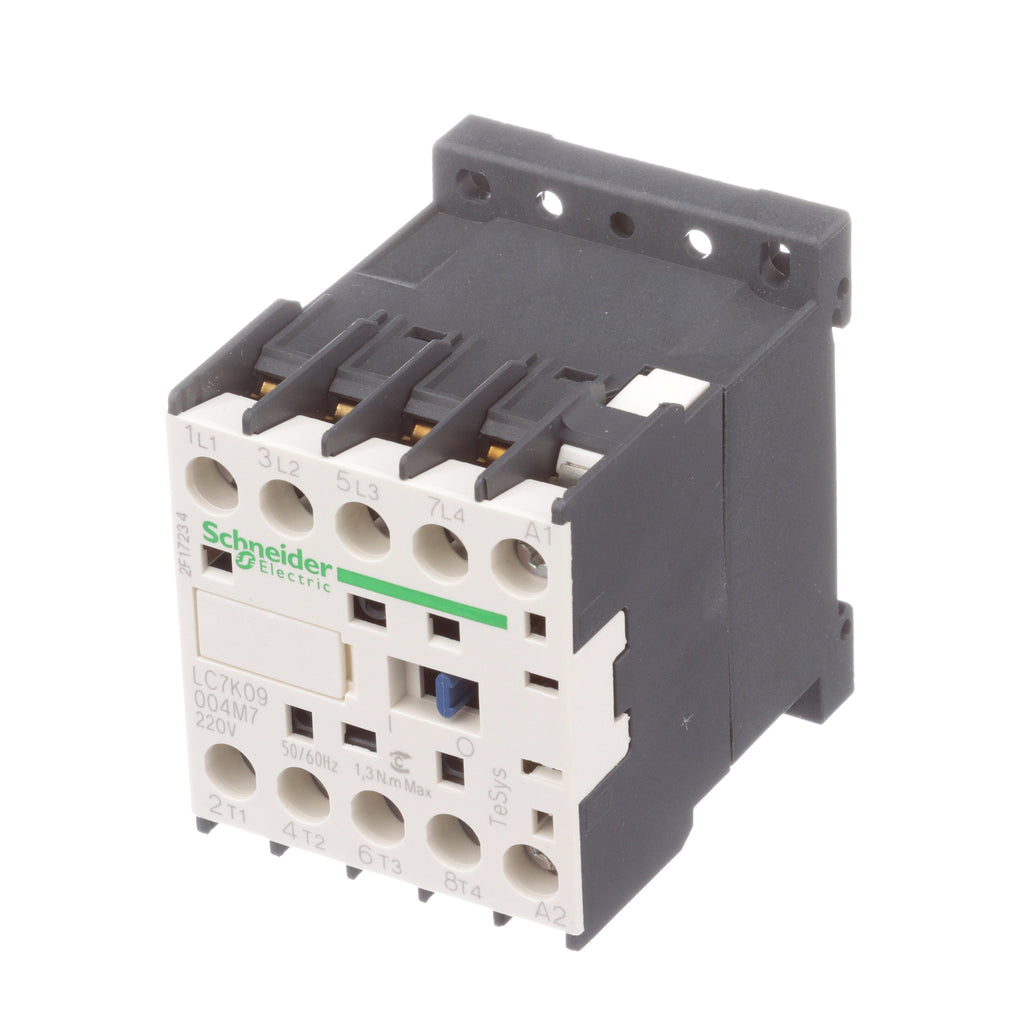

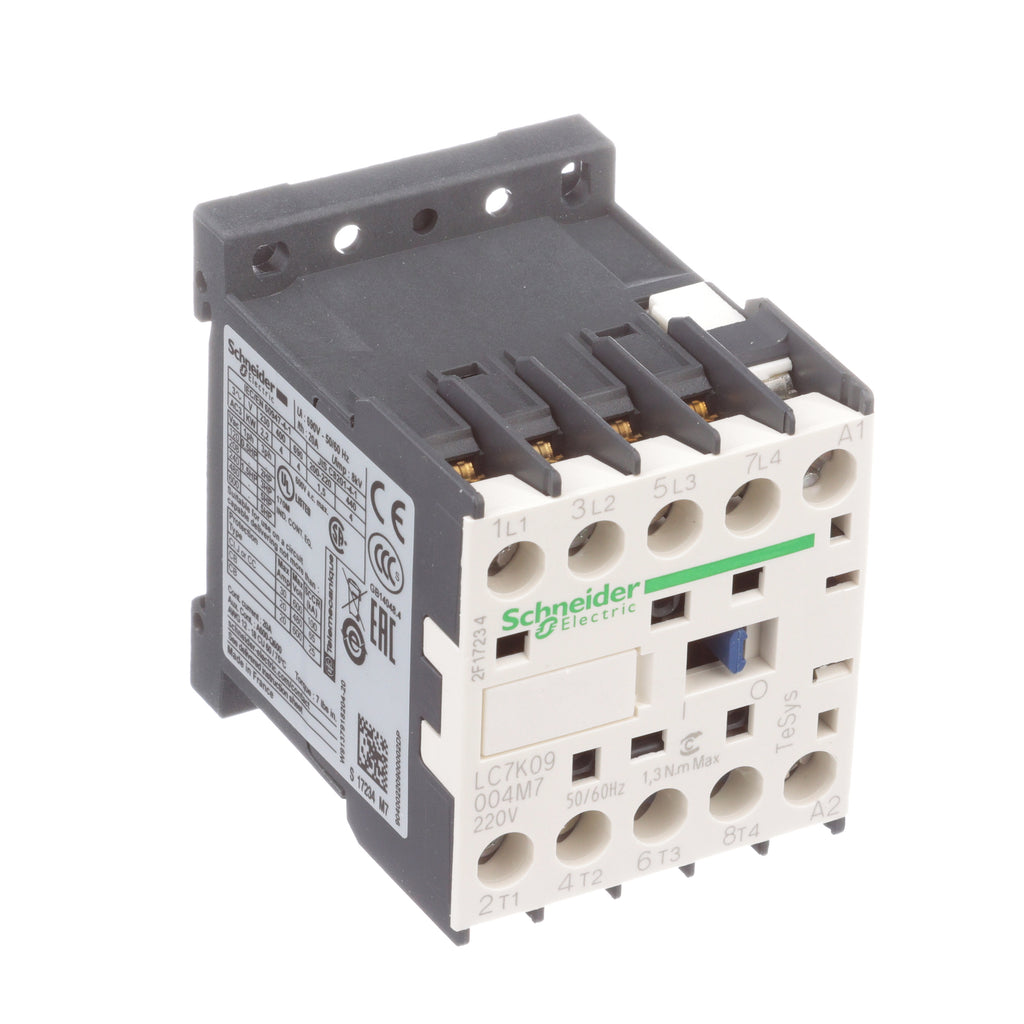

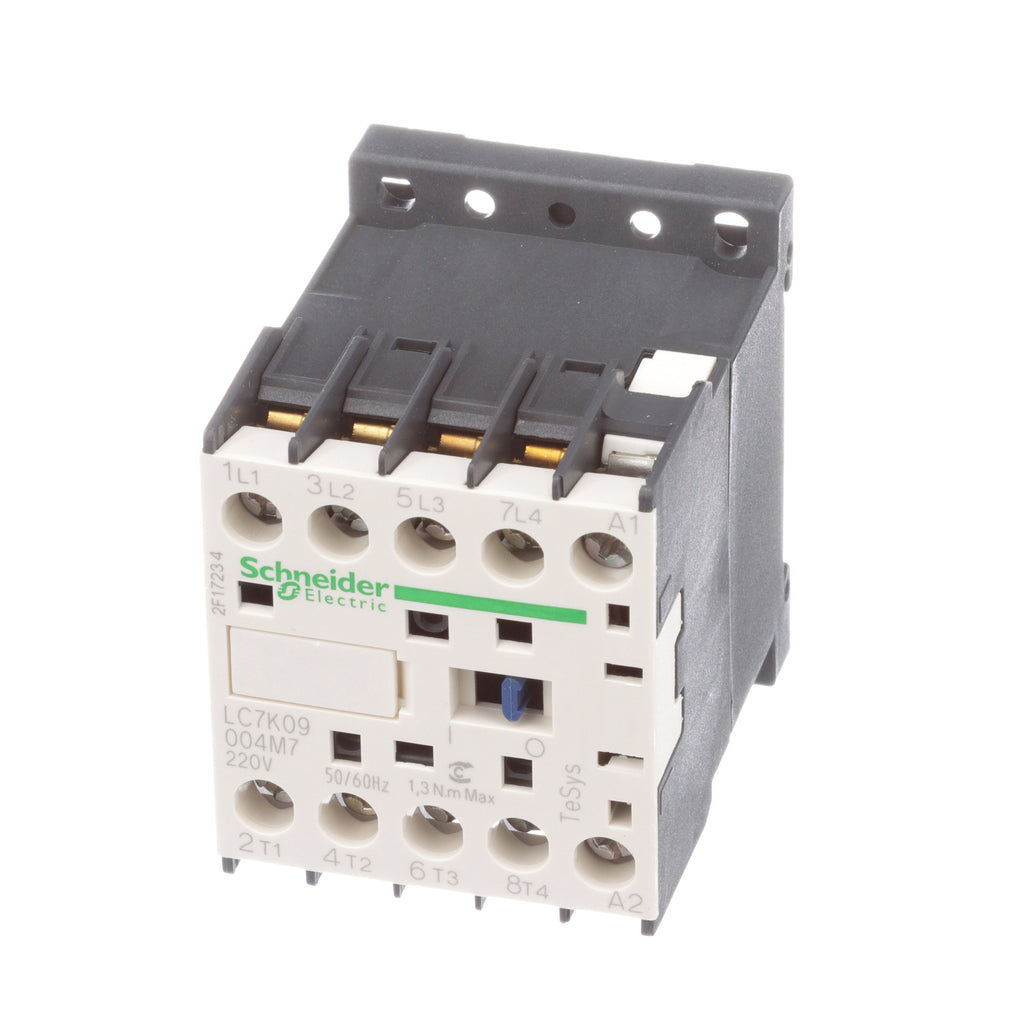

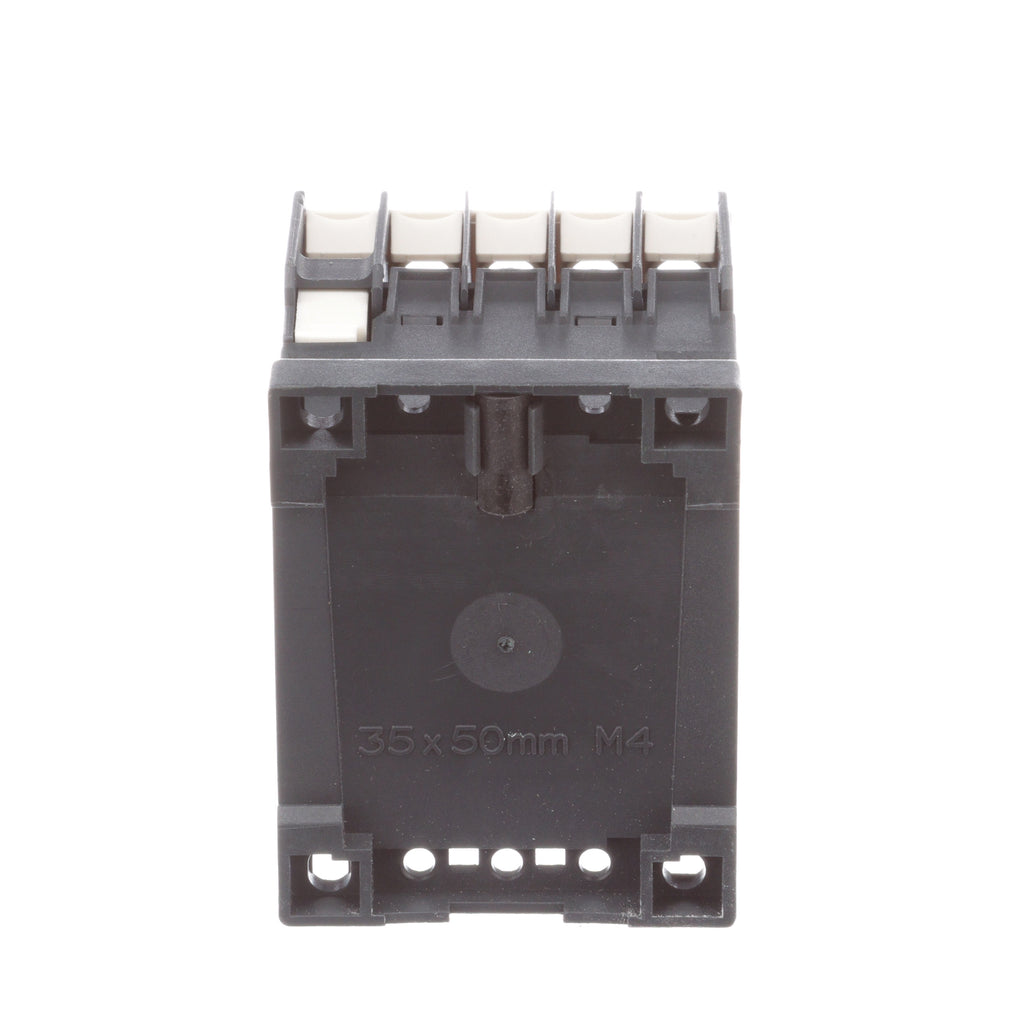

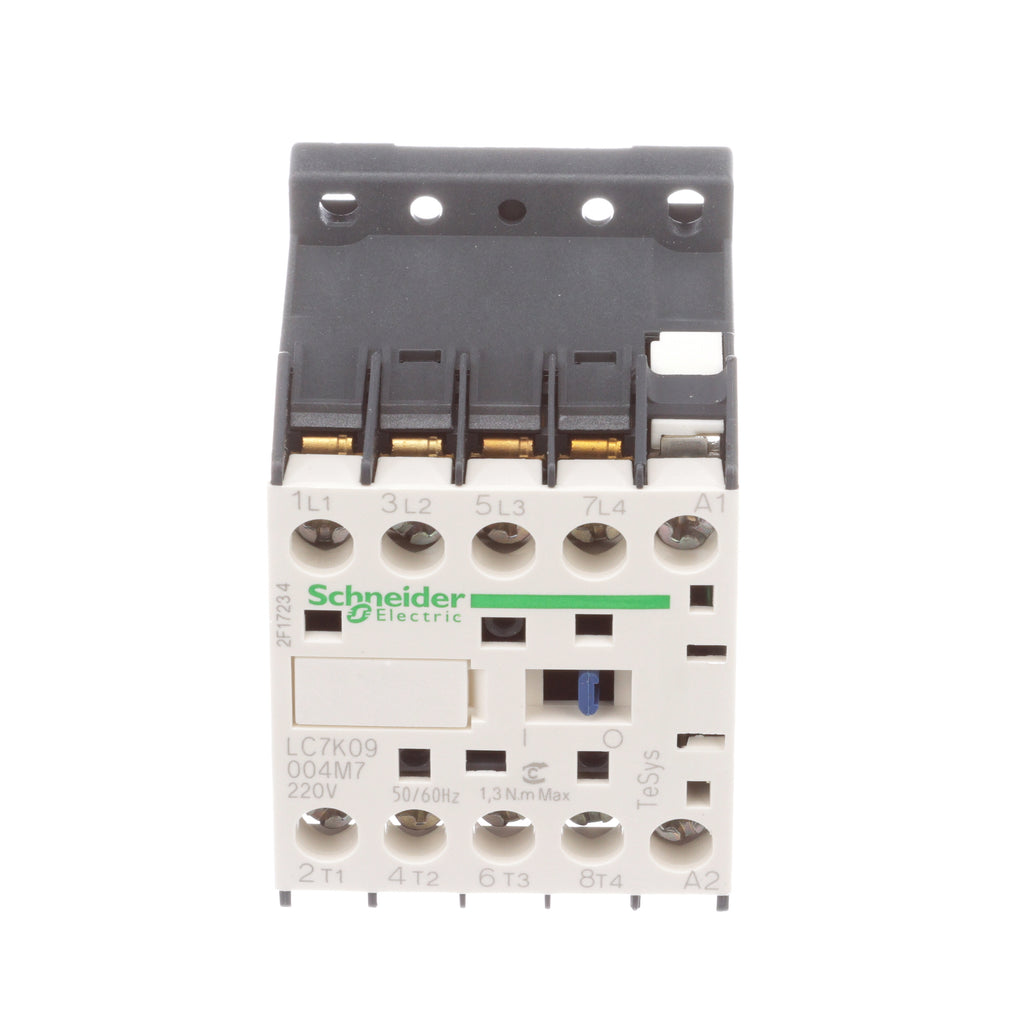

LC7K09004M7 - Schneider Electric TeSys K 4-Pole 20A 220-230V AC Coil Contactor Non-Reversing

LC7K09004M7

LC7K09004M7 is a Schneider Electric TeSys K contactor designed for motor control and resistive load applications.This 4-pole (4 NO) contactor features a rated operational current of 20A at up to 440V AC, with a control coil voltage of 220-230V AC at 50/60 Hz. It supports AC-1 utilization category and offers a rated operational voltage of 690V AC. The device is non-reversing and includes screw clamp terminals for easy installation. It has an impulse withstand voltage rating of 8 kV and meets IEC 60947 standards. The compact design optimizes cabinet space and it carries an 18-month warranty.

Key Specifications
• Manufacturer: Schneider Electric
• Series: TeSys K
• Part Number: LC7K09004M7
• Poles: 4 (4 Normally Open)
• Rated Operational Current: 20A (AC-1)
• Rated Operational Voltage: 690V AC
• Control Coil Voltage: 220-230V AC 50/60 Hz
• Utilization Category: AC-1 (Resistive Load)
• Mounting Type: Screw Clamp Terminals
• Impulse Withstand Voltage: 8 kV
• Non-Reversing Contactor
• Standards: IEC 60947
• Warranty: 18 months
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This TeSys K Miniature Contactor includes a 220-230 VAC coil.




Specifications

• Part Number: LC7K09004M7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 20
• Poles : 4
• Aux Contacts : 4 NO
• Coil Voltage Maximum : 230
• Frequency : AC 50/60 Hz



Product Data

• UPC : 038911049269
• GTIN : 03389110492699
• Country of Origin : France
• Dimensions : 2.3 in (58 mm) x 1.8 in (45 mm) x 2.2 in (57 mm) (Height x Width x Depth)
• Weight : 0.485
