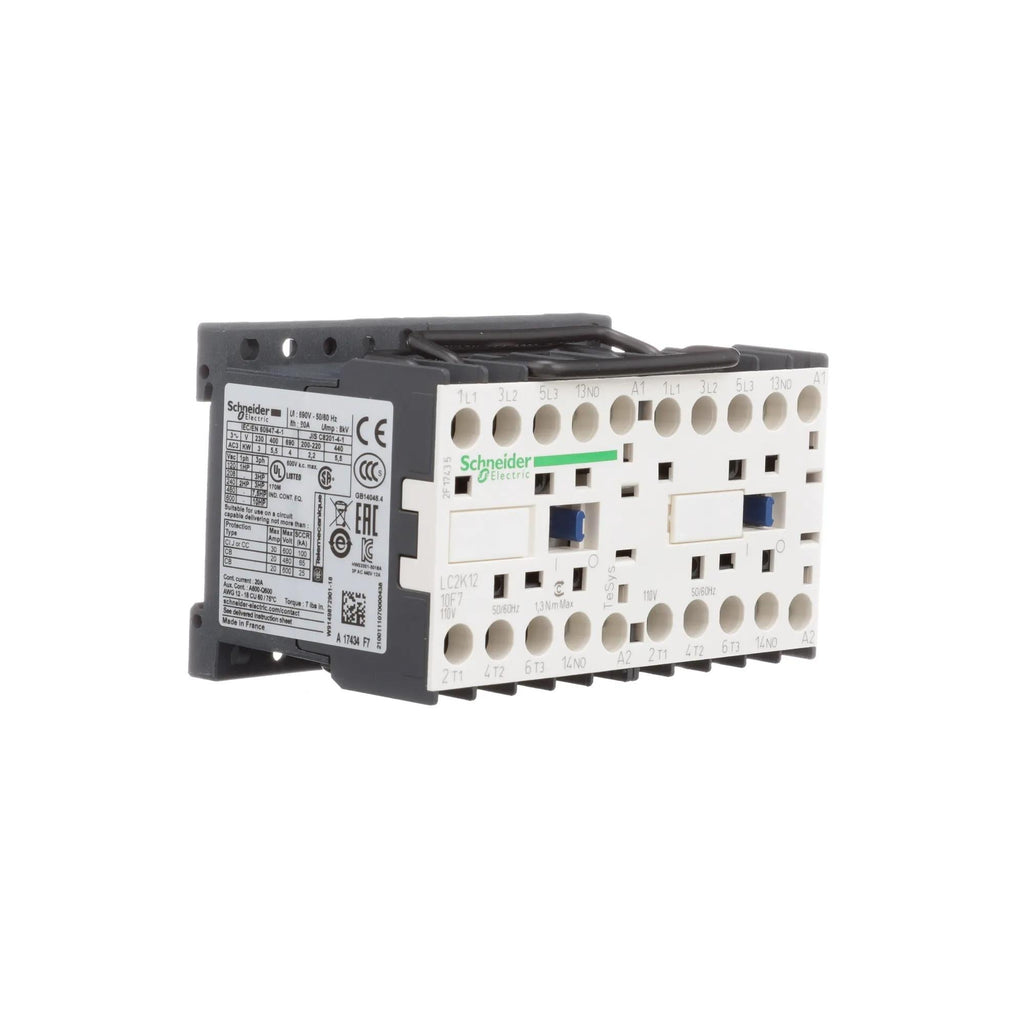

LC2K1210F7 - Square D TeSys K Reversing Contactor 12A 3-Pole 110V AC Coil IEC

LC2K1210F7

LC2K1210F7 is a Square D TeSys K reversing contactor designed for motor control applications with a 12 amp rating and 3 poles.

This compact reversing contactor features a 110V AC coil operating at 50/60 Hz, 3 normally open (NO) contacts, and a pre-wired reversing circuit with mechanical interlock. It supports AC-3 duty up to 440V and is suitable for mounting on rail or plate with an IP20 enclosure. The device complies with UL 508, CSA C22.2 No 14, and IEC 60947-4-1 standards, ensuring reliable and safe operation in industrial environments.

Key Specifications
• Amperage: 12A AC-3
• Voltage: Up to 440V AC (AC-3)
• Poles: 3 poles (3 NO contacts)
• Coil Voltage: 110V AC, 50/60 Hz
• Mounting Type: Rail or plate mount
• Interrupt Rating: Suitable for motor control AC-3 duty
• Series/Frame: TeSys K
• Trip Unit: Reversing contactor with mechanical interlock
• Certifications: UL 508, CSA C22.2 No 14, IEC 60947-4-1
• Enclosure: IP20

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys K Miniature Contactor includes a 110 VAC coil.

Specifications

• Part Number: LC2K1210F7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Aux Contacts : 3 NO
• Protection : Solid State
• Frequency : AC 50/60 Hz

Product Data

• UPC : 785901789901
• Country of Origin : France
• Dimensions : 3.54 in x 2.28 in
• Weight : 0.798
• Certification : BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
