Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description
LC2K1210B7

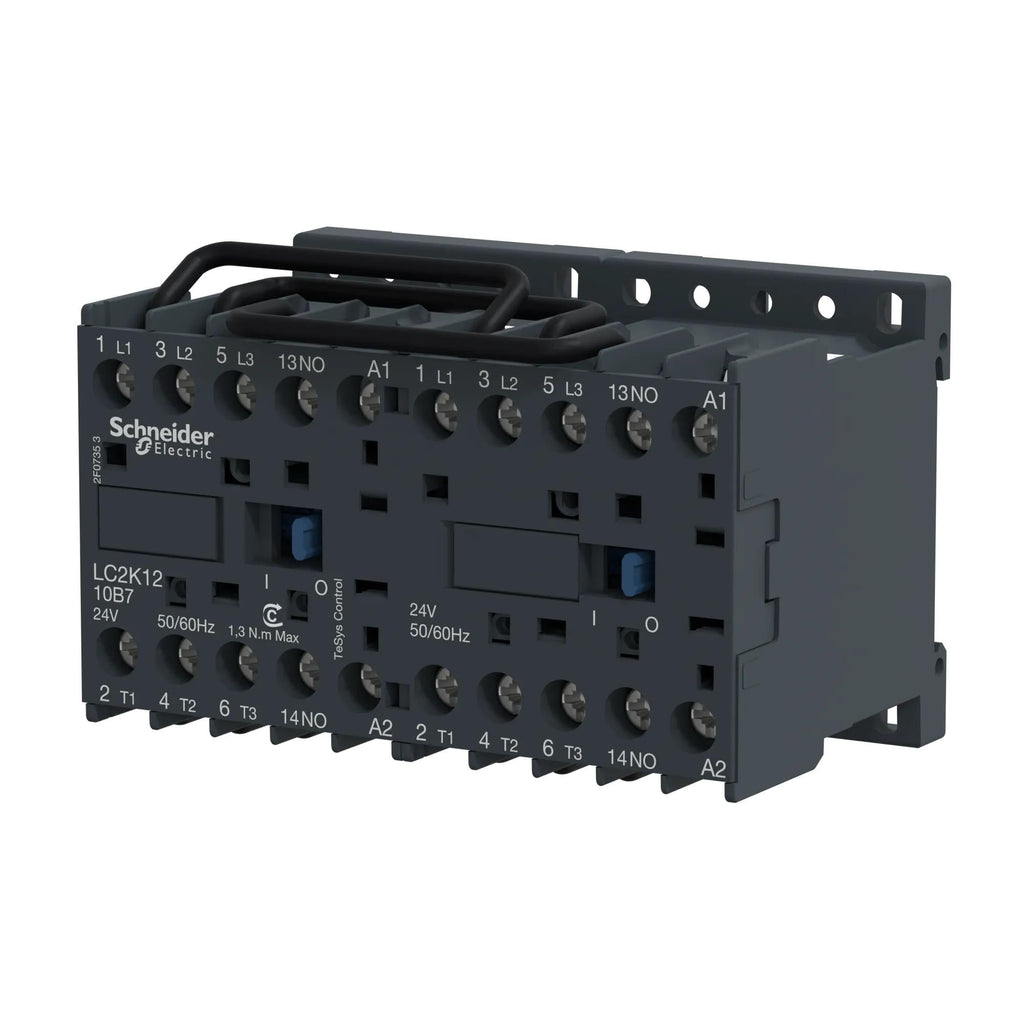

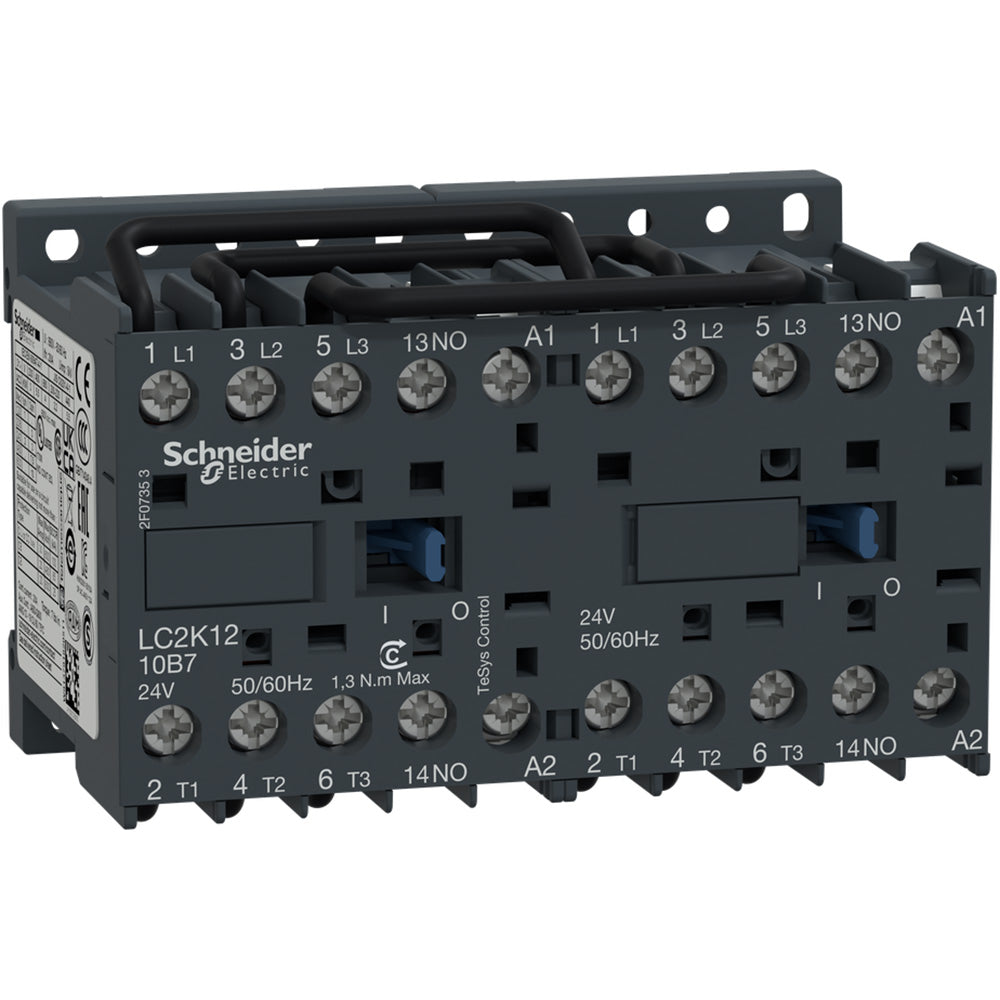

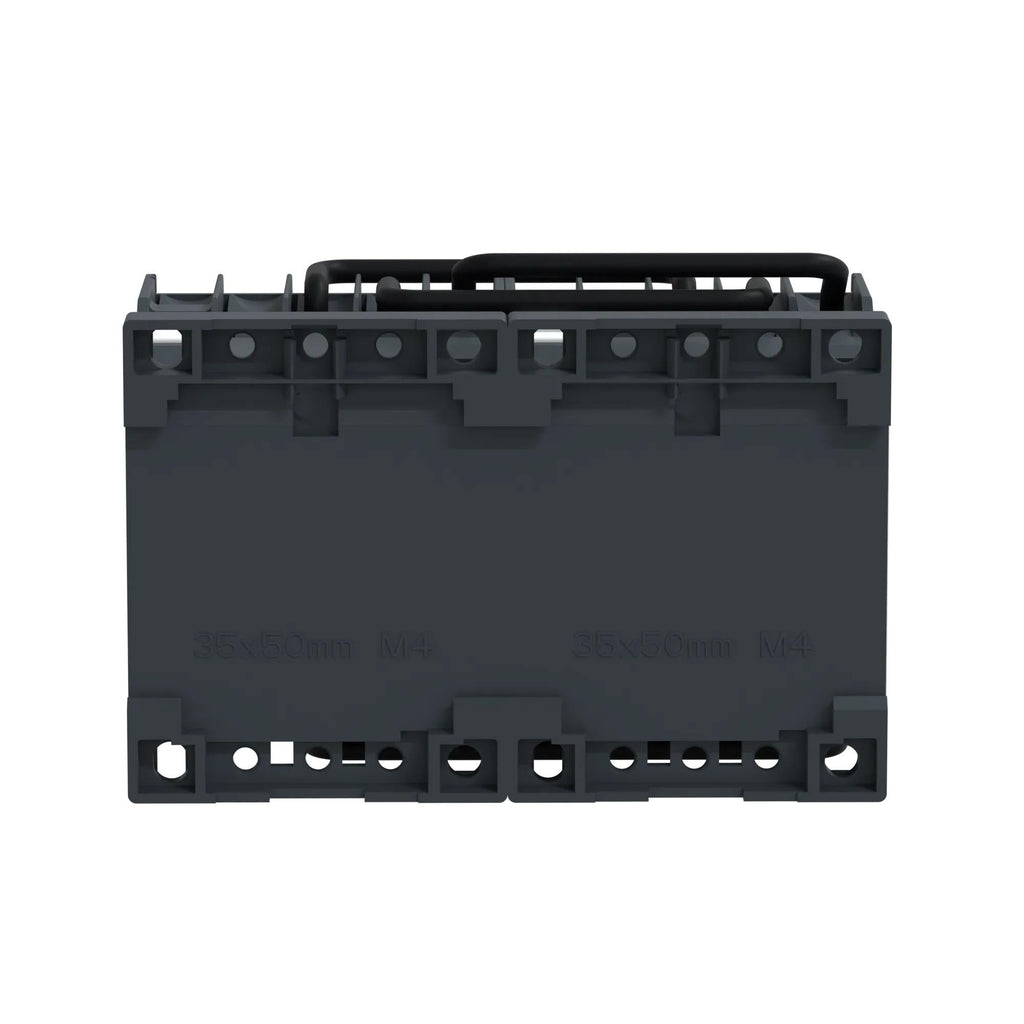

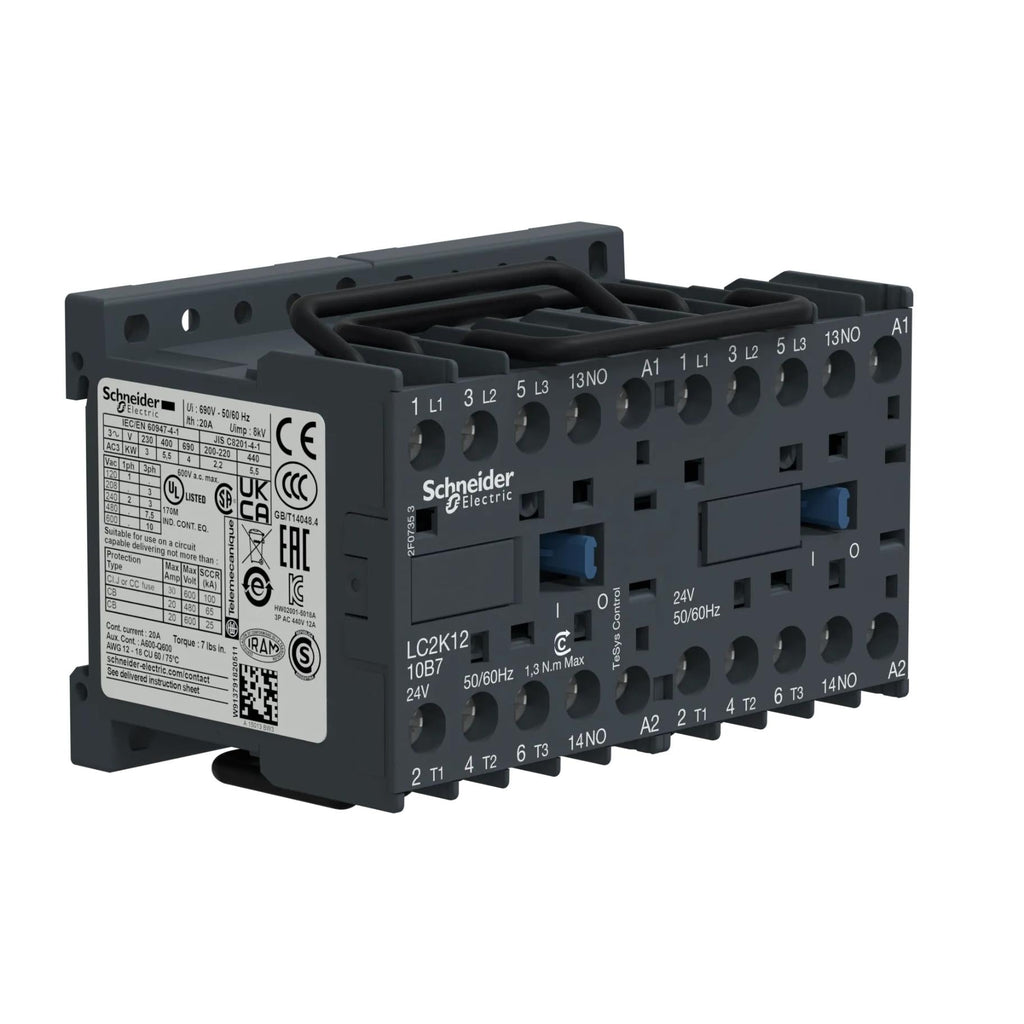

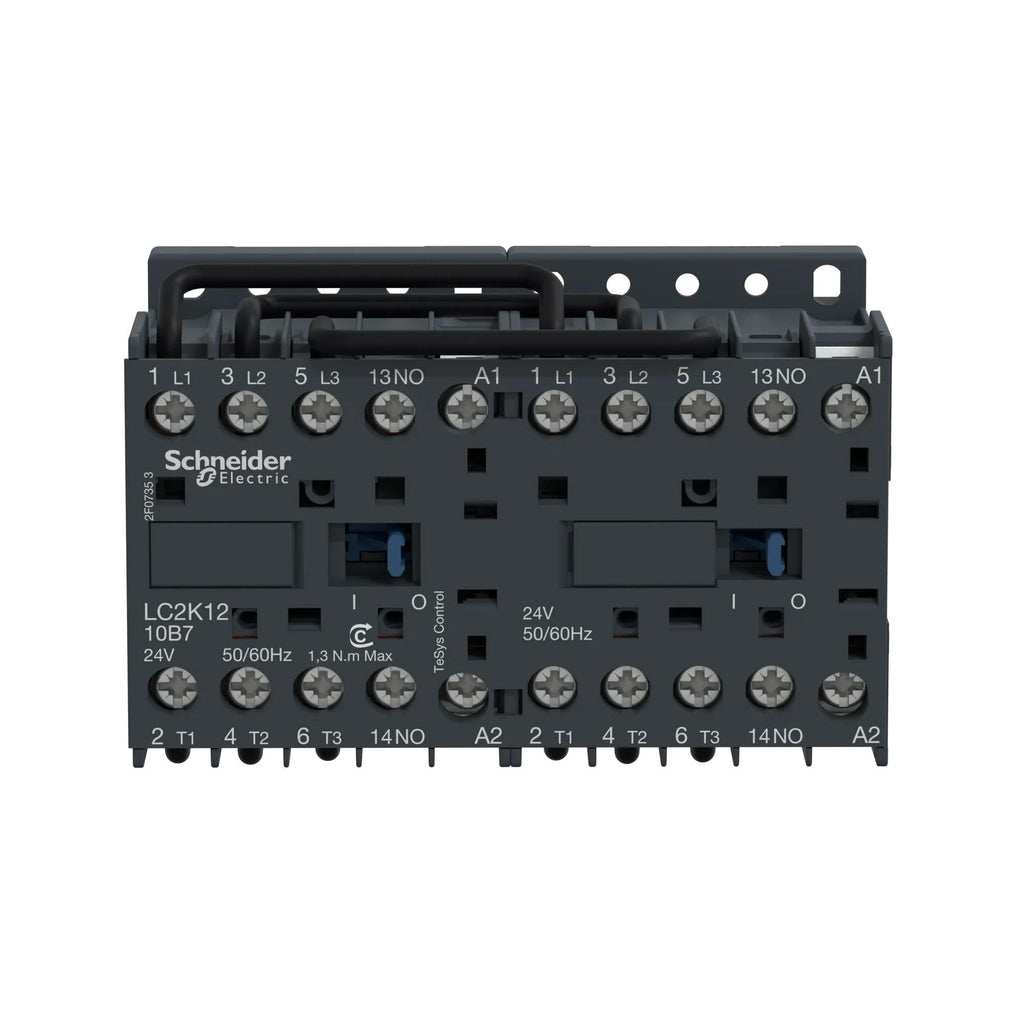

LC2K1210B7 is a 3-pole reversing contactor from Schneider Electric's TeSys K series, designed for motor control applications up to 12A at 440V AC-3. This compact contactor features a 24V AC coil, 3NO main contacts, 2NO auxiliary contacts, and a mechanical interlock for reversing circuits. It is suitable for DIN rail or panel mounting and offers screw clamp terminals for secure connections. The device is rated for AC-3 duty and complies with IEC, UL, CSA, CCC, EAC, and Marine standards, with Green Premium certification (RoHS/REACH).
- Part Number: LC2K1210B7
- Manufacturer: Schneider Electric
- Series: TeSys K
- Number of Poles: 3
- Rated Current: 12A AC-3
- Rated Voltage: 440V AC-3
- Coil Voltage: 24V AC 50/60Hz
- Contact Configuration: 3NO main, 2NO auxiliary
- Mounting Type: DIN rail or panel
- Terminal Type: Screw clamp
- Standards: IEC, UL, CSA, CCC, EAC, Marine
- Certifications: Green Premium (RoHS/REACH)
Additional Information
This TeSys K Miniature Contactor includes a 24 VAC coil.
Specifications
- Part Number: LC2K1210B7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Type : TeSys Micra Series
- Voltage : 600
- Amperage : 20
- Poles : 3
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 24
- Coil Voltage Minimum : 24
- Frequency : AC 50/60 Hz
Product Data
- UPC : 38911078989
- GTIN : 03389110789898
- Country of Origin : France
- Dimensions : 3.54 in x 2.28 in
- Weight : 0.806
- Certification : BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
