Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Contactor
Description

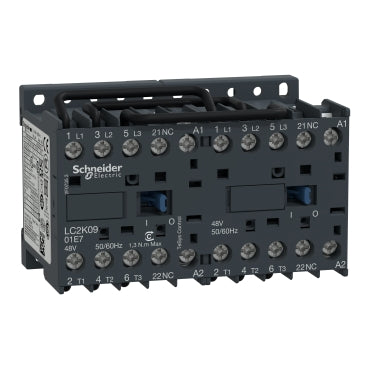

LC2K0901P7
LC2K0901P7 is a compact TeSys K series reversing contactor designed for motor control and resistive load applications. This contactor features a 230VAC coil and is suitable for use in a wide range of industrial environments.Engineered for reliability, the LC2K0901P7 offers a 3-pole configuration with a maximum motor phase current of 9A and a switching power of 4kW at 400V. It is equipped with a mechanical interlock and pre-wired reversing circuit for safe and efficient operation. The contactor is mountable on a 35 mm DIN rail or panel and features screw clamp terminals for secure connections. Its IP20 enclosure provides finger-safe terminals and both North American and international terminal markings.
- Manufacturer: Schneider Electric
- Series: TeSys K
- Number of Poles: 3
- Maximum Motor Phase Current: 9A
- Coil Voltage: 230VAC
- Operating Voltage: 690VAC
- Switching Power AC3: 4kW at 400V
- Mounting Type: DIN Rail, Panel
- Terminal Type: Screw Clamp
- Enclosure Type: IP20
- Contact Configuration: 3PST-NO
- Operating Temperature: -25 to 50°C
Additional Information
This TeSys K Miniature Contactor includes a 230 VAC coil.
Specifications
- Part Number: LC2K0901P7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 20
- Poles : 3
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 230
- Frequency : AC 50/60 Hz
Product Data
- UPC : 038911049197
- GTIN : 03389110491975
- Country of Origin : France
- Weight : 0.807
- Certification : CB Scheme;CCC;UL;CSA;EAC;CE;UKCA
