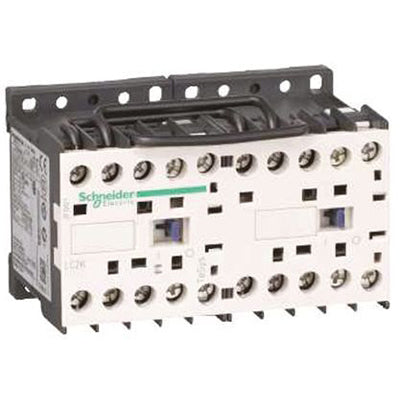

LC2K0901G7 - Schneider Electric TeSys K Reversing Contactor 3 Pole 9A 120VAC Coil AC-3 440V

LC2K0901G7

LC2K0901G7 is a Schneider Electric TeSys K reversing contactor designed for motor control applications with a 3-pole configuration and a 120 VAC coil.This compact IEC contactor features a 9 ampere AC-3 rated contact current at up to 440 VAC, suitable for controlling motors and resistive loads. It includes 3 normally open main contacts, 1 normally closed auxiliary contact, and a mechanical interlock for reversing operation. The coil operates at 120 VAC 50/60 Hz, and the device supports screw clamp terminals with an IP20 enclosure rating. It is rated for 4 kW motor power at 400 V and offers robust performance with up to 5 million mechanical cycles. Mounting is surface type, and it complies with IEC 60947 standards and UL/CSA certifications.

Key Specifications
• Part Number: LC2K0901G7
• Manufacturer: Schneider Electric
• Poles: 3
• Contact Rating: 9 A at 440 VAC (AC-3)
• Coil Voltage: 120 VAC 50/60 Hz
• Auxiliary Contacts: 1 NC
• Motor Power Rating: 4 kW at 400 V
• Mounting Type: Surface mount
• Enclosure Rating: IP20
• Mechanical Life: 5,000,000 cycles
• Standards: IEC 60947, UL 508, CSA C22.2 No 14
• Operating Temperature: -13 to 122 °F (-25 to 50 °C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys K Miniature Contactor includes a 120 VAC coil.

Specifications

• Part Number: LC2K0901G7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 20
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120
• Frequency : AC 50/60 Hz

Product Data

• UPC : 785901700777
• GTIN : 03389110221541
• Country of Origin : France
• Dimensions : 2.5 in x 2.5 in
• Weight : 1
• Certification : BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660
