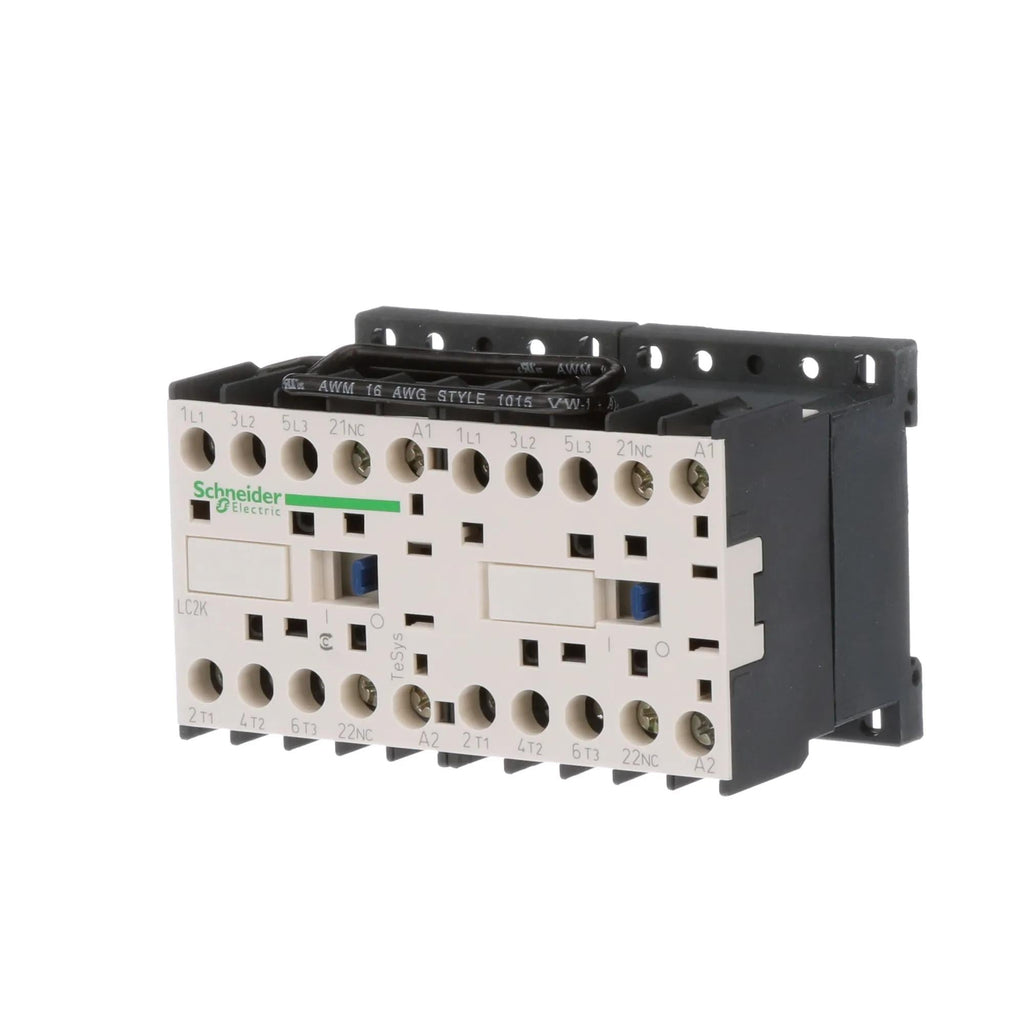

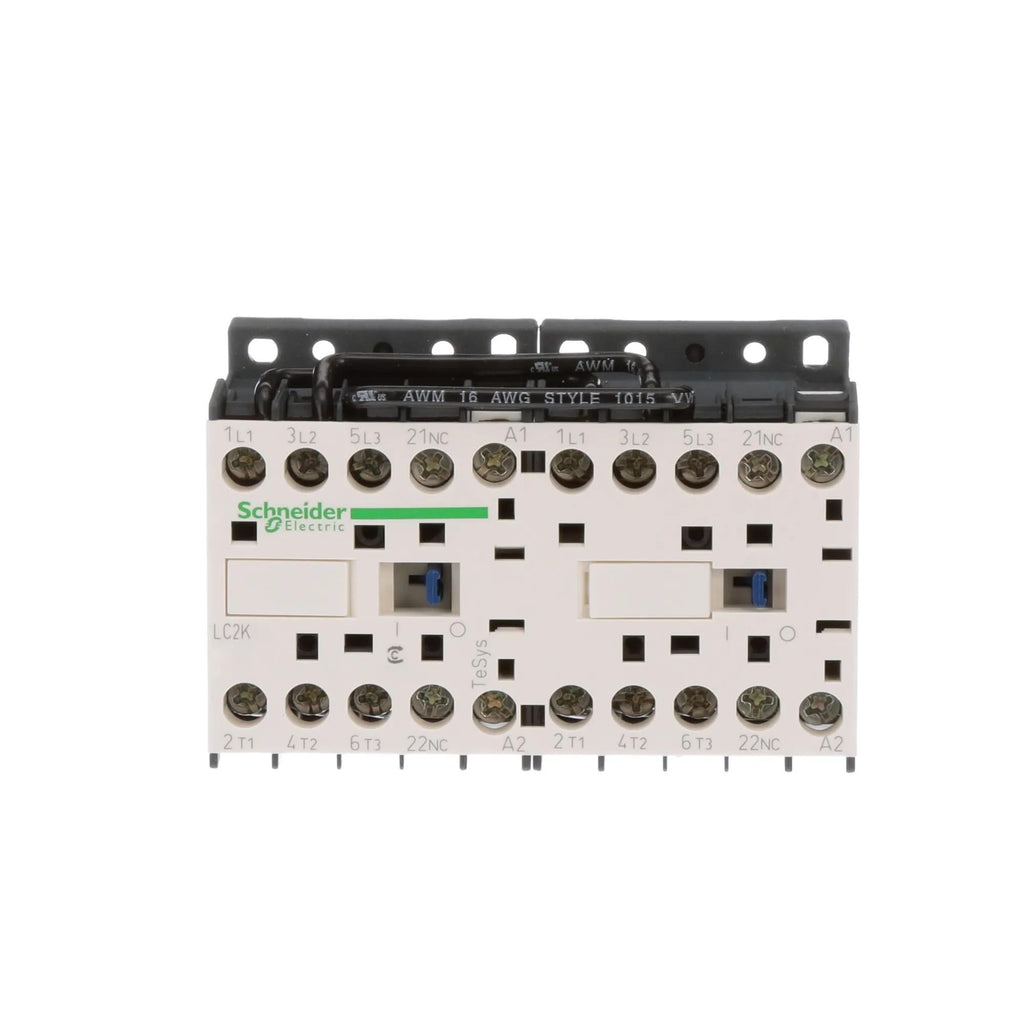

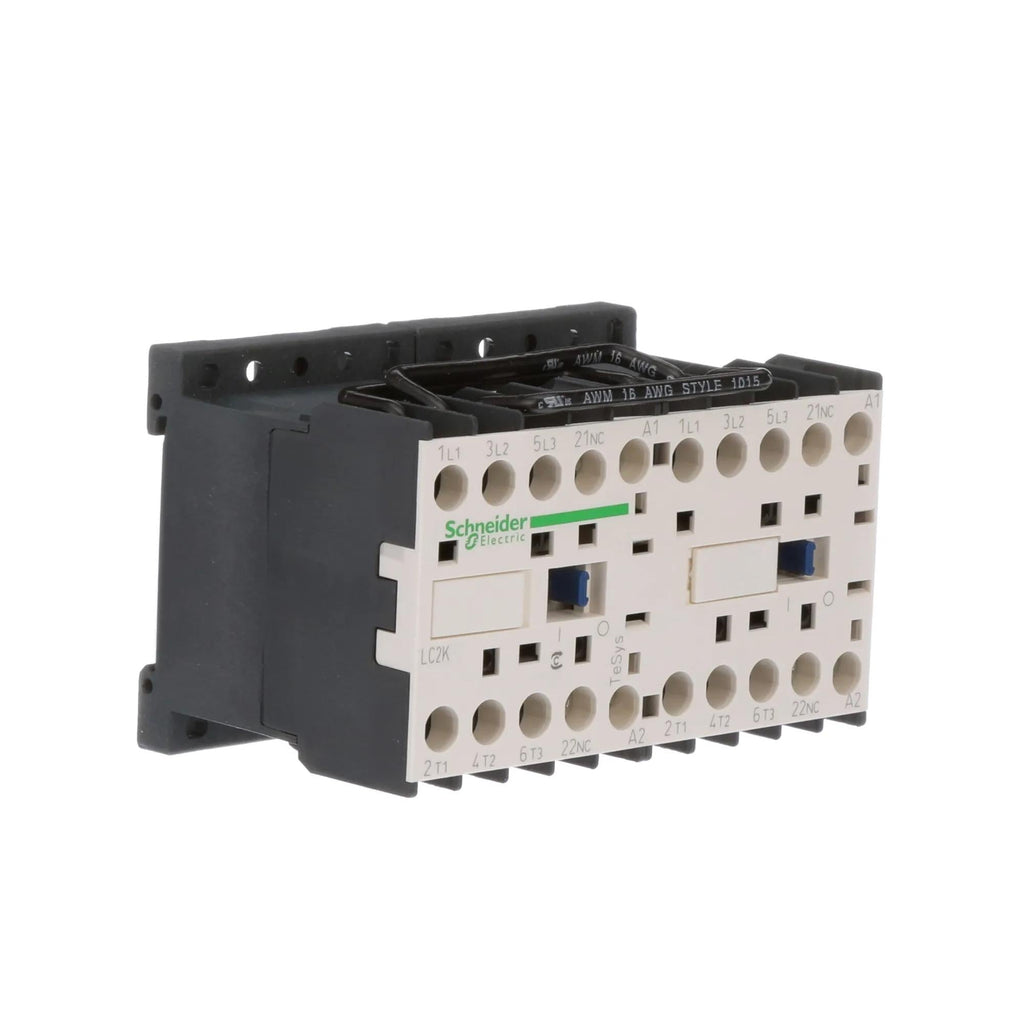

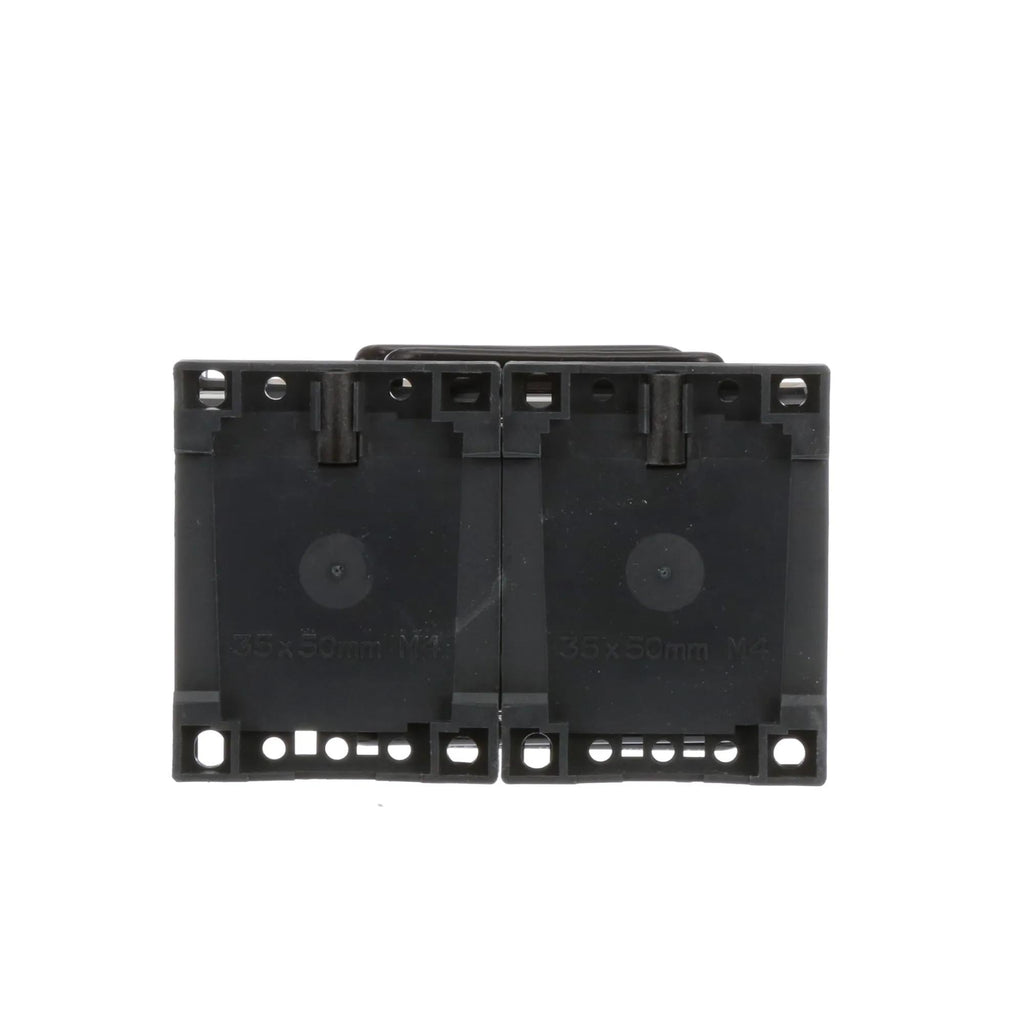

LC2K0610F7 - Telemecanique Schneider Electric 6A 3-Pole TeSys K Reversing Contactor 110V AC Coil

LC2K0610F7

LC2K0610F7 is a compact 3-pole TeSys K reversing contactor from Telemecanique Schneider Electric designed for motor control applications.This reversing contactor is rated 6A AC-3 with a power rating of 2.2kW at 400V and includes a 110V 50/60Hz AC coil. It features 2 normally open (2NO) auxiliary contacts, a mechanical interlock, and a pre-wired reversing circuit. The device is compact, DIN-rail compatible, and suitable for panel mounting. It complies with multiple international standards including IEC, UL, CSA, CCC, and is RoHS/Reach certified as Green Premium.

Key Specifications
• Amperage: 6A AC-3
• Voltage Rating: Up to 440V AC
• Poles: 3-pole
• Coil Voltage: 110V AC, 50/60Hz
• Auxiliary Contacts: 2 Normally Open (2NO)
• Mounting Type: DIN-rail and panel mount compatible
• Interrupt Rating: Compliant with IEC 60947-4-1 and UL 508 standards
• Series/Frame: TeSys K
• Trip Unit: Mechanical interlock with pre-wired reversing circuit
• Certifications: IEC, UL, CSA, CCC, EAC, RoHS/Reach Green Premium
• Dimensions (HxWxD): 2.28 x 3.54 x 2.24 inches
• Weight: 0.86 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This TeSys K Miniature Contactor includes a 110 VAC coil.




Specifications

• Part Number: LC2K0610F7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 20
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 110
• Coil Voltage Minimum : 110
• Frequency : AC 50/60 Hz



Product Data

• UPC : 785901913849
• GTIN : 03389110491180
• Country of Origin : France
• Dimensions : 90 mm x 58 mm
• Weight : 0.8
• Certification : EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016
