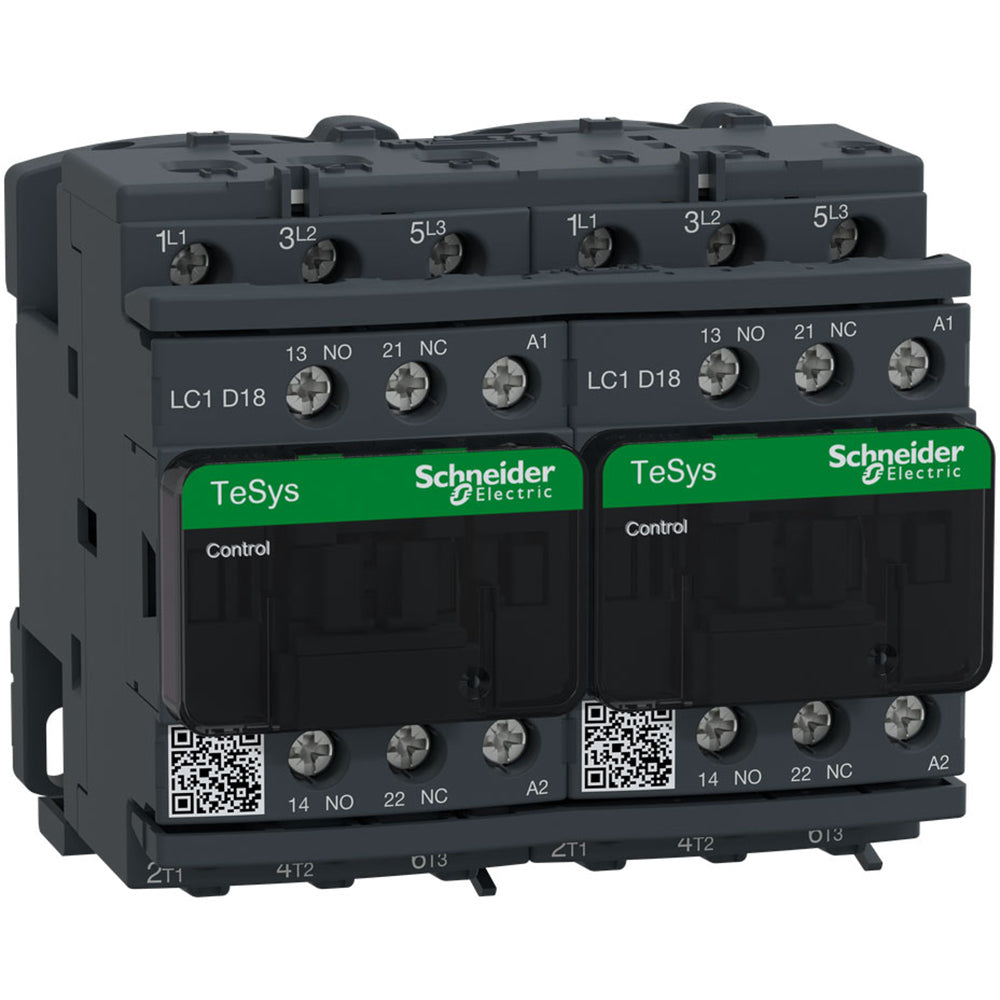

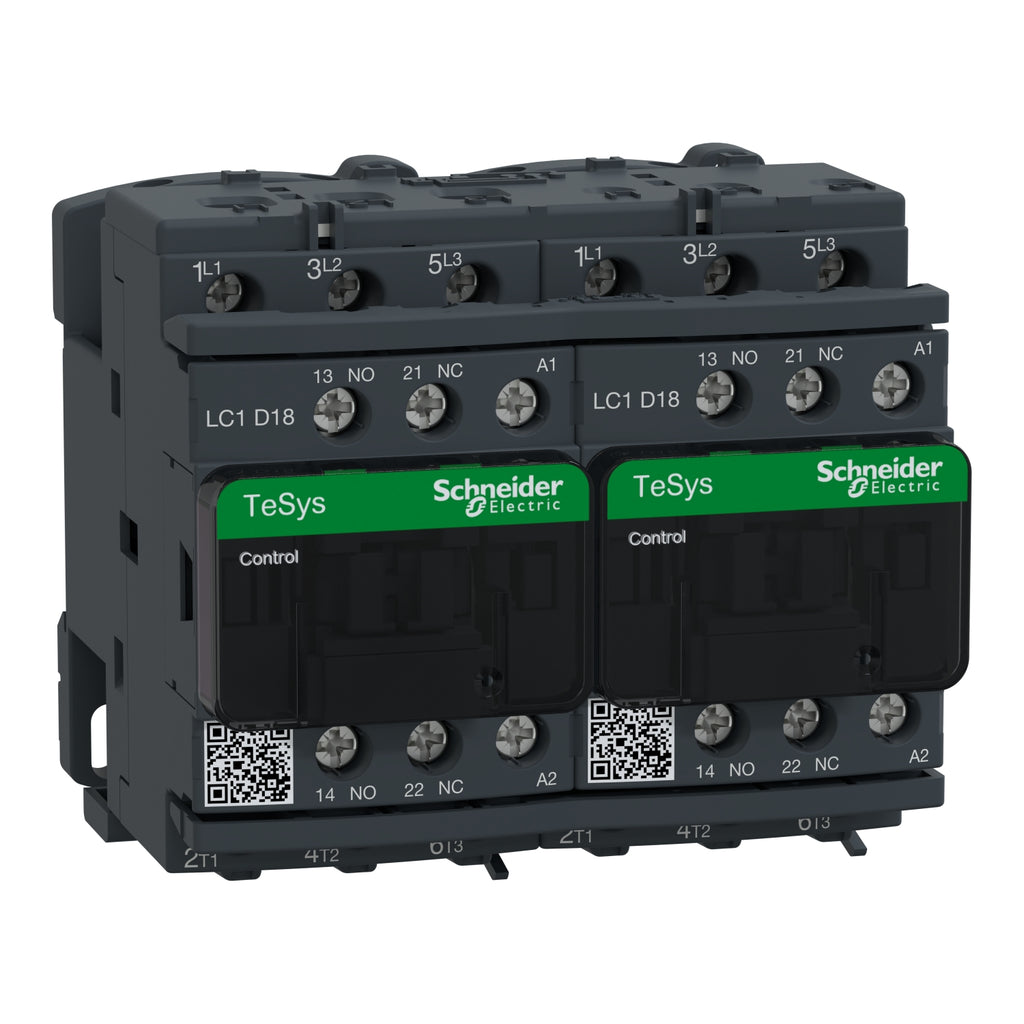

LC2D18B7 - Schneider Electric 18A 3-Pole Reversing Contactor 24V AC Coil 575VAC IEC

LC2D18B7

LC2D18B7 is a Schneider Electric 3-pole reversing contactor designed for motor control applications with an 18 ampere rating and 24V AC coil voltage.

This TeSys Deca series contactor supports motor control up to 18A at 575VAC and complies with IEC standards for industrial and HVAC applications. It features a 3 normally open (3NO) contact configuration, screw clamp terminals for easy installation, and is designed with improved fire resistance and dustproof auxiliaries. The contactor is suitable for AC-3 utilization category and offers a modern design with multi-standard screws for enhanced usability.

• Amperage: 18A
• Voltage Rating: 575VAC power circuit
• Coil Voltage: 24V AC, 50/60 Hz
• Poles: 3-pole (3NO)
• Series/Frame: TeSys Deca
• Contact Configuration: 3 normally open contacts
• Mounting Type: Screw clamp terminals
• Standards: IEC 60947-4-1, IEC 60947-1, IEC60335-1 compliance
• Application: Motor control, industrial and HVAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys D IEC Contactor includes a 24 VAC coil.

Specifications

• Part Number: LC2D18B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 32
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Aux Contacts : 1NO, 1NC
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Frequency : AC 50/60 Hz

Product Data

• UPC : 038911038633
• GTIN : 03389110386332
• Country of Origin : Indonesia
• Dimensions : 90 mm x 77 mm
• Weight : 1.784
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA, EN, IEC, UL, DNV, CCC, GL, LROS, BV, RINA, GOST, UKCA
