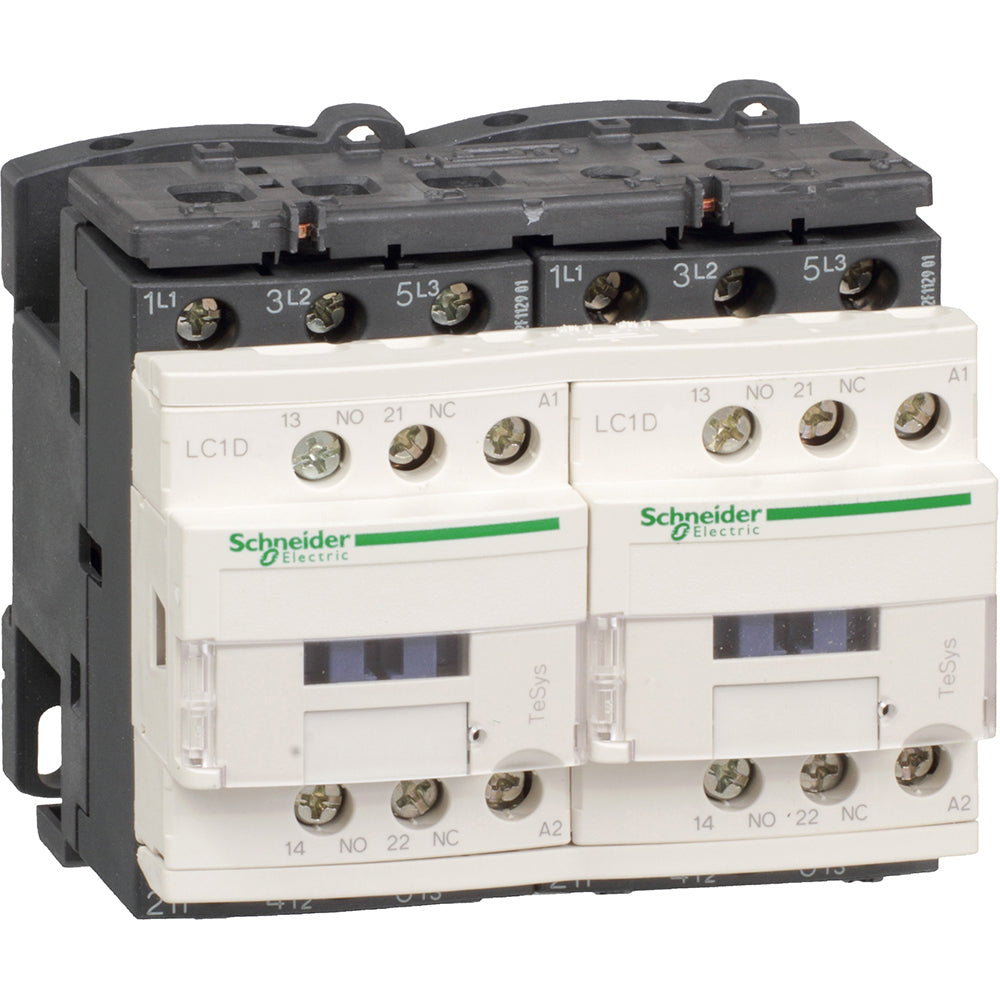

LC2D12G7V - Square D 12A 3 Pole IEC Reversing Contactor 120VAC Coil

LC2D12G7V

LC2D12G7V is a 12A 3 pole IEC reversing contactor with a 120VAC 50/60Hz coil, designed for motor control applications requiring reliable switching and reversing capabilities. This Square D TeSys Deca contactor is rated for 7.5 HP at 480VAC 3-phase and features an open-style enclosure suitable for DIN rail or panel mounting. It is UL and CSA listed, with an IP20 enclosure for protection against accidental contact. The device is suitable for both resistive and inductive loads, making it ideal for a wide range of industrial motor control applications.

• 12A continuous current rating
• 3 pole configuration
• 120VAC 50/60Hz coil voltage
• Reversing type contactor
• Rated for 7.5 HP at 480VAC 3-phase
• Open-style enclosure
• DIN rail or panel mounting
• UL and CSA listed
• IP20 protection rating
• AC-3 utilization category
• TeSys Deca series
• 3 NO main contacts

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys D IEC Contactor includes a 120 VAC coil.

Specifications

• Part Number: LC2D12G7V
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactors
• Section : Contactors
• Family : LC2D TeSys‚Ñ¢ D LC2D
• Poles : 3
• Aux Contacts : 3 NO
• Frequency : AC 50/60 Hz

Product Data

• UPC : 785901294634
• GTIN : 3389110410884
• Country of Origin : France
• Dimensions : 3.03 in H x 3.54 in W x 3.39 in D 77 mm H x 90 mm W x 86 mm D
• Weight : 1.8
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
