LC2D12B7 - Schneider Electric TeSys Deca 12A 3-Pole Reversing Contactor 24V AC Coil 440V AC-3 Motor Control

LC2D12B7

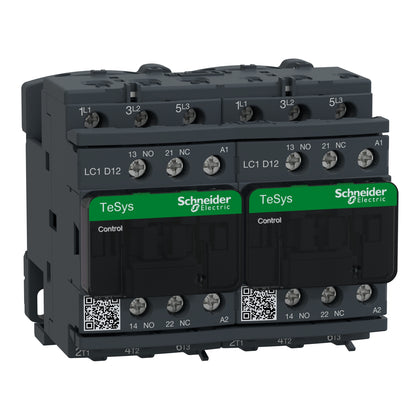

LC2D12B7 is a Schneider Electric TeSys Deca reversing contactor designed for motor control applications with a 12 amp rating and 3 poles.This reversing contactor features a 24V AC 50/60Hz coil, 3 normally open power poles (3 NO), and is rated for up to 12A AC-3 utilization category at 440V AC. It supports motor power ratings of 3 kW at 230V, 7.5 kW at 460V, and up to 7.5 kW at 690V AC. The device includes a preassembled reversing power busbar and is suitable for industrial and HVAC applications. It complies with IEC standards and offers screw clamp terminals for easy installation.

Key Specifications
• Amperage: 12 A AC-3 at 440 V
• Voltage rating: up to 690 V AC (25-400 Hz)
• Poles: 3 poles (3 NO)
• Coil voltage: 24 V AC 50/60 Hz
• Motor power rating: 7.5 HP @ 460 V 3-phase
• Utilization category: AC-1 and AC-3
• Mounting type: Base mounted with mechanical and electrical interlocks
• Interrupt rating: Suitable for motor control
• Series/Frame: TeSys Deca
• Certifications: IEC compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This TeSys D IEC Contactor includes a 24 VAC coil.




Specifications

• Part Number: LC2D12B7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 25
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 24
• Coil Voltage Minimum : 24
• Frequency : AC 50/60 Hz



Product Data

• UPC : 038911038560
• GTIN : 03389110385601
• Country of Origin : Indonesia
• Dimensions : 90 mm x 77 mm
• Weight : 1.781
• Certification : CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30
