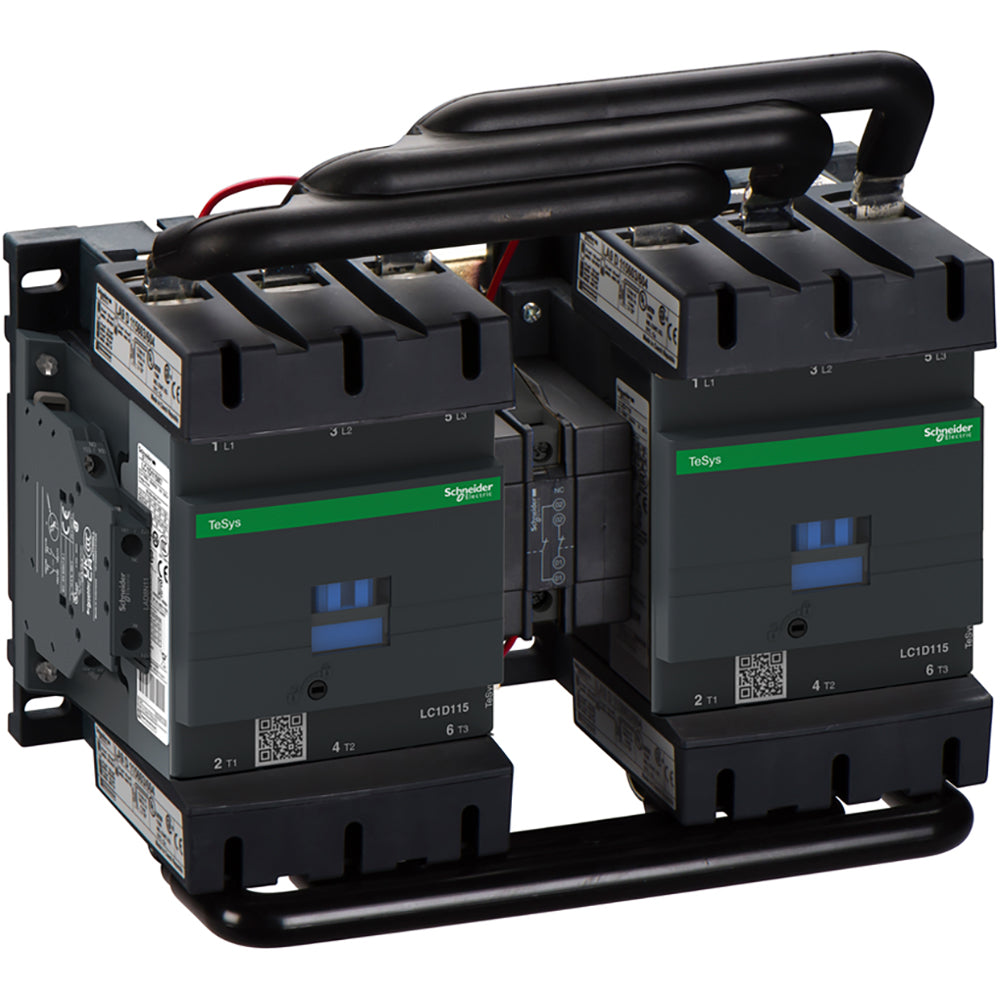

LC2D115G7 - Schneider Electric 115A 3-Pole TeSys D Reversing Contactor 575VAC 120V Coil

LC2D115G7

LC2D115G7 is a Schneider Electric 3-pole TeSys D reversing contactor designed for motor control applications up to 115A and 575VAC with a 120V 50/60Hz AC coil.This reversing contactor supports motor loads up to 55kW at 400V and features 3 normally open poles (3NO). It is rated for AC-3 duty at 115A and 1000V, suitable for industrial motor control with IEC compliance. The device includes screw clamp terminals for control circuits and offers electrical interlocking between contactors for safety. It is compact for easy installation and maintenance, reducing energy consumption and heat dissipation in control panels.

• Amperage: 115A AC-3
• Voltage: 575VAC power circuit, 120V AC coil (50/60Hz)
• Poles: 3 poles (3NO)
• Interrupt Rating: IEC 60947-4-1 compliant
• Series/Frame: TeSys D (Deca)
• Mounting Type: Panel mount with screw clamp terminals
• Trip Unit: Not applicable (contactor type)
• Certifications: IEC, UL, CSA
• Motor Power Rating: Up to 55kW at 400V
• Control Circuit Voltage: 120V AC 50/60Hz
• Electrical Interlocking: Yes, for safety in reversing applications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys D IEC Contactor includes a 120 VAC coil.

Specifications

• Part Number: LC2D115G7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Type : TeSys Deca Series
• Voltage : 600
• Amperage : 250
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120
• Frequency : AC 50/60 Hz

Product Data

• UPC : 33891105315
• GTIN : 3389110531510
• Country of Origin : Czechia
• Dimensions : 266 mm x 158 mm
• Weight : 14.3
• Certification : CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, BV, CCC, CSA, DNV, GL, RINA, UL, EAC, UKCA, TH IEC 60068-2-30
