LC2D09G7 - Schneider Electric TeSys Deca 9A 120V AC 3-Pole Reversing Contactor IEC Frame

LC2D09G7

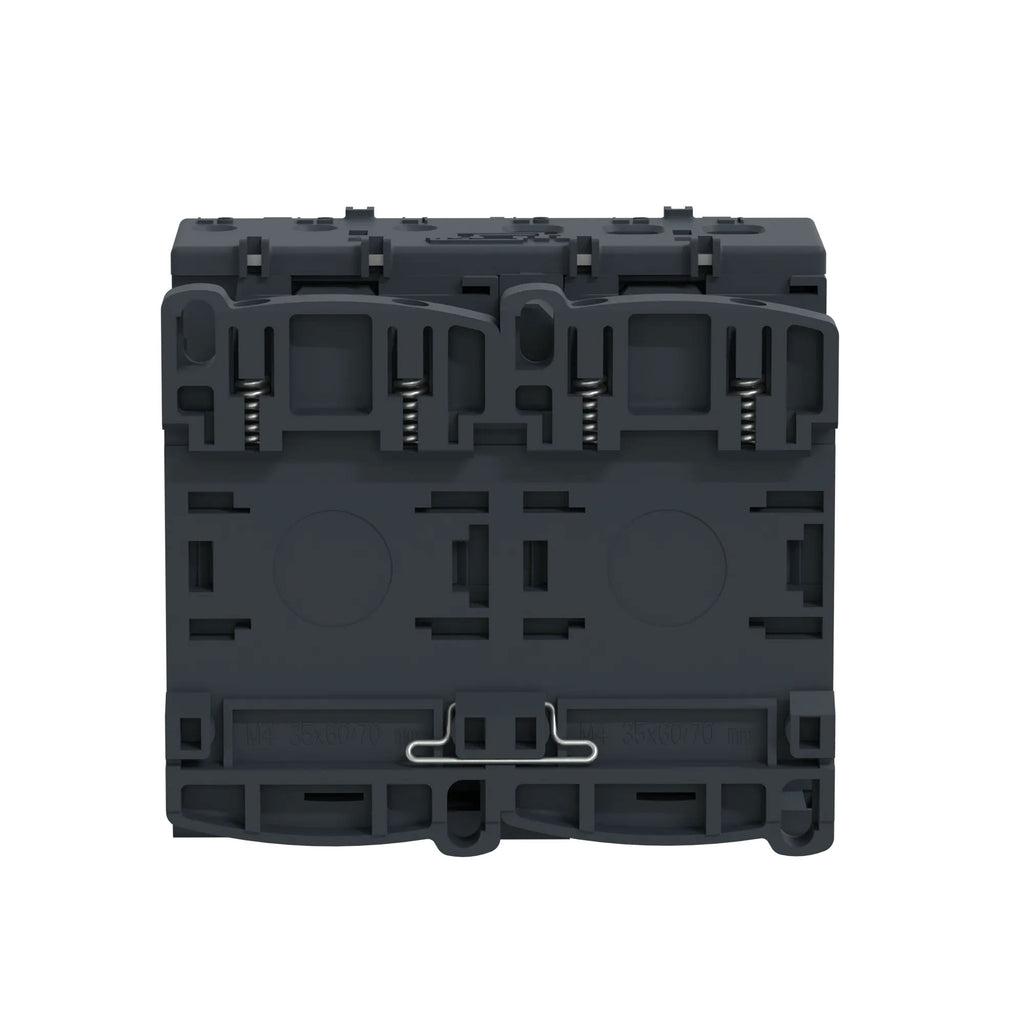

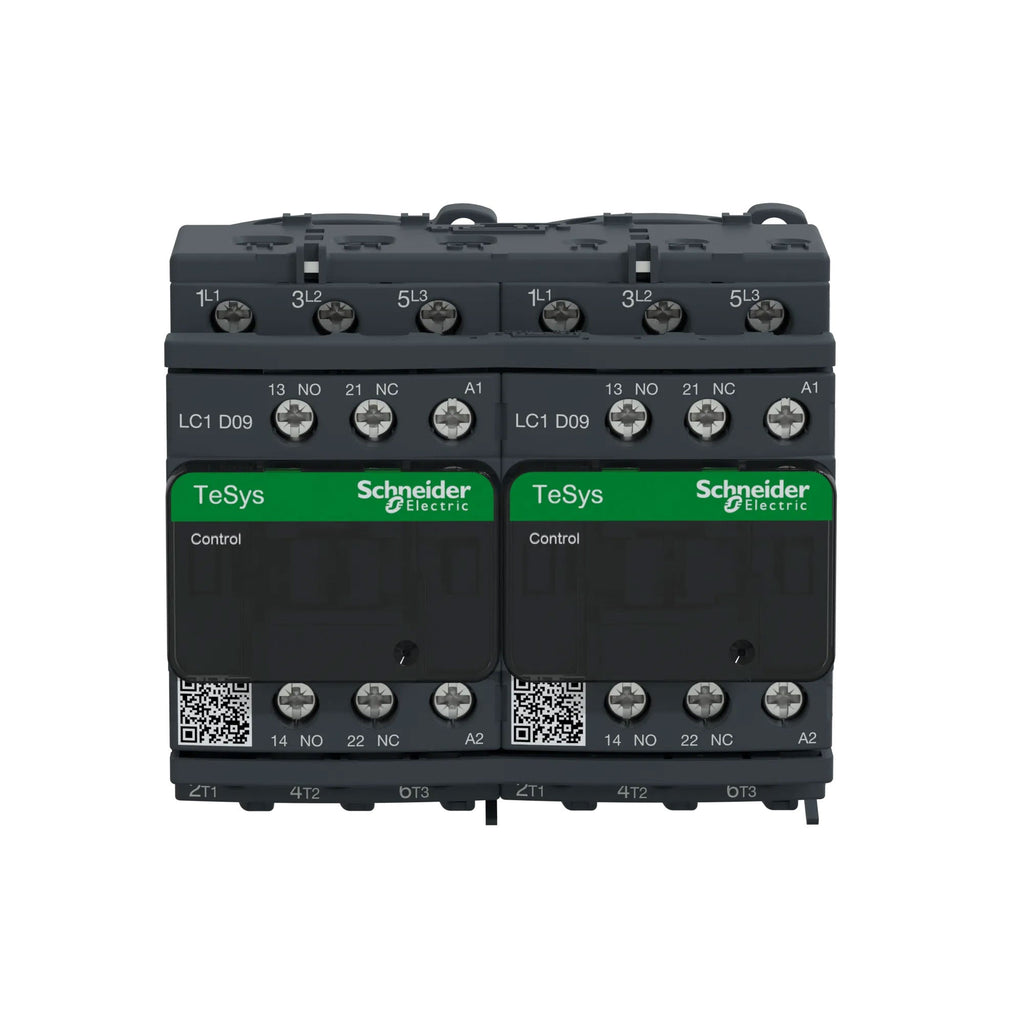

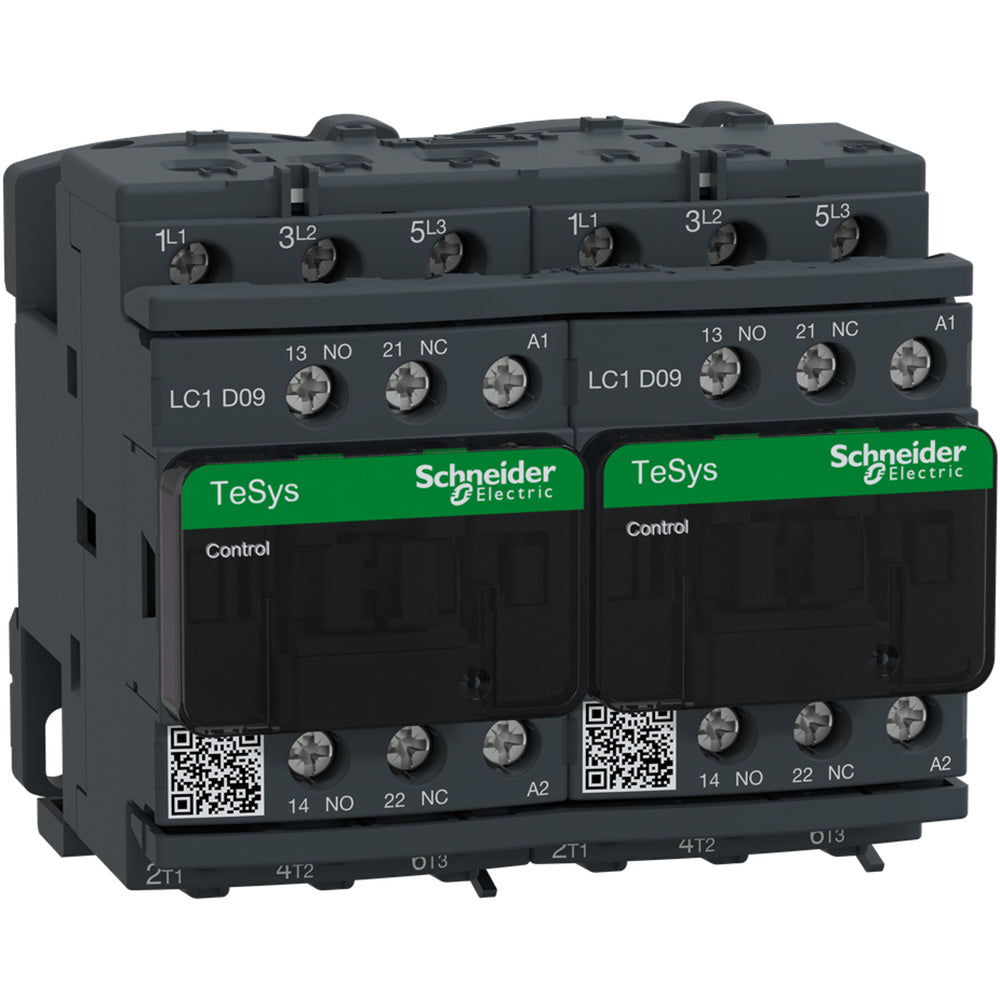

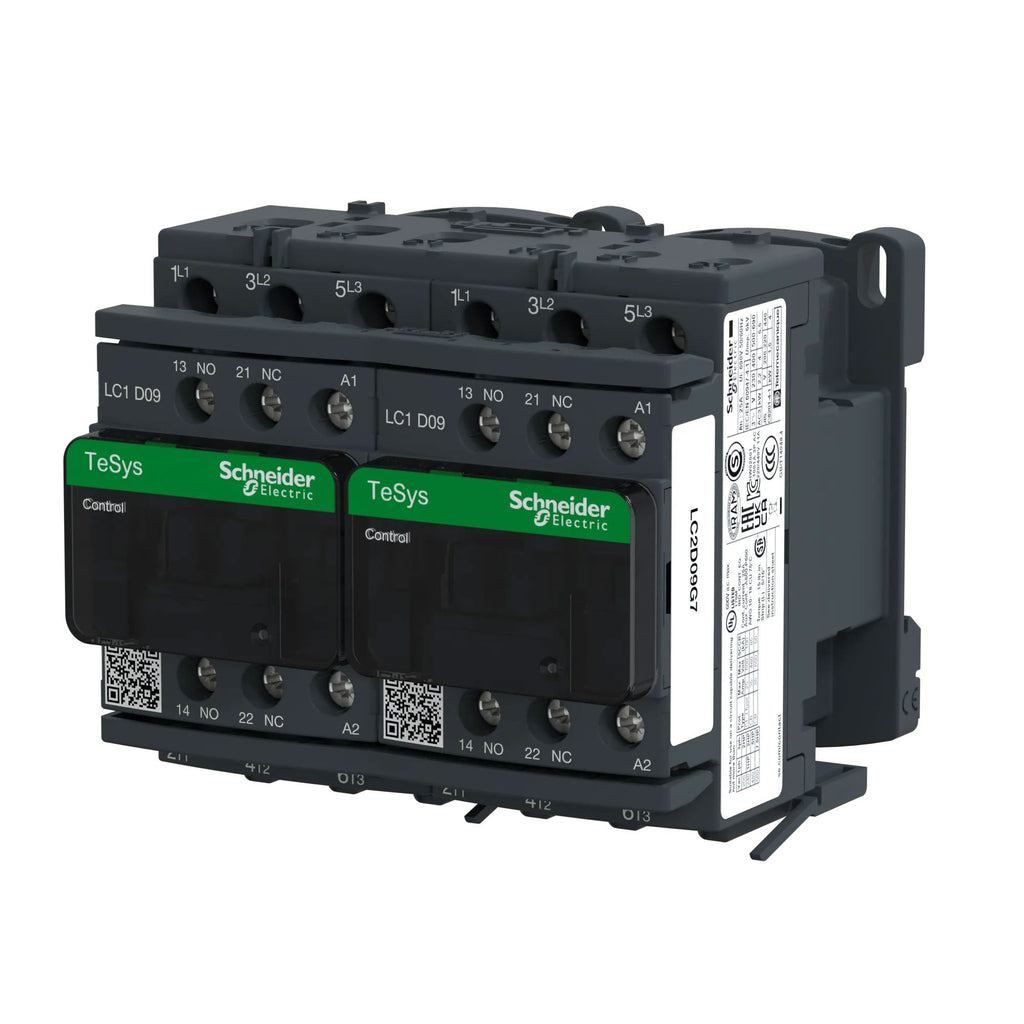

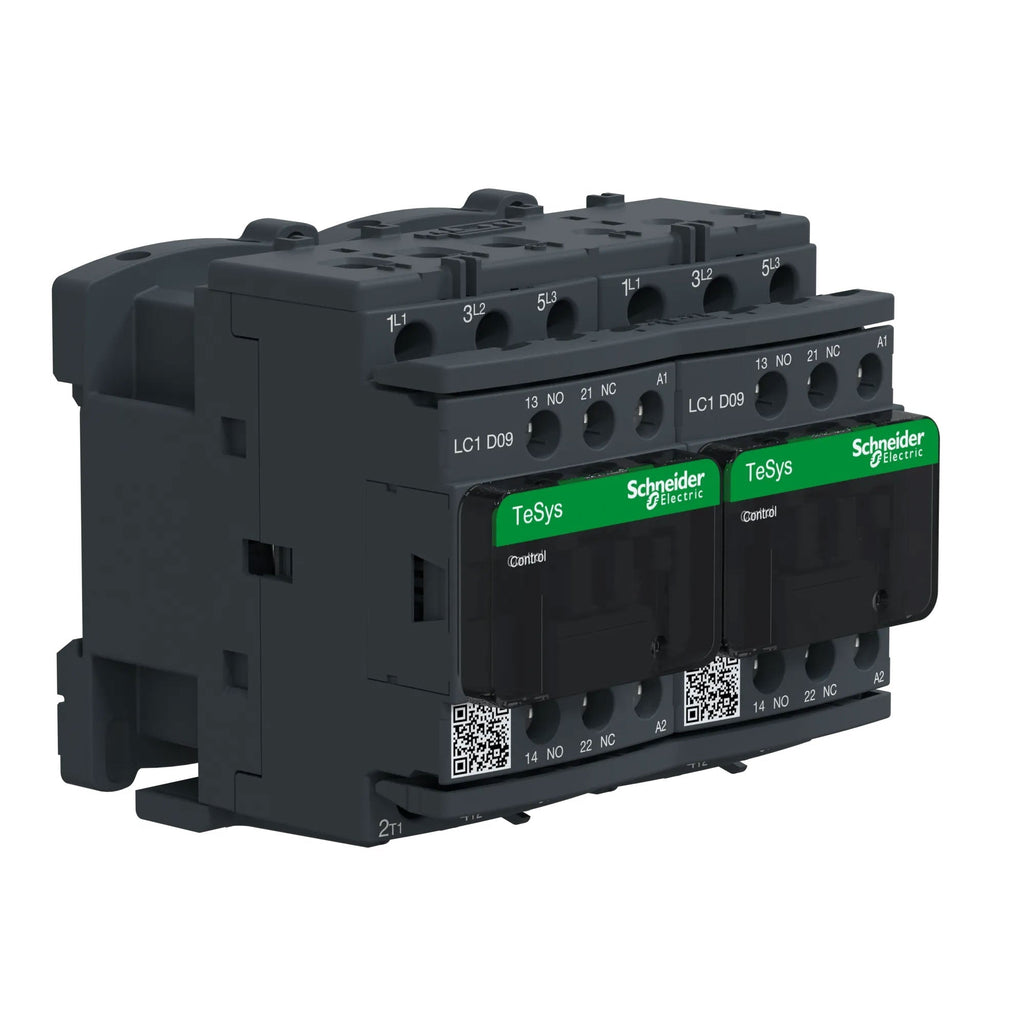

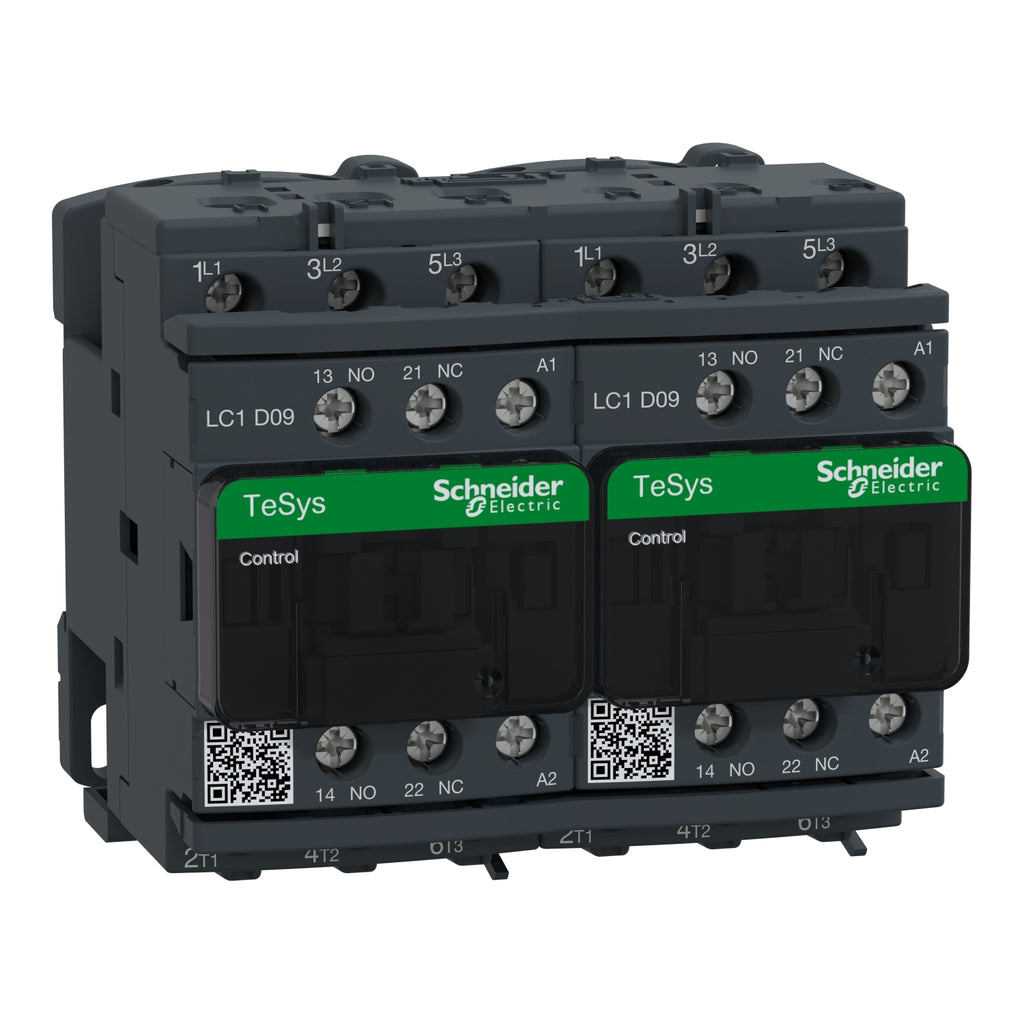

LC2D09G7 is a Schneider Electric TeSys Deca reversing contactor designed for motor control applications with a 9 amp inductive current rating and 120V AC coil voltage.This 3-pole IEC contactor features a 3NO auxiliary contact configuration, supports up to 5 HP at 480 VAC for 3-phase motors, and includes a mechanical interlock for reversing operation. It is suitable for industrial and HVAC use, complies with IEC 60947 standards, and is UL, CSA, ASE, BV, DNV, RINA, and RRS certified. The contactor uses screw clamp terminals and is designed for DIN rail mounting.

Key Specifications
• Amperage: 9 A (AC-3)
• Voltage: 120 V AC coil, power circuit up to 690 V AC
• Poles: 3
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting Type: DIN rail
• Interrupt Rating: IEC 60947 compliant
• Frame/Series: TeSys Deca LC2D
• Trip Unit: Mechanical interlock for reversing
• Certifications: UL, CSA, ASE, BV, DNV, RINA, RRS
• Horsepower Ratings: 5 HP at 460 VAC 3-phase
• Terminal Type: Screw clamp

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This TeSys D IEC Contactor includes a 120 VAC coil.

Specifications

• Part Number: LC2D09G7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 2 hp HP @ 3 Phase - 240V 2 hp HP @ 3 Phase - 480V 5 hp
• Aux Contacts : 3 NO
• Full Load Amps : Full Load Amps-Inductive 9A Full Load Amps-Resistive 25A
• Frequency : 50/60 Hz

Product Data

• UPC : 038911038341
• GTIN : 03389110383416
• Country of Origin : Indonesia
• Dimensions : 3.54 in x 3.03 in
• Weight : 1.759
• Certification : BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
