LC2D09F7 - Schneider Electric TeSys D Reversing Contactor 9A 3-Pole 110V AC Coil IEC 60947-4-1

LC2D09F7

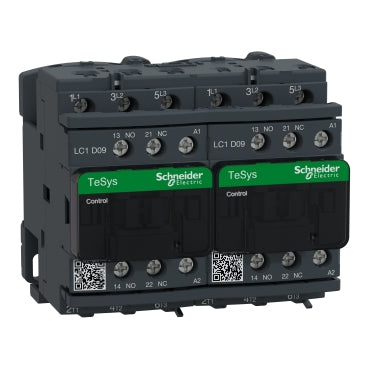

LC2D09F7 is a Schneider Electric TeSys D reversing contactor designed for motor control applications with a 9 amp rating and 3 poles.This reversing contactor features a 110V 50/60Hz AC coil and is preassembled with a reversing power busbar. It supports motor control up to 9A AC-3 utilization category and is rated for voltages up to 690V IEC 60947-4-1 standards, with UL and CSA certifications for 600V. The device includes 3 normally open contacts and is suitable for mounting on standard 35mm DIN rails. It offers IP2 finger-safe terminals, mechanical and electrical interlocking, and easy installation with color-coded wiring and snap-on mounting.

Key Specifications
• Amperage: 9 A AC-3
• Voltage Rating: Up to 690 V IEC, 600 V UL/CSA
• Poles: 3 poles (3 NO)
• Coil Voltage: 110 V AC 50/60 Hz
• Mounting Type: DIN rail compatible
• Interrupt Rating: IEC 60947-4-1 compliant
• Series/Frame: TeSys D
• Trip Unit: Not applicable (contactor)
• Certifications: IEC, UL, CSA
• Auxiliary Contacts: 2 NO + 2 NC base mounted (via LC1D09F7 components)
• Safety: IP2 finger-safe terminals, mechanical interlock
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This TeSys D IEC Contactor includes a 110 VAC coil.




Specifications

• Part Number: LC2D09F7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 25
• Poles : 3
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 110
• Coil Voltage Minimum : 110
• Frequency : AC 50/60 Hz



Product Data

• UPC : 785901207375
• GTIN : 03389110383386
• Country of Origin : Indonesia
• Dimensions : 90 mm x 77 mm
• Weight : 1.786
• Certification : CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30
